USED 1997 AMADA RG-50

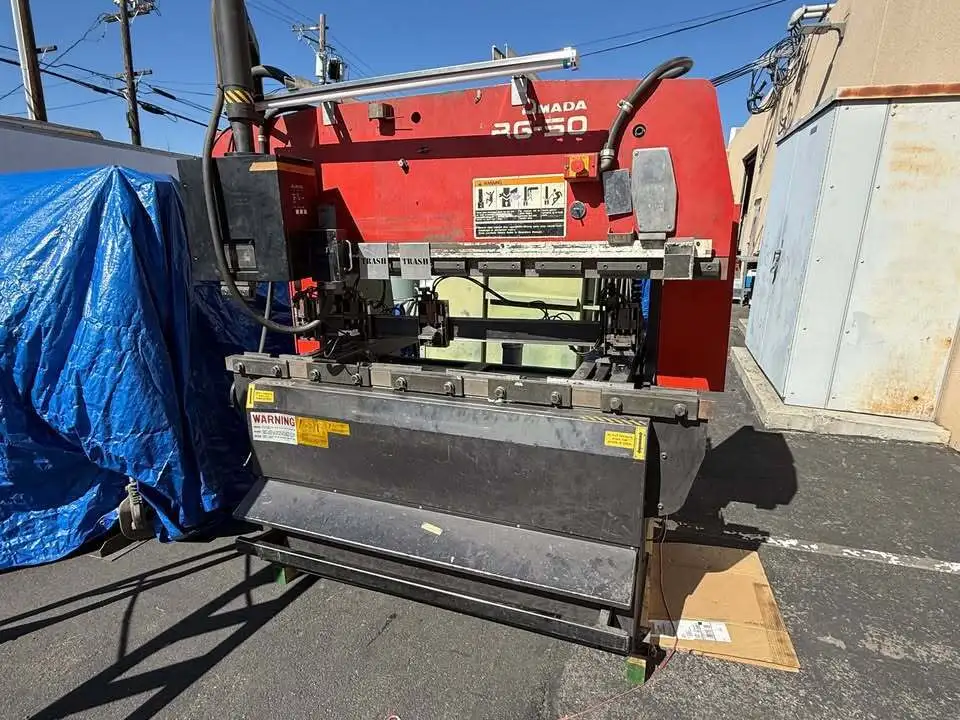

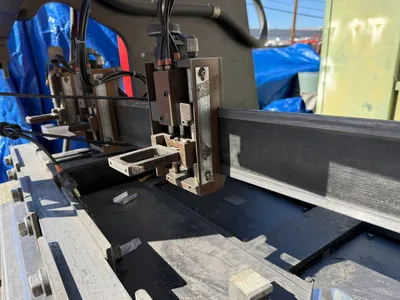

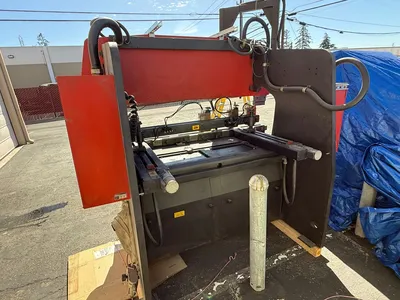

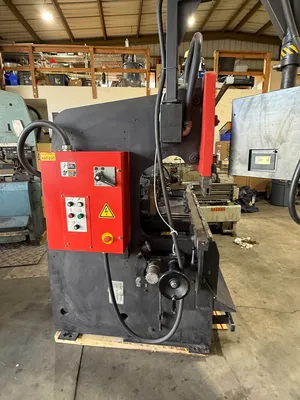

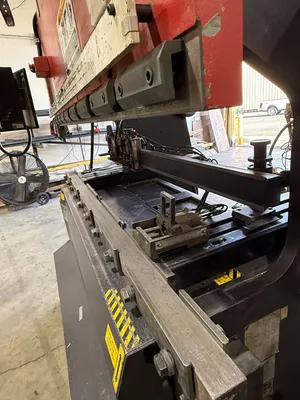

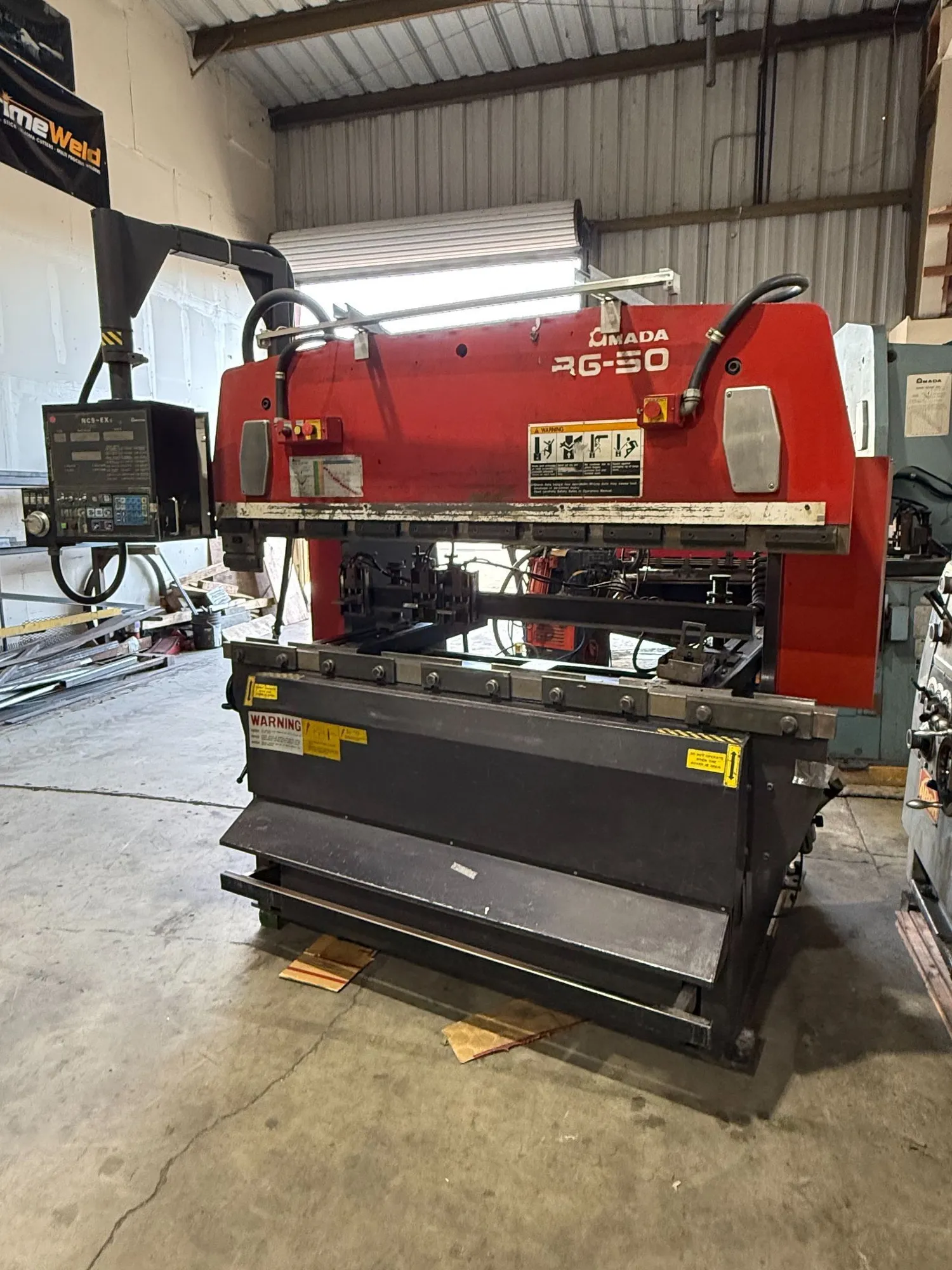

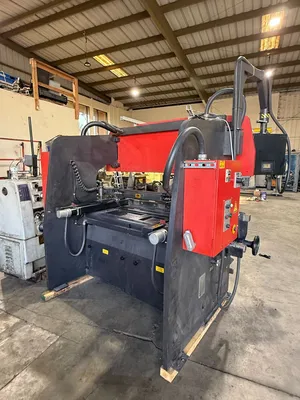

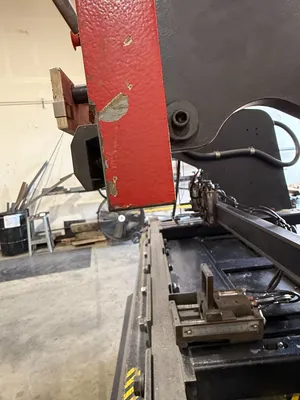

Amada RG-50 hydraulic press brake, 50-ton capacity, CNC-controlled with back gauge.

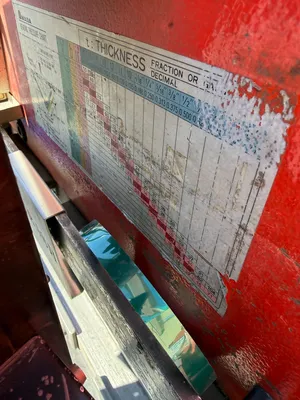

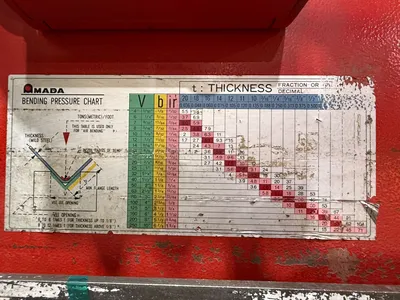

This machine can bend up to 3/16" mild steel across the full 82" bed, or up to about 1/2" on a narrow 12" wide piece. For stainless, figure about 1/8" full width and up to 5/16" narrow. For aluminum, up to 3/8" full width and up to 1" narrow. These are tonnage-based estimates, actual max thickness depends on the V-die tooling on hand, wider dies allow thicker material but need to be in the shop's inventory.

General specs:
- Capacity: 55 tons

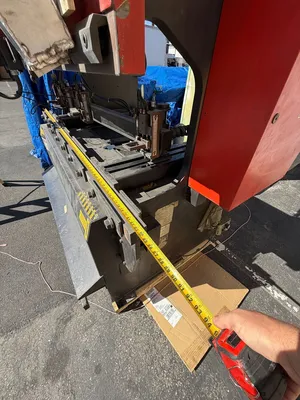

- Bending length: 82"
- Distance between uprights: 59.9"
- Throat depth: 15.76"
- Stroke: 3.9"
- Open height: 14.58"

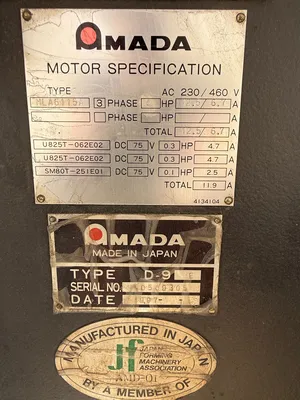

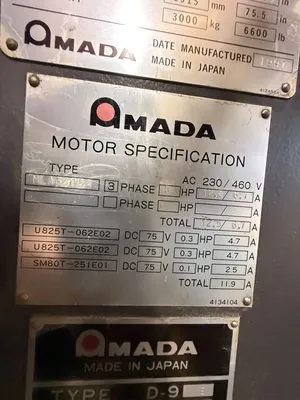

- Main motor: 5 HP

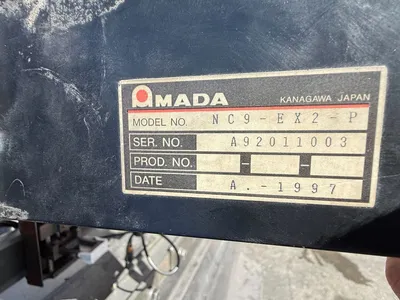

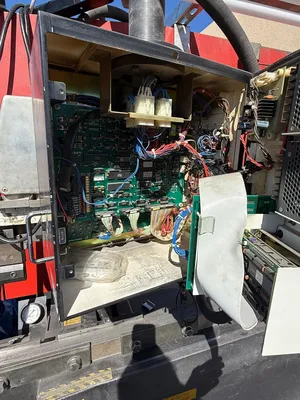

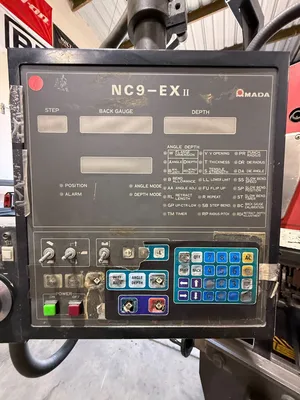

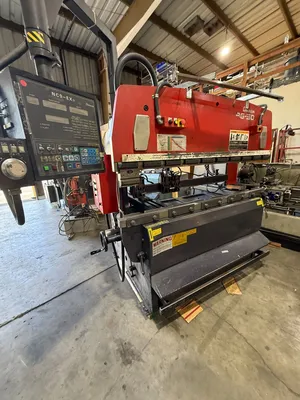

- Control: NC9-EXII CNC
- Weight: approximately 6,600 lbs

Happy to send more photos or set up an in-person inspection. Let me know if you have any questions.
