USED OKK MCV-660

Machine Specifications
OKK MCV-660 CNC VERTICAL MACHINING CENTER

Manufacturer: OKK Corporation
Model: MCV-660
Machine Serial Number: 915
Manufacturing Number: MA66062
Country of Manufacture: Japan
Machine Type: CNC Vertical Machining Center
Control: GE Fanuc Series 16-M
Number of Axes: 3
Condition: To Be Confirmed
Year: To Be Confirmed

GENERAL DESCRIPTION

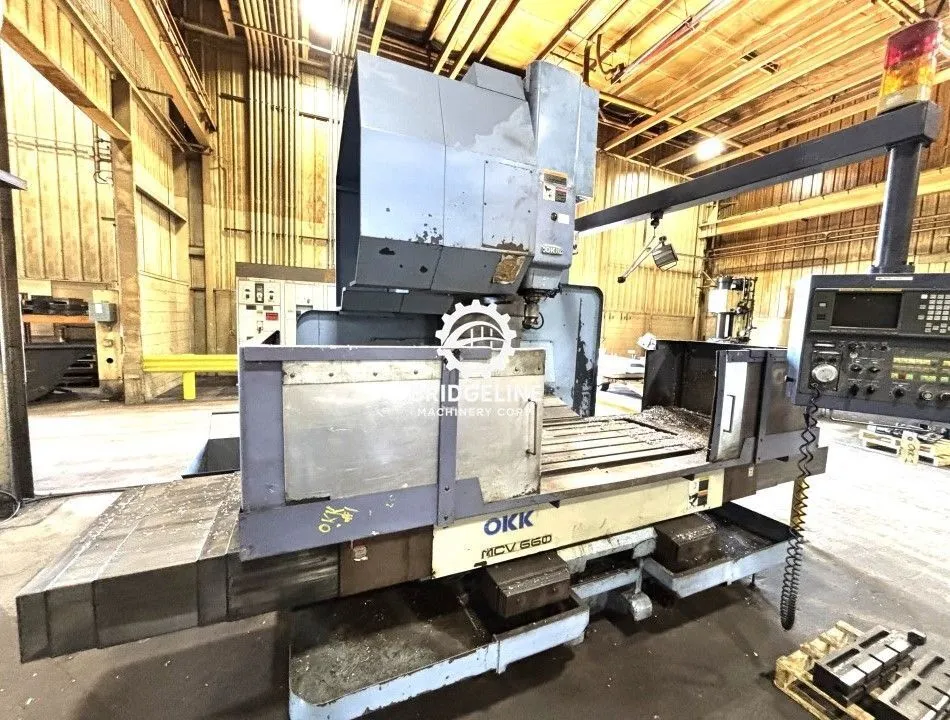

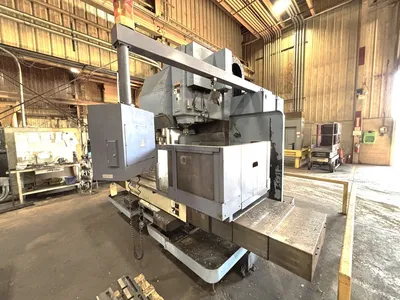

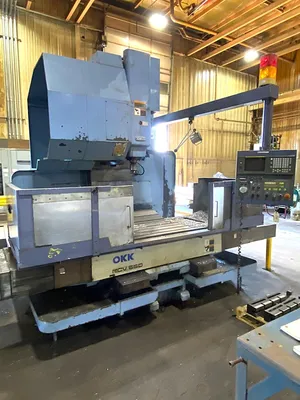

Heavy-duty OKK MCV-660 CNC Vertical Machining Center featuring a GE Fanuc Series 16-M CNC control, large 67" x 25.5" worktable, approximately 60" of X-axis travel and a CAT 50 spindle.

The MCV-660 was designed for large-workpiece machining and heavy material removal. Its rigid construction, substantial table capacity and wide working envelope make it suitable for general machining, mold and die work, aerospace components, fabrication support and other demanding milling applications.

SPECIFICATIONS

TABLE

Table Size: Approximately 67" x 25.5"
Maximum Table Load: Approximately 4,409 lbs.

TRAVELS

X-Axis Travel: Approximately 59.8"
Y-Axis Travel: Approximately 26"
Z-Axis Travel: Approximately 25.5"

SPINDLE

Maximum Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Motor: Approximately 25 HP
Spindle Nose to Table Surface: Approximately 7.9" minimum to 33.5" maximum

FEED RATES

Rapid Traverse, X and Y Axes: Approximately 787 IPM
Rapid Traverse, Z Axis: Approximately 630 IPM
Maximum Cutting Feed Rate: Approximately 394 IPM

AUTOMATIC TOOL CHANGER

Tool-Changer Capacity: To Be Confirmed
Maximum Tool Diameter: To Be Confirmed
Maximum Tool Length: To Be Confirmed
Maximum Tool Weight: To Be Confirmed

EQUIPPED WITH

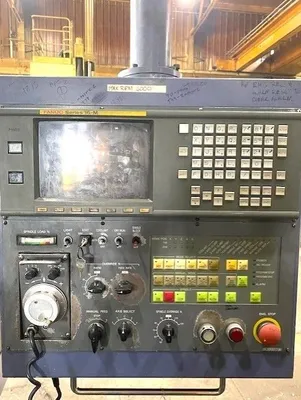

GE Fanuc Series 16-M CNC control
CAT 50 spindle
6,000 RPM maximum spindle speed
Automatic tool changer
Large-capacity worktable
Heavy-duty box-way construction
Manual pulse generator
Machine guarding
Coolant system
Work light

APPROXIMATE MACHINE WEIGHT

Approximately 26,500 lbs. - Subject to Verification

MACHINE DIMENSIONS

To Be Confirmed

ADDITIONAL INFORMATION

The machine is currently installed on a plant floor. Operating condition, available tooling, manuals, maintenance records and accessories are subject to confirmation.

Disclaimer:
Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
