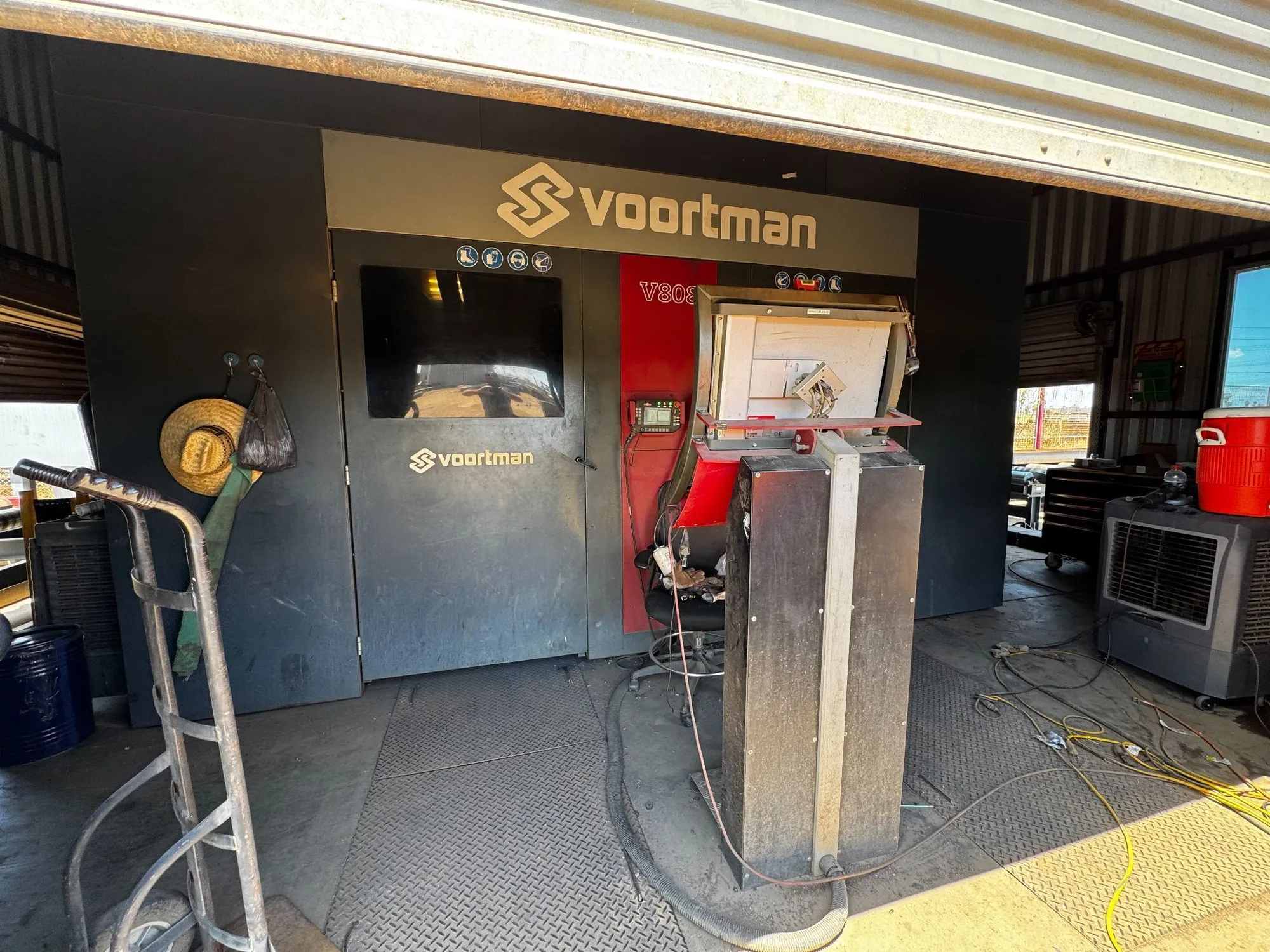

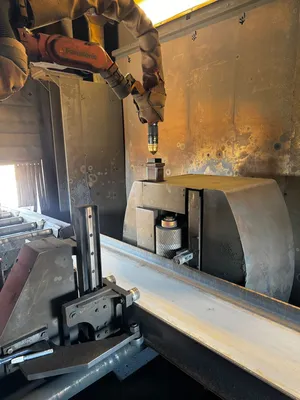

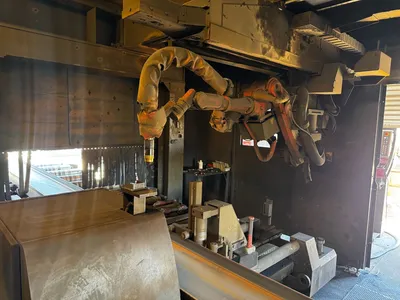

USED 2018 VOORTMAN V808

California, United States
378Listings|25Followers
Overview
Beam Coping Machines

Available Immediately. Please note: sold “as-is, where-is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs

Specs
Max Profile Width
49"
1,244.6 mm
Minimum Profile Width
2.375"
60.325 mm
Max Profile Height
20"
508 mm
Minimum Profile Height
0.375"
9.525 mm
Layout Marking
Yes
Yes
Power Source
Hypertherm HPR260XD
Hypertherm HPR260XD
Amps
260
260
Bevel
Yes
Yes
Material Thickness
2.5"
63.5 mm
In-feed Conveyors
60'
18,288 mm
In-feed Transfers
16'
4,876.8 mm
Out-Feed Conveyors
60'
18,288 mm
Out-Feed Transfers
16'
4,876.8 mm
Dust Collector
Donaldson DFPRO 8 Downflow dust extraction unit.
Donaldson DFPRO 8 Downflow dust extraction unit.
Control
CNC (VACAM Control)
CNC (VACAM Control)
Equipped With

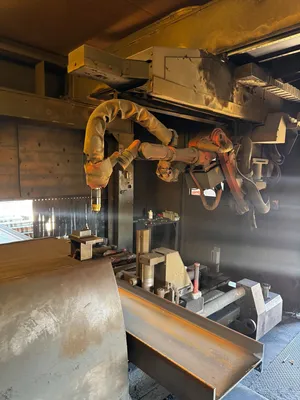

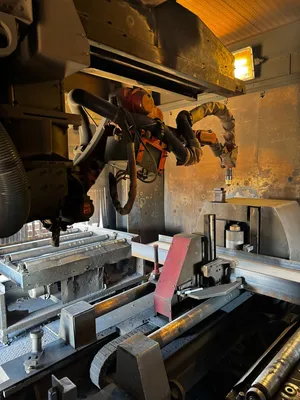

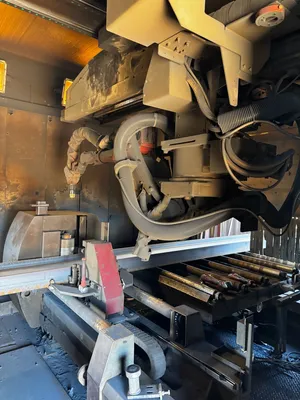

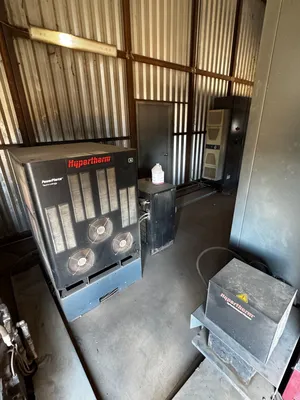

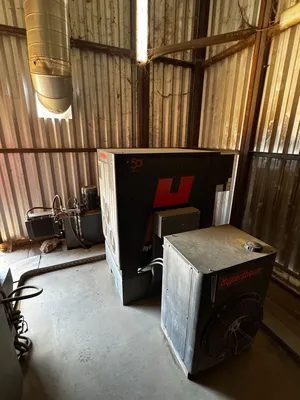

● Hypertherm HPR260XD

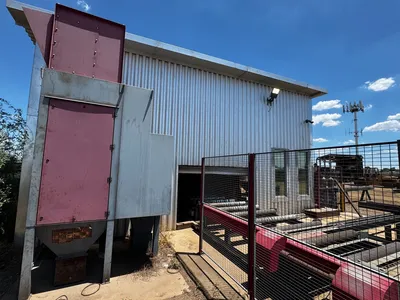

● Donaldson DFPRO 8 Downflow dust extraction unit.

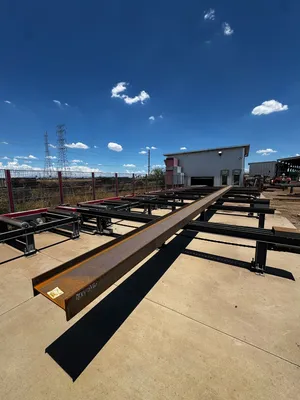

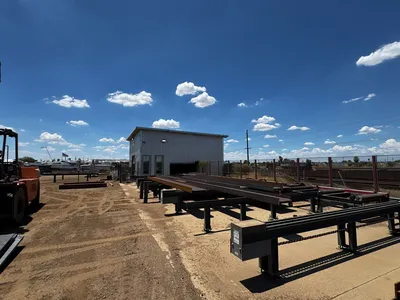

● Infeed Roller Conveyor (RC1):
○ Lengths up to 61 ft (min. 8-1/4 ft), Weight: 500 lbs/ft.
○ Width: 50", Roll Diameter: 6-1/4".

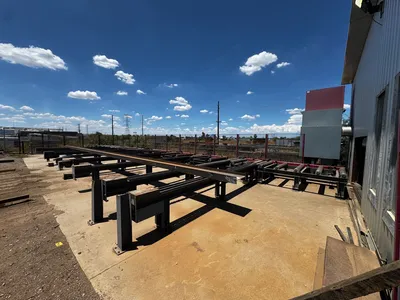

● One-Way Infeed Cross Transport (CT1):
○ Equipped with mechanical drag-dogs.
○ Length: 13 ft with 4 supports.
○ Fully loaded transport capacity: Profiles up to 500 lbs/ft.

● Outfeed Roller Conveyor (RC2):
○ Lengths up to 60 ft (min. 4-1/2 ft), Weight: 500 lbs/ft.
○ Width: 50", Roll Diameter: 6-1/4".

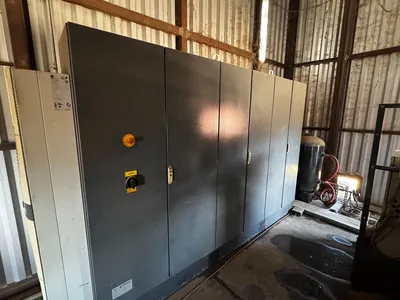

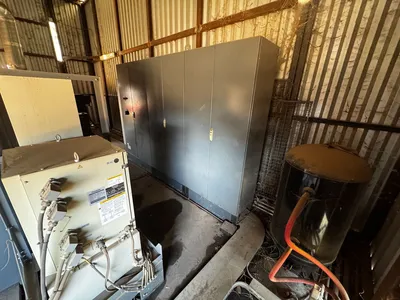

● Air Conditioning for Switch Panel:
○ Designed to maintain optimal operation in ambient air temperatures up to 131°F.

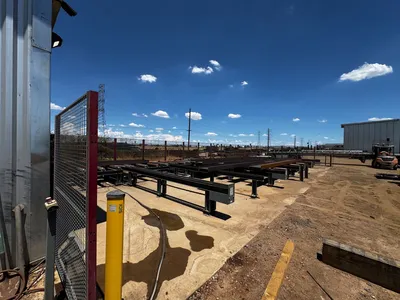

● Safety Devices:
○ Safety fencing and integrated light curtain systems.
