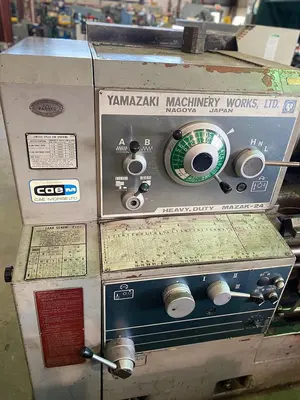

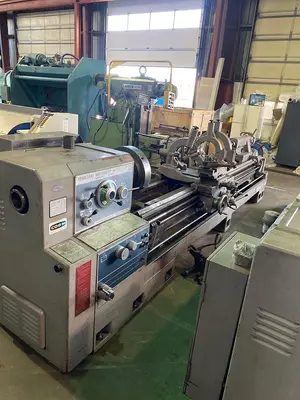

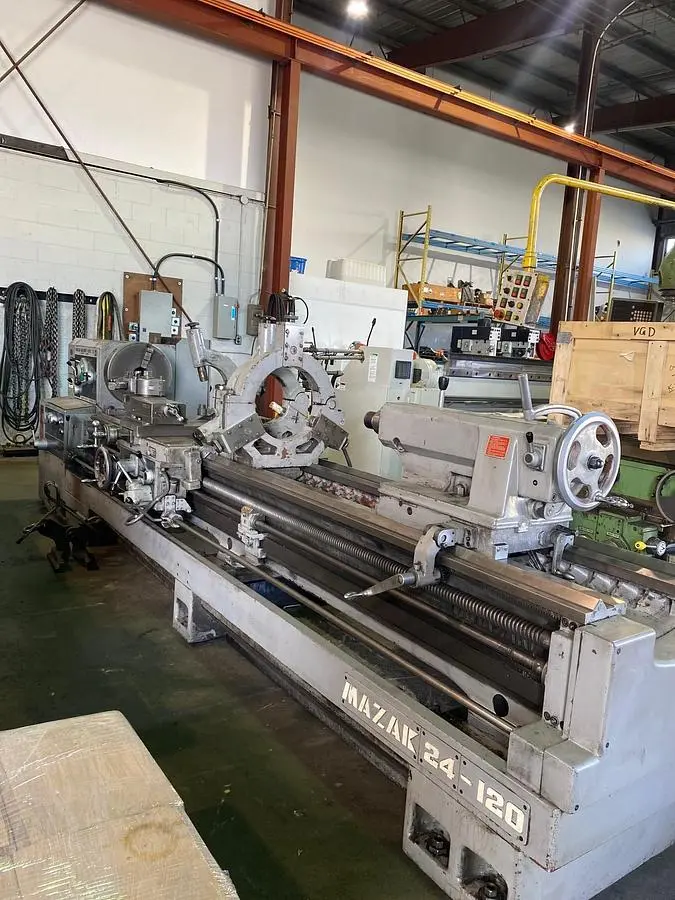

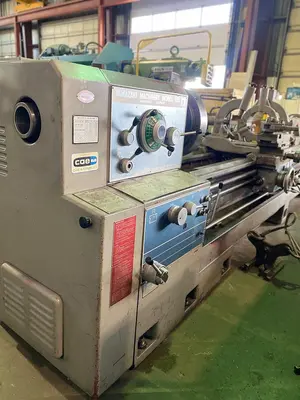

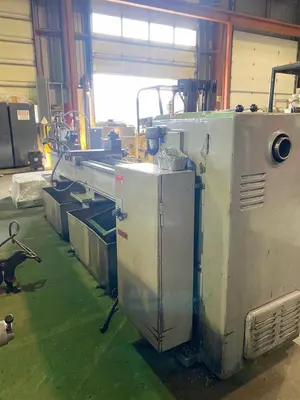

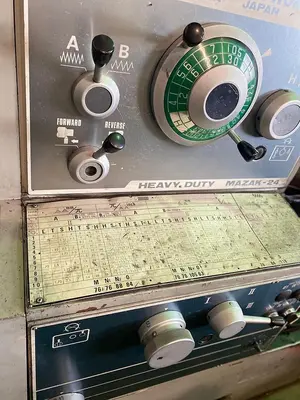

USED MAZAK 24 X 120

SPECIFICATIONS:
Bed Width:                                                     - 15-3/4"
Total Travel of Top Slide:                                - 7-1/2"
Swing Over Bed:                                             - 24"
Swing Over Cross Slide:                                  - 14 1/2"
Swing in Gap:                                                  - 13-3/8"
Gap Width in Front of Face Plate:                  - 43 1/2"
Height of Centre’s from Leg Bottom:             - 42"
Distance Between centres:                             - 120"
Number of Spindle Speeds:                            - 16
Spindle Bore:                                                  - 4-1/16"
Type of Spindle Nose:                                     - D1-11
Taper of Spindle Bore & Center:                    - MT No. 7 x No. 5
Range of Spindle Speeds:                               - 12 - 1200 RPM
Range of Inch Threads:                                   - 4 PTI: 2-72,
Range of Metric Threads:                               - 6mm: 0.2 ~ 14
Number of Feeds:                                           - 36
Range of Longitudinal Feeds:                         - Inch: 0.035~0.2695 (0.0014"~0.039")
Range of Cross Feeds:                                     - 1/2 of Longitudinal Feeds
Tailstock Quill Diameter:                                - 2-15/16"
Total Travel of Tailstock Quill:                        - 7"
Taper in Tailstock Quill:                                  - MT#6
Spindle Drive Motor:                                      - 20HP, 220/440 Volt
Coolant Pump:                                                - 1/8
Weight of Machine                                         10,890 lbs.
Floor Space                                                     203 5/8” x 54 5/16”

COMPLETE WITH:
·       18” 3-Jaw Chuck
·       Taper Attachment
·       4 Way Tool Post
·       Splash Guard
·       Steady Rest 13” & 9”
·       18” 4 Jaw
·       Coolant
