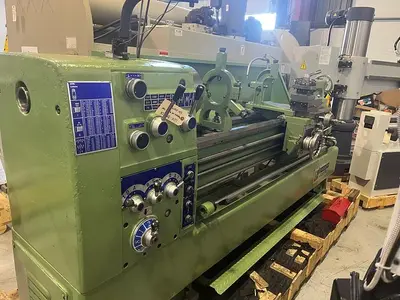

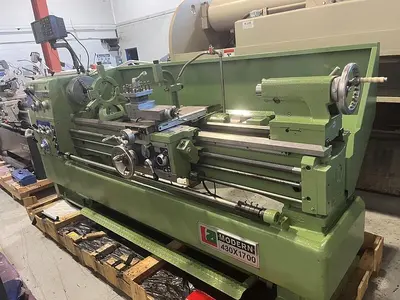

USED LINMAC 430 X 1700

SPECIFICATIONS:
Bed Width: - 12"
Swing Over Bed: - 17"
Swing in Gap: - 24"
Distance Between Centers: - 67"
Number of Spindle Speeds: - 12
Spindle Bore: - 2-1/4"
Range of Spindle Speeds: - 35-2000 RPM
Number of Feeds: - 36
Spindle Drive Motor: - 7 ½ HP 220/440/575V 3PH
Coolant Pump: - 1/8 HP
Weight: - 3,960 Lbs.
Length/width/height - 114”/39”/55”
STANDARD EQUIPMENT:
4 Jaw Chuck-12" Taiwan, 3 Jaw Chuck-10" Taiwan, 14" Face Plate, Leveling Platte & Screws, Service Kit, Steady Rest, Coolant, Follow Rest, CSA Electrics, Splash Guard, Halogen Work Light Taper Attachment, Acurite 2 Axis D.R.O.
