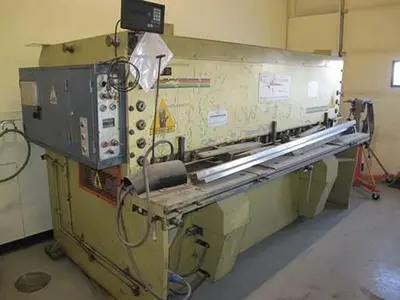

FARINA MODEL 255 HYDRAULIC SHEAR
Overview
STANDARD EQUIPMENT:
Optimized cutting angle for minimized distortion
Heavy duty ST44 A1 steel construction and stress relieved frame
One piece honed and chrome plated double acting powerful cylinders
High quality top and bottom blades. 4 edge
Easily adjustable blade gap adjustment
Cutting length adjustment allowing stroke adjustment for shorter sheets and shorten the cutting time
Sheet support system
Two (2) 40” front support arms with flip stop & tilting stop
Foot pedal available for single or continuous cutting
One (1) 5’ Squaring Arm with scale & T-slot & tilting stop
Cutting capacity (45 kg/mm²):MS 3/16” -1/4”
Stroke per minute: Min 1/min: 20-40
PRICE OF MACHINE, F.O.B. PORT COQUITLAM, B.C.
Specs
Cutting length: 8’6”
Cutting angle: 30°
Number of hold downs: 12
Pressure: 14 ton
Main motor: 10HP, 440 Volt,3PH
Power backgauge travel: 20”
Number of sheet support arms: 2
Bed width: 16”
Bed height: 34”
Width: 62”
Length: 117’
Height: 117”
Weight: 16,000 lbs.
