MODERN LA 660 x 3000 HEAVY DUTY HIGH SPEED PRECISION LATHE
Overview

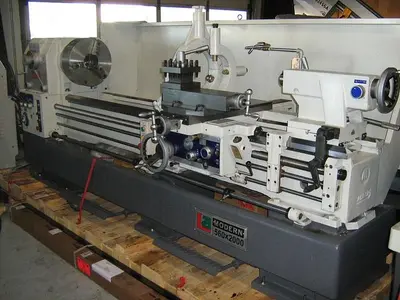

LA 560 x 2000 shown
Range of Inch Threads: – 4 PTI: 2-72,
Range of Metric Threads: – 6mm: 0.2 ~ 14
Range of Longitudinal Feeds: – Inch: 0.035~0.98 (0.0014″~0.039″)
STANDARD EQUIPMENT:
Center Sleeve
Dead Center
Levelling Screws
Service Kit
COMPLETE WITH:
12” 3-Jaw Chuck
Taper Attachment
4 Way Tool Post
Splash Guard
Steady Rest 10”
Coolant
Accurate 2 Axis Digital Readout
Specs
Bed width: 15-3/4″
Total travel of top slide: 7-1/2″
Swing over bed: 22″
Swing over cross slide: 13″
Swing in gap: 30-7/8″
Gap width in front of face plate: 10-5/8″
Height of centers from leg bottom: 42″
Distance between centers: 120″
Number of spindle speeds: 12
Spindle bore: 4-1/16″
Type of spindle nose: D1-11
Taper of spindle bore & center: MT No. 7 x No. 5
Range of spindle speeds: 13 – 1200 RPM
Number of feeds: 36
Range of cross feeds: 1/2 of Longitudinal Feeds
Tailstock quill diameter: 2-15/16″
Total travel of tailstock quill: 7″
Taper in tailstock quill: MT#5
Spindle drive motor: 15HP, 220/440 Volt
Coolant pump: 1/8
