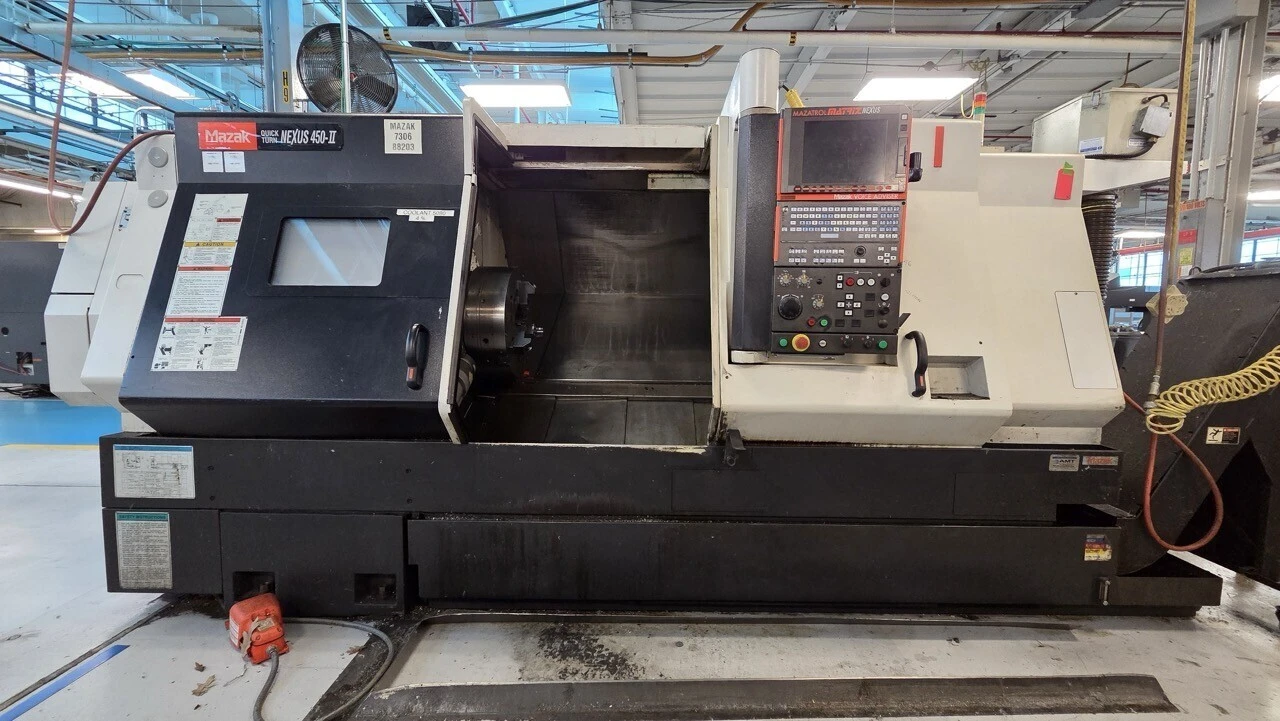

USED 2006 MAZAK NEXUS QUICK TURN 450-II
Overview
Used CNC Lathe: 6.5" bar capacity, 19" chuck, 50 HP, 2,000 RPM. Features Mazatrol Matrix CNC control, chip conveyor, tool setter, and mist collector. 24-station turret, max turning dia 22.83", max length 48". 19,000 lbs, used.
Specs
Bar Capacity: 6.5″
Chuck Size: 19″
Spindle Speed: 2,000 RPM
Spindle Motor: 50 HP
X Axis Travel: 13.38″
Z Axis Travel: 42.12″
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 22.83″
Max Turning Length: 48″
Max Swing: 33.26″
Spindle Bore: 7″
Spindle Nose: A2-15
Maximum Diameter of Shaft Work: 18.25″
Maximum Distance Between Centers: 40″
Tailstock Center: MT#5
Tailstock Travel: 32.5″
Dimensions: 144″ x 90″ x 80″
Weight: 19,000 LBS
Equipped With
Mazatrol Matrix CNC Control
Chip Conveyor
Tailstock
Tool Setter
HP Coolant
Mist collector
