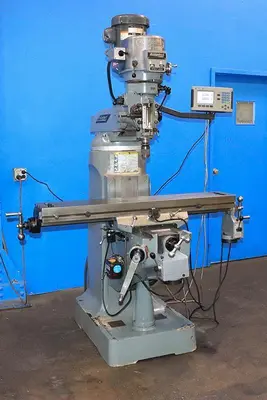

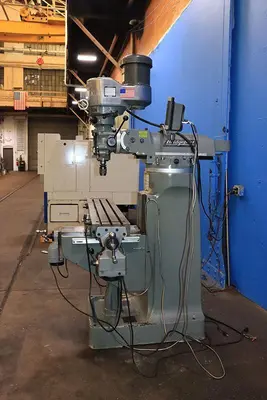

USED 2014 BRIDGEPORT SERIES 1

Equipped With

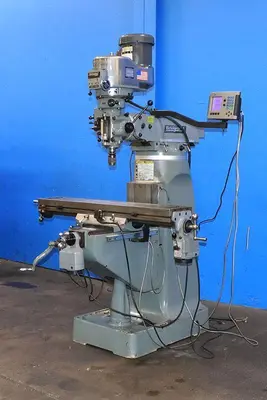

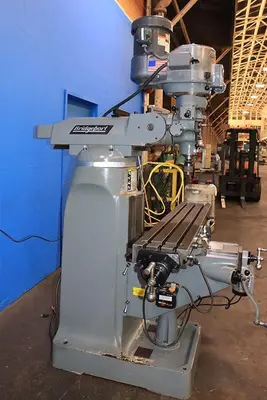

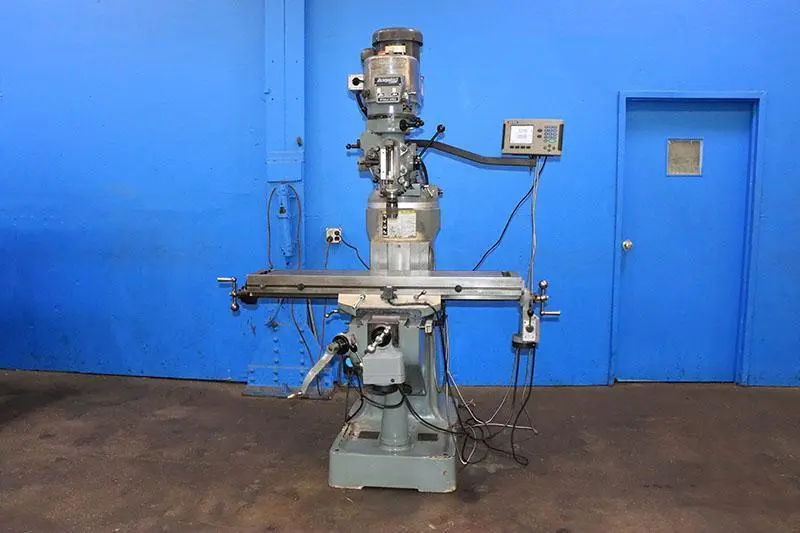

9" x 49" BRIDGEPORT.HARDINGE SERIES 1 VERTICAL MILL
New 2014
SPECIFICATIONS:

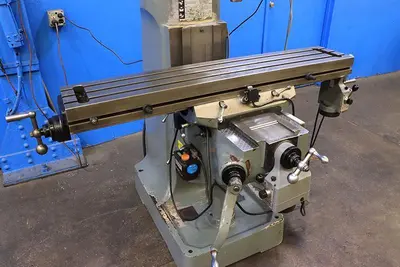

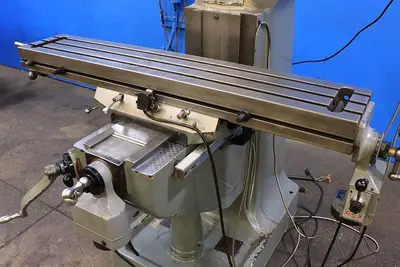

TABLE SIZE ........................ 9" X 49"
MAXIMUM WEIGHT OF WORKPIECE ....... 750 LBS
LONGITUDINAL TABLE TRAVEL ......... 36"
CROSS TRAVEL ...................... 12"
QUILL TRAVEL ...................... 5"
KNEE TRAVEL ....................... 16"
RAM TRAVEL ........................ 12"
MINIMUM / MAXIMUM THROAT DISTANCE . 6-3/4" / 18-3/4"
INFINITELY VARIABLE SPEED RANGE ... 60-4,200 RPM
SPINDLE TAPER ..................... R-8
QUILL TRAVEL ...................... 5"
QUILL FEEDS ....................... 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ................ 2,075 LBS

EQUIPPED WITH:
 - ACU-RITE TWO AXIS DIGITAL READOUT
 - SERVO POWER FEED FOR LONGITUDNAL TABLE TRAVEL
 - SERVO POWER FEED FOR CROSS TABLE TRAVEL

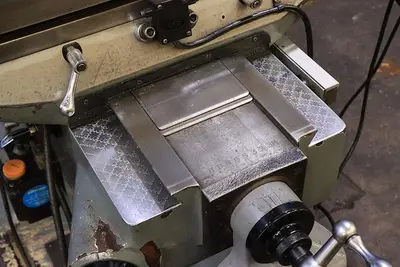

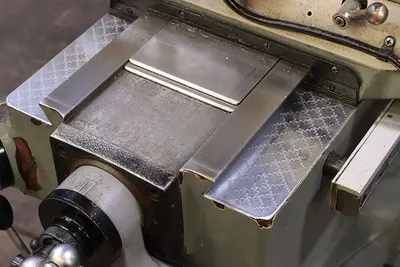

 - CHROME WAYS
 - BIJUR ONE SHOT LUBE

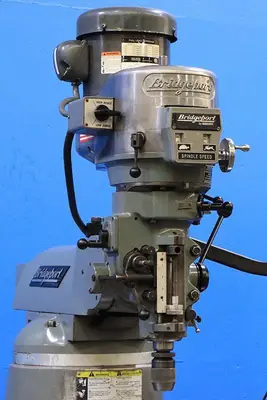

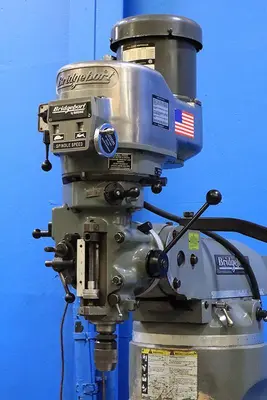

 - SERIES I VARIABLE SPEED MILLING HEAD
 - 2/3 HORSE POWER 60 CYCLE 208/230/460 VOLT, 3 PHASE MOTOR
