USED 2002 BRIDGEPORT SERIES 1

Equipped With

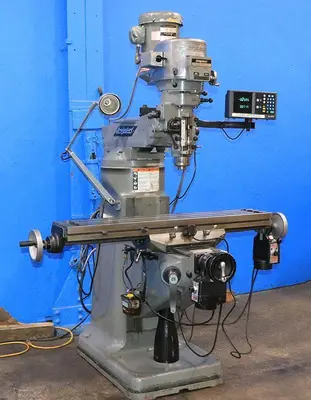

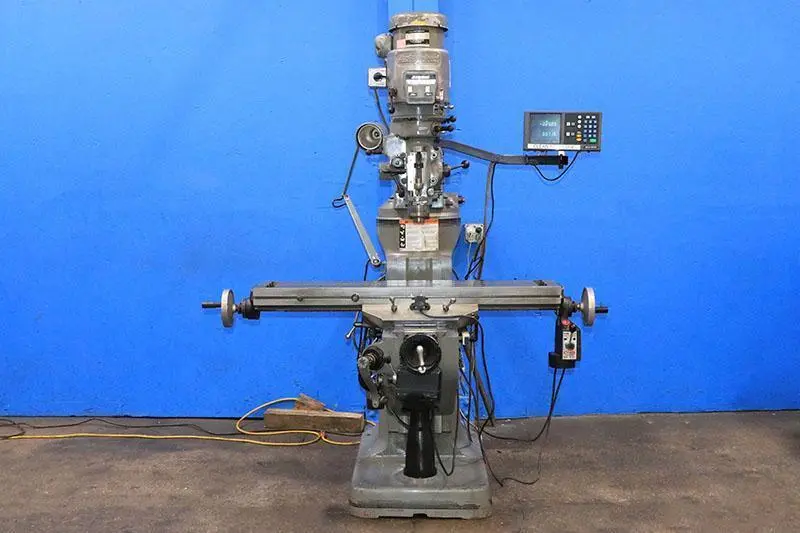

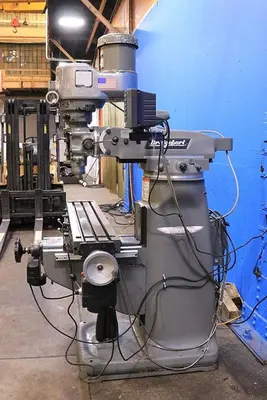

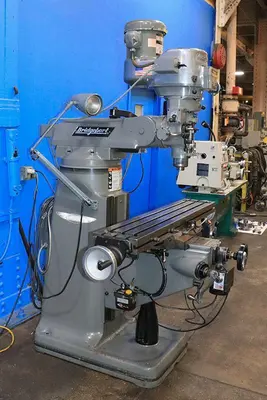

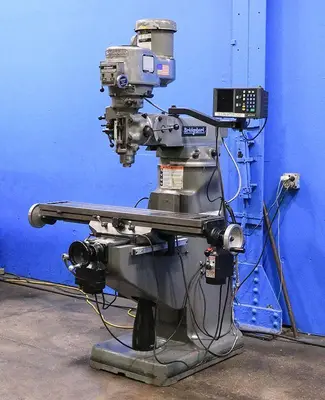

9" x 48" BRIDGEPORT SERIES 1 VERTICAL MILL
New 2002
SPECIFICATIONS:

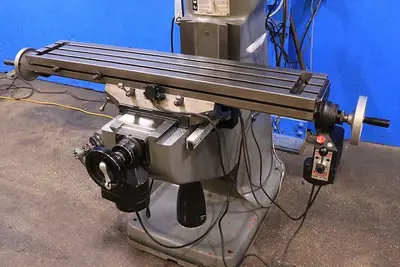

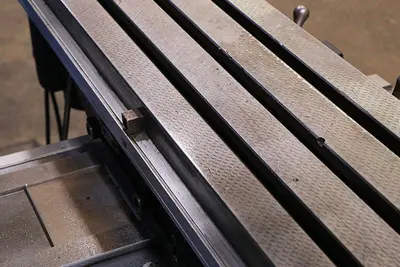

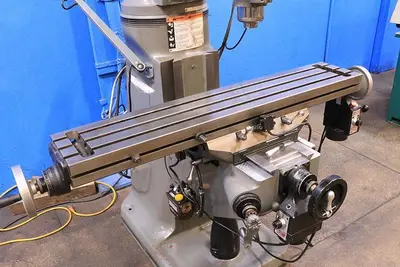

TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE TRAVEL ............... 36"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT & RIGHT ................. 90 DEGREES
HEAD TILT, FRONT & REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY ..................... 3/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS

EQUIPPED WITH:
ACURITE TWO AXIS DIGITAL READOUT

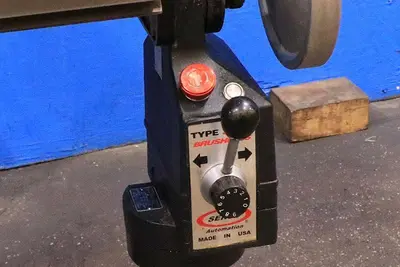

SERVO MODEL: TYPE 350X POWER FEED FOR LONGITUDINAL TRAVEL

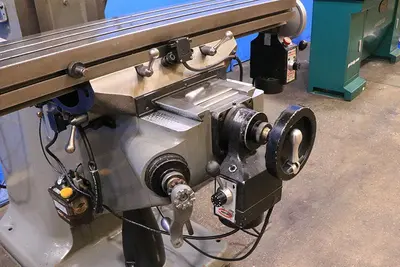

SERVO MODEL:TYPE 150 POWER FEED FOR CROSS TRAVEL

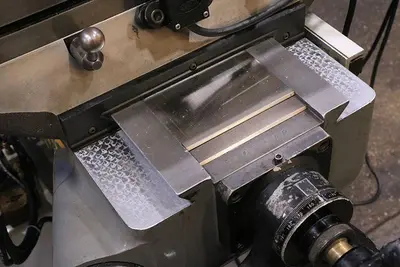

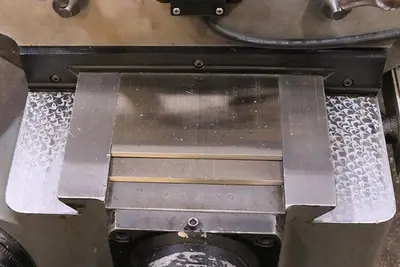

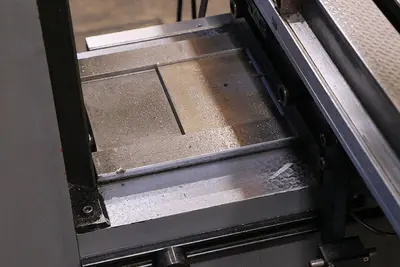

CHROME WAYS
BIJUR SPRAY MIST COOLANT SYSTEM
BIJUR ONE SHOT LUBRICATION SYSTEM

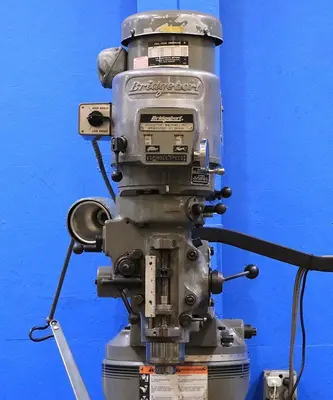

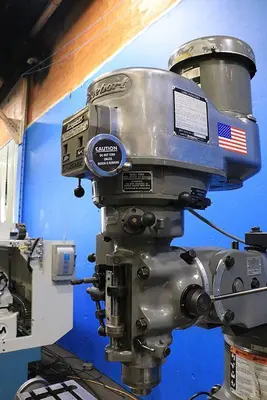

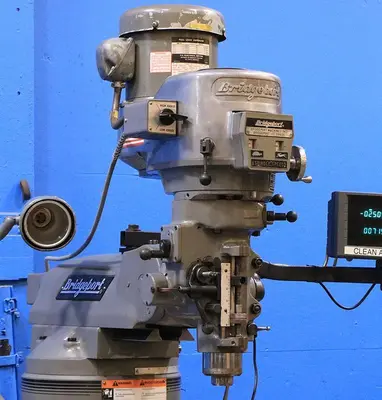

BRIDGEPORT SERIES I MILLING HEAD S/N: 314709
2 HORSE POWER SPINDLE MOTOR
