USED 2008 DOOSAN PUMA 800L

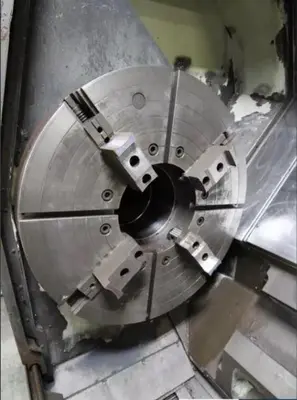

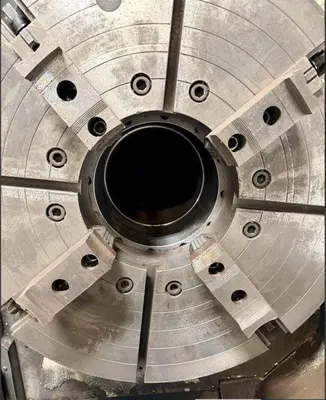

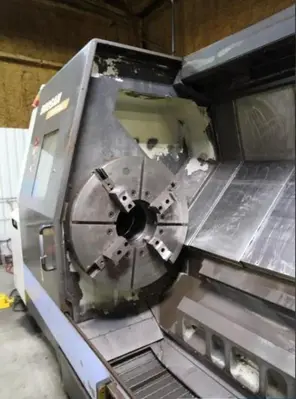

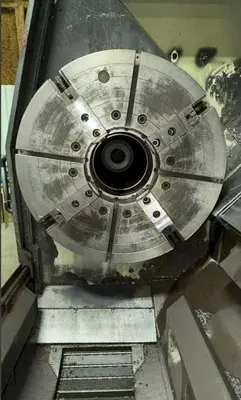

39.4" 4 Jaw Manual Chuck
12.6" Bar Capacity
Tailstock
Chip Conveyor
12 Station Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface

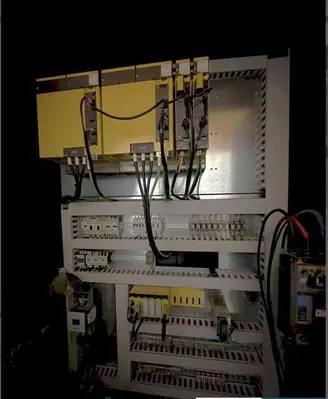

Wired 200/220V Electrics
All Available Manuals

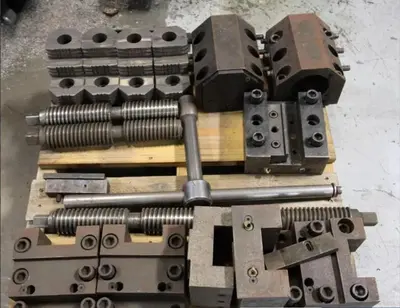

All Available Static Tooling

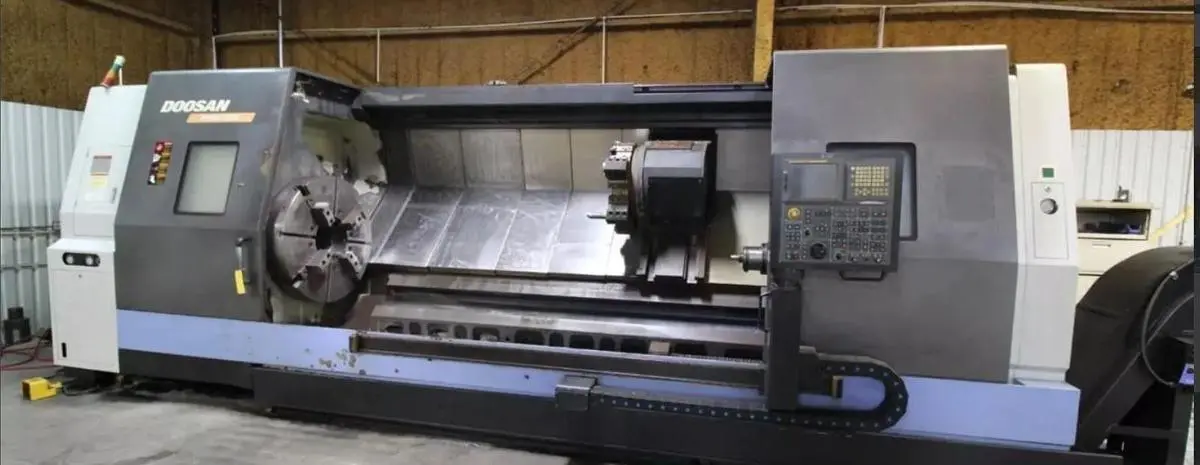

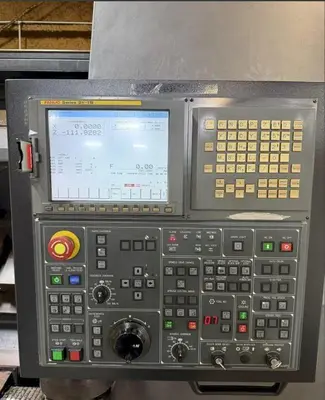

The 2008 Doosan Puma 800L is a robust CNC lathe, ideal for heavy-duty applications. It features a large 39.4-inch 4-jaw manual chuck and accommodates a bar capacity of 12.6 inches. With a turning diameter of up to 35.4 inches and a generous turning length capacity of 126 inches, this machine handles sizable workpieces with ease. The Puma 800L is equipped with the reliable Fanuc Series 21i-TB Control for precision operations.

Powered by a spindle motor offering up to 60 HP, the spindle can reach speeds from 3 to 750 RPM. This model has a maximum swing over the bed of 40.6 inches and provides ample X and Z axis travel distances of 18.52 inches and 127.46 inches, respectively. The machine is also equipped with a tailstock featuring a quill diameter of 6.3 inches and a quill travel of 5.9 inches, utilizing a #5 MT taper.

Weighing 48,500 lbs and measuring 290 inches by 110 inches by 102 inches (or 355 inches in length with the chip conveyor), the Puma 800L is a substantial addition to any industrial setting. Its 12-position bolt-on style turret complements the rapid traverse rates of 472 IPM and 397 IPM for the X and Z axes, enhancing productivity. This used model comes complete with a tailstock and conveyor, ready to deliver high performance for complex machining tasks.
