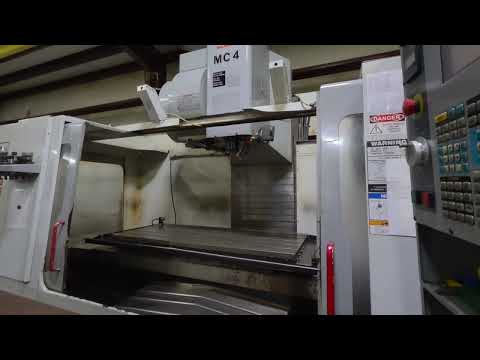

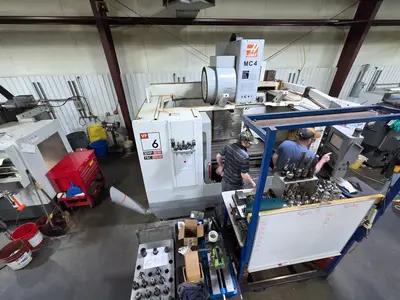

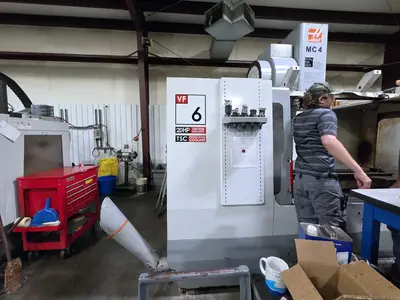

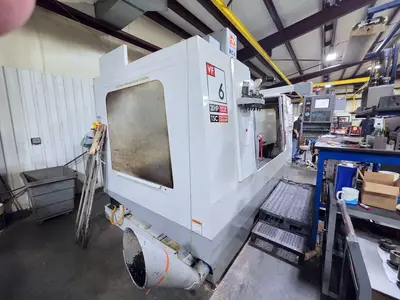

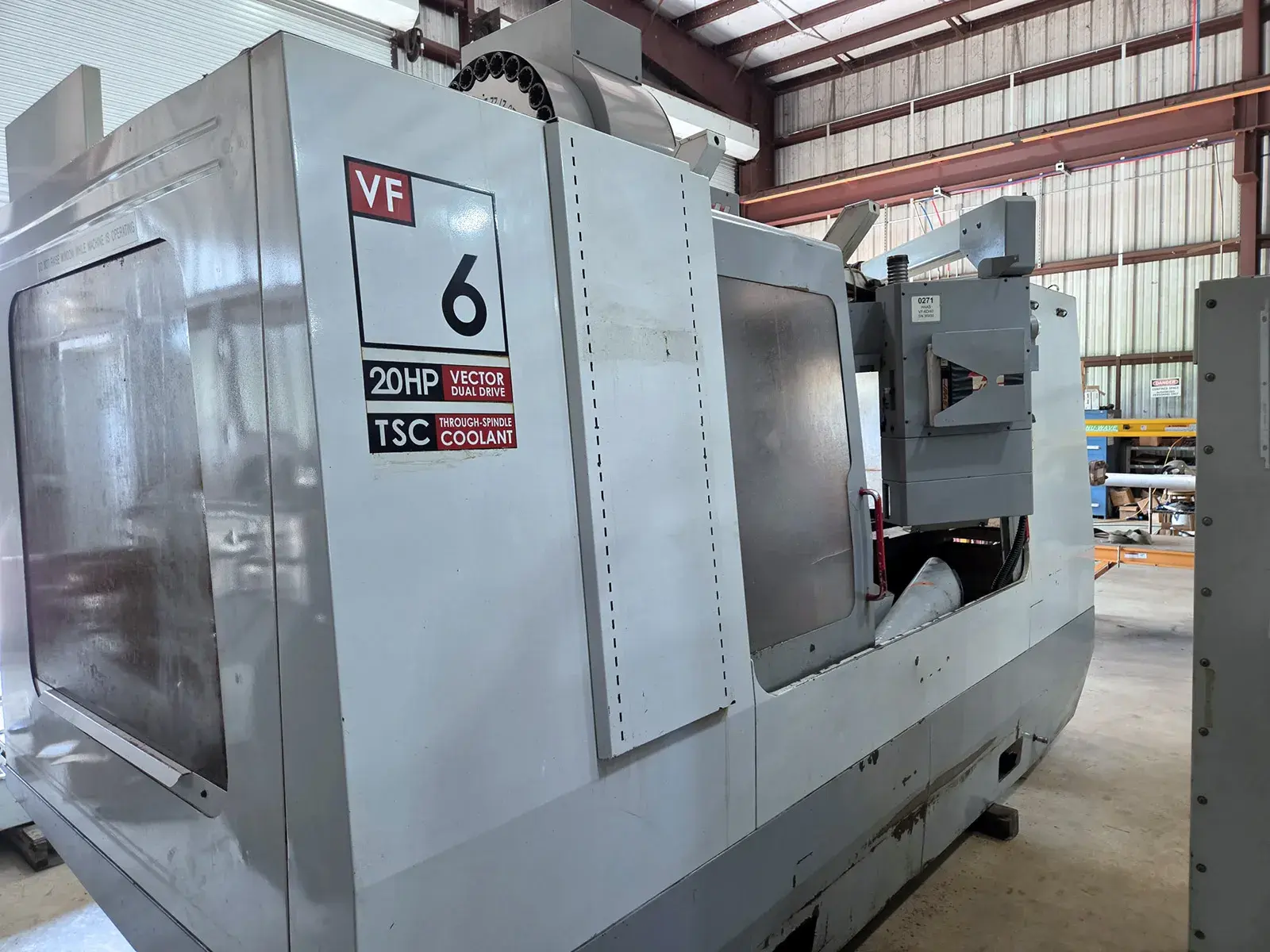

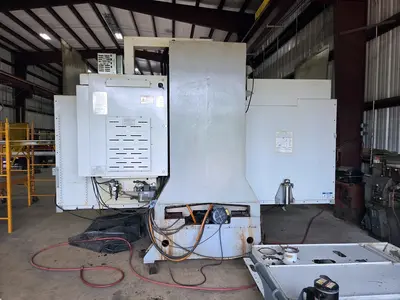

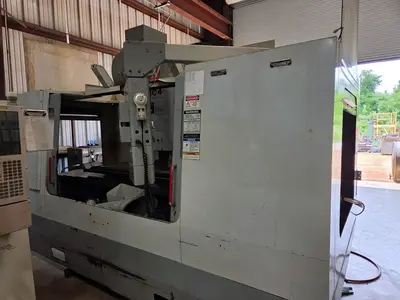

USED 2004 HAAS VF-6
Overview
Thru Spindle Coolant| Side Mount Tool changer|
The Haas VF-6D (2004) is a heavy-duty CNC Vertical Machining Center engineered for precision machining of large, complex components. Featuring an oversized work envelope and massive table capacity, it is ideal for milling, drilling, tapping, and contouring steel, aluminum, stainless steel, titanium, and cast iron. Perfect for aerospace, heavy automotive, oil & gas, energy, tool & die, industrial equipment, and high-capacity contract machining, the used Haas VF-6D delivers exceptional rigidity, accuracy, and productivity for oversized production and prototype applications.
Specs
X-Axis Travel: 64" (1,626 mm)
Y-Axis Travel: 32" (813 mm)
Z-Axis Travel: 30" (762 mm)

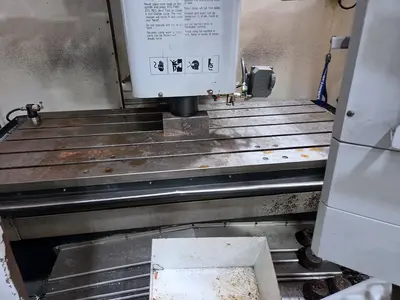

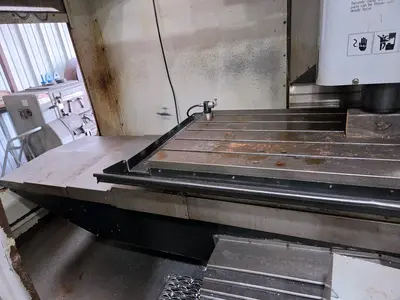

Table Size: 64" x 28"
Table Capacity: 4,000 lbs
Spindle Taper: CAT 40
spindle power: 20 HP Vector Drive
Spindle Speed: 7,500 RPM
Rapid Traverse: 1,000 IPM
Cutting Feed Rate: 650 IPM
Tool Changer: 24+1 Side Mount
Max Tool Weight: 12 lbs
Max Tool Diameter: 3.5" adjacent tools / 6" with empty pockets
Machine Weight: Approx. 18,000 lbs

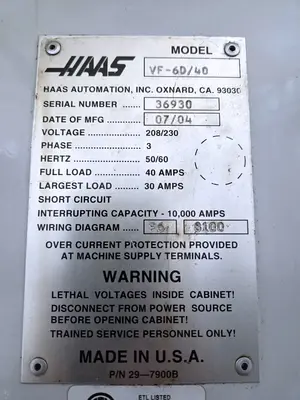

Electrical Requirement: 208-230V / 3 Phase
Equipped With
Haas CNC Control
Through Spindle Coolant (TSC)
4th Axis Drive
20 HP Vector Drive Spindle
Side Mount Tool Changer
Programmable Coolant Nozzle (P-Cool)
Flood Coolant System

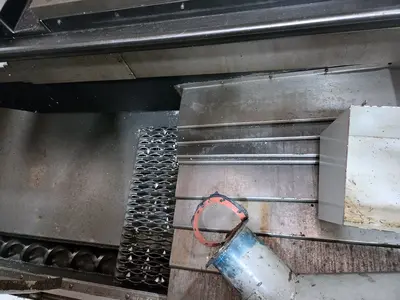

Chip auger
