USED FUJI FW 3410/BA

Manufacturer Information

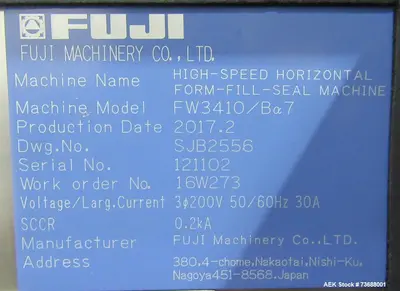

Manufacturer: Fuji
Model: FW 3410/Ba7
Main Product Description

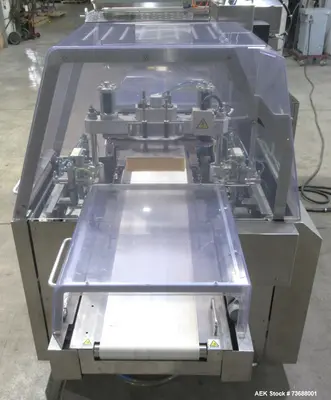

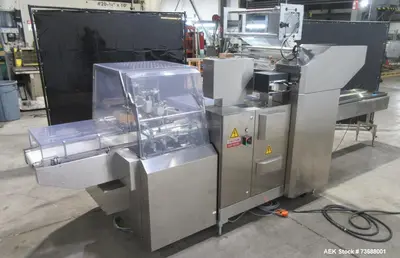

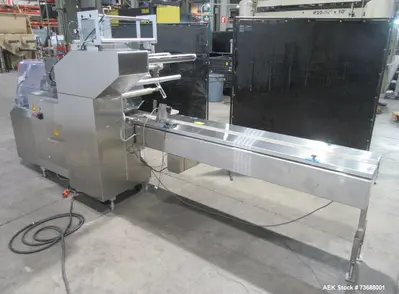

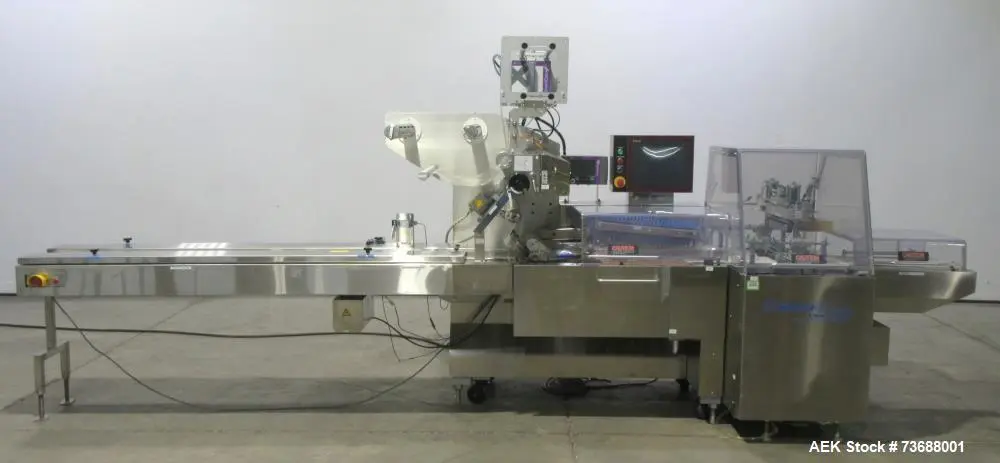

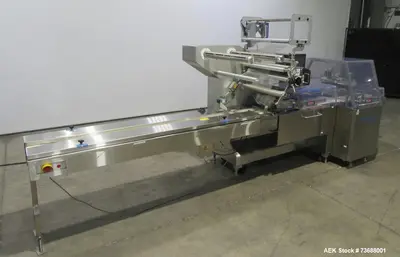

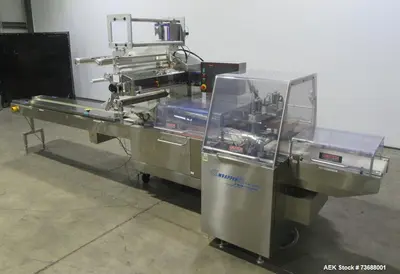

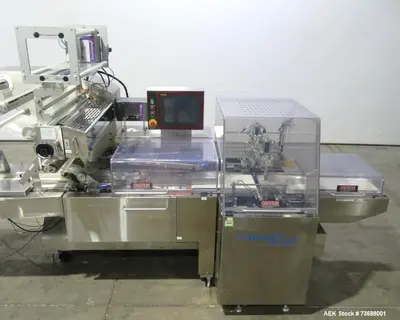

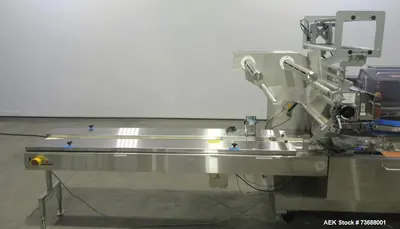

Used Fuji Model FW 3410/Ba7 horizontal box motion flow wrapper designed for flexible high-speed packaging applications, with rated operating speeds from 10 to 150 packages per minute depending on product and package size. The machine handles products ranging from 0.25 to 3.93 inches high, 0.25 to 11 inches wide, and 5.11 to 16.92 inches long, with film widths up to 25 inches. Controls include an integrated control panel with Proface color touchscreen HMI, Yaskawa MP2200 PLC, and Yaskawa servo drives. The system also includes a Markem SmartDate X60 printer, 9-1/2-inch wide infeed and outfeed conveyors, 3-phase 60-cycle 220-volt electrical service, and overall dimensions of approximately 189 inches long x 50 inches wide x 76 inches high.
Specifications

Manufacturer: Fuji
Model: FW 3410/Ba7
Equipment type: Horizontal box motion flow wrapper
Speed range: 10 to 150 packages per minute
Speed dependent on: Package and product size
Product height range: 0.25 to 3.93 inches
Product width range: 0.25 to 11 inches
Product length range: 5.11 to 16.92 inches

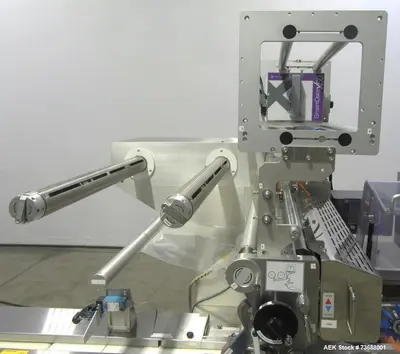

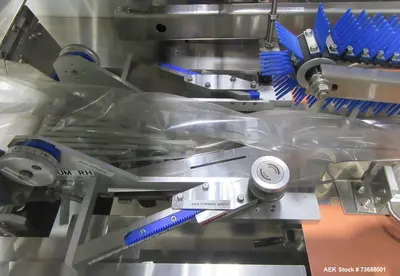

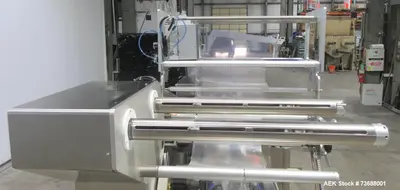

Maximum film width: 25 inches

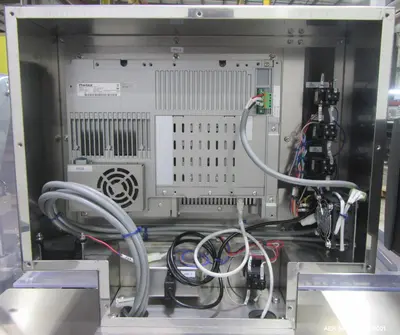

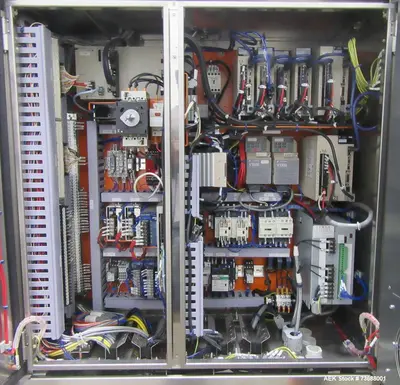

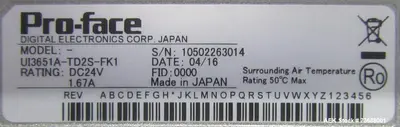

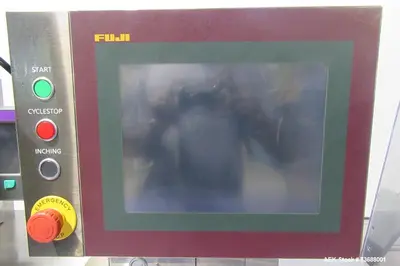

HMI: Proface color touchscreen

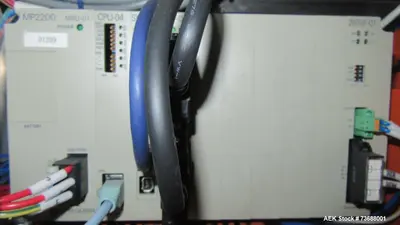

PLC: Yaskawa MP2200

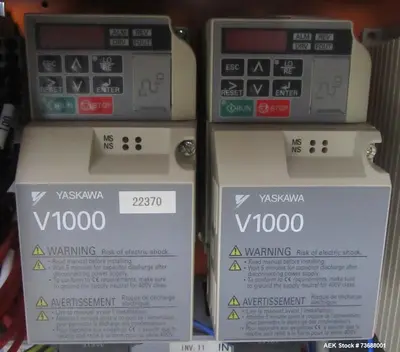

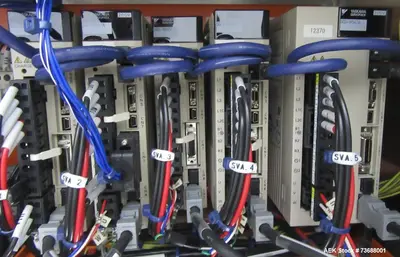

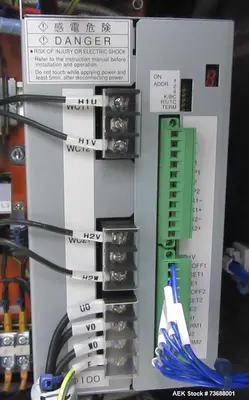

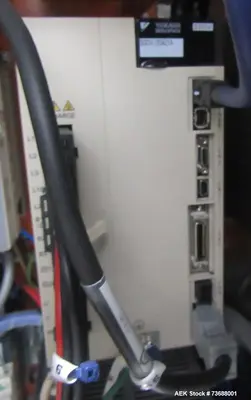

Servo drives: Yaskawa

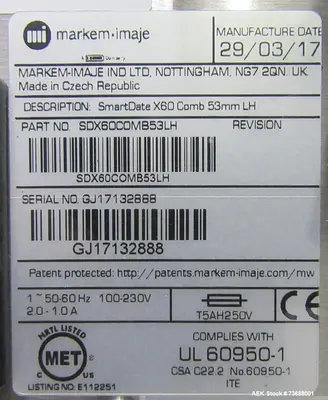

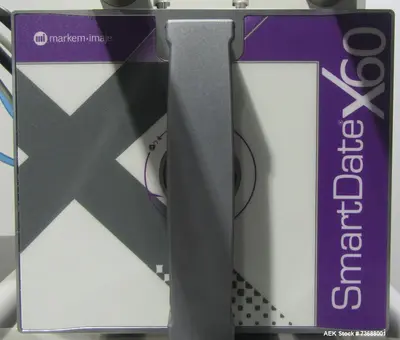

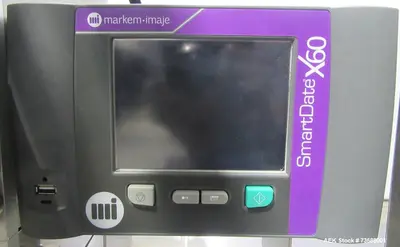

Printer: Markem SmartDate X60

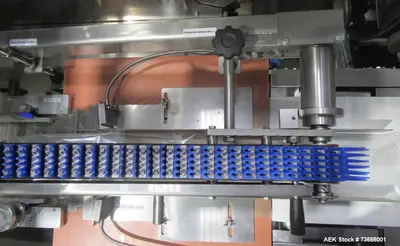

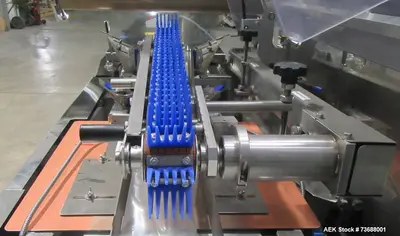

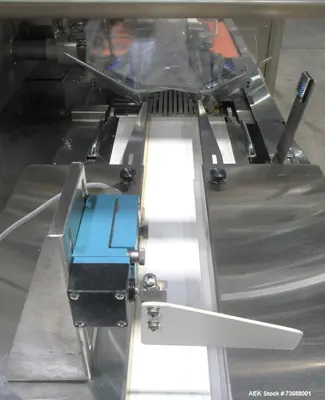

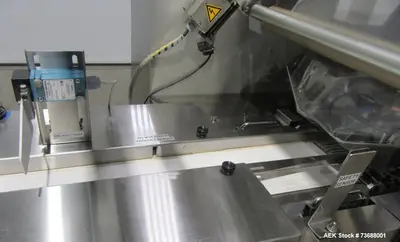

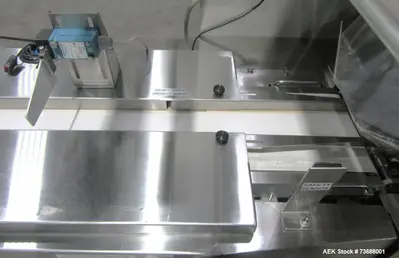

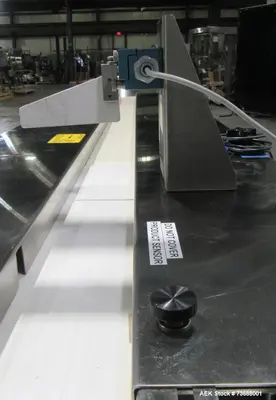

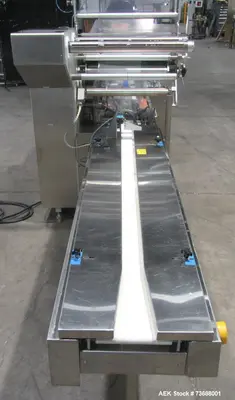

Infeed conveyor width: 9-1/2 inches
Infeed conveyor length: 35 inches

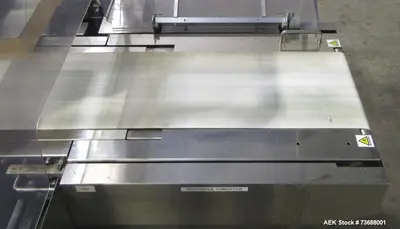

Outfeed conveyor width: 9-1/2 inches
Outfeed conveyor length: 98 inches

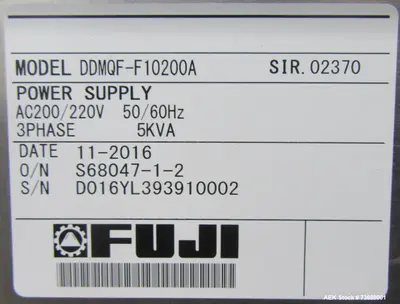

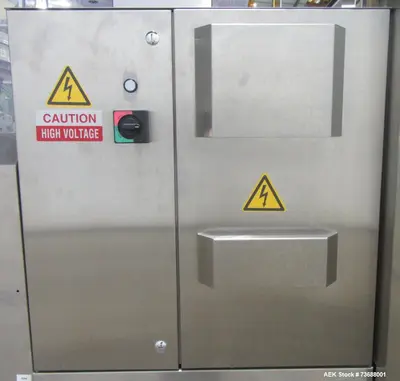

Electrical: 3-phase, 60-cycle, 220 volts
Overall length: 189 inches
Overall width: 50 inches
Overall height: 76 inches

Applications

Horizontal flow wrapping
Box motion packaging
High-speed product wrapping
Flexible film packaging
Individual product packaging
Retail product packaging
Date-coded packaged products
Automated packaging line applications

Suitable Products / Materials
This Fuji flow wrapper may be suitable for products that fall within the specified package size range, including:

Bakery products
Snack products
Candy and confectionery
Bars
Packaged food products
Consumer products
Personal care products
Household items
Medical or industrial products suitable for flow wrapping
Individually wrapped items

FAQs

What is the speed range of this Fuji flow wrapper?
The Fuji FW 3410/Ba7 is rated for approximately 10 to 150 packages per minute depending on package and product size.
What product sizes can the machine handle?
The specified product range is 0.25 to 3.93 inches high, 0.25 to 11 inches wide, and 5.11 to 16.92 inches long.
What is the maximum film width?
The machine is designed for film widths up to 25 inches.
What type of controls does the Fuji flow wrapper use?
The machine includes a Proface color touchscreen HMI, Yaskawa MP2200 PLC, and Yaskawa servo drives.
Does the machine include a printer?
Yes. It includes a Markem SmartDate X60 printer.
What are the conveyor dimensions?
The infeed conveyor measures 9-1/2 inches wide x 35 inches long, and the outfeed conveyor measures 9-1/2 inches wide x 98 inches long.
What electrical service is required?
The machine is rated for 3-phase, 60-cycle, 220-volt electrical service.
What are the overall machine dimensions?
Overall dimensions are approximately 189 inches long x 50 inches wide x 76 inches high.
What is a box motion flow wrapper?

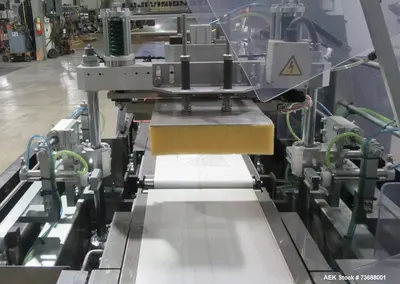

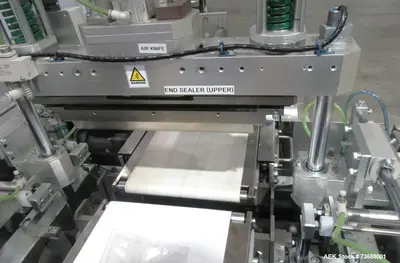

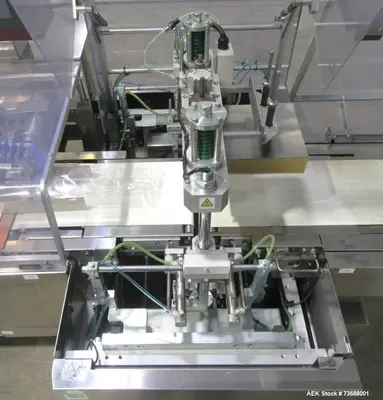

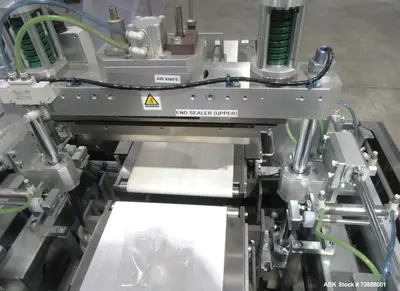

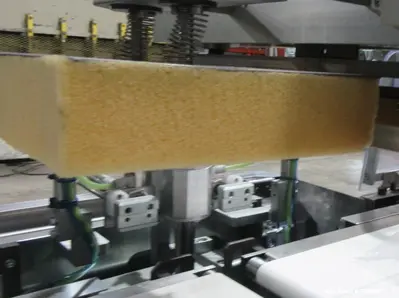

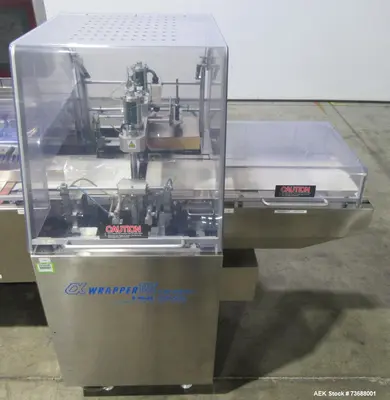

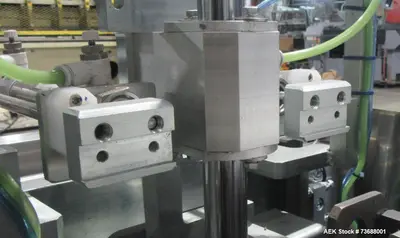

A box motion flow wrapper uses a sealing motion designed to provide controlled end sealing while packaging products in flexible film.
Can Aaron Equipment help with shipping?
Yes. Aaron Equipment can assist with coordinating shipping and logistics for this used Fuji flow wrapper based on the destination and shipment requirements.
How can Aaron Equipment help with this Fuji flow wrapper?
Aaron Equipment can provide available equipment details, help answer listing-related questions, and assist with purchasing and shipping coordination.
