USED FANUC M20/M710

Manufacturer Information
Manufacturer: Fanuc
Robot Model: M-20iB/25C
Robot Type: 6-axis cleanroom industrial robot

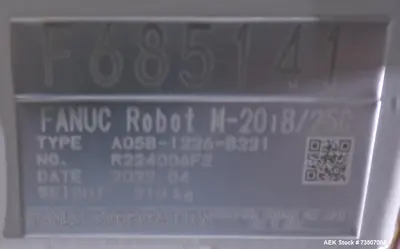

Robot Serial Number: R224006F2
Build Date: 04/2022

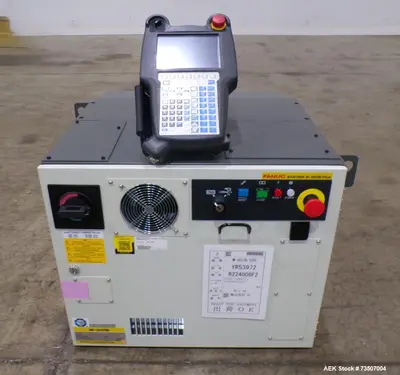

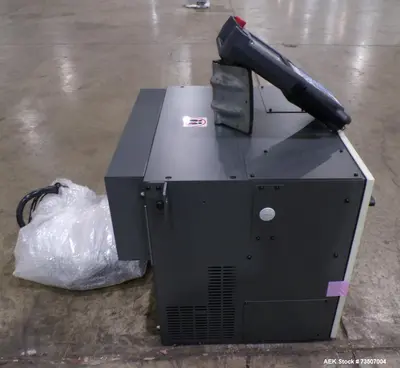

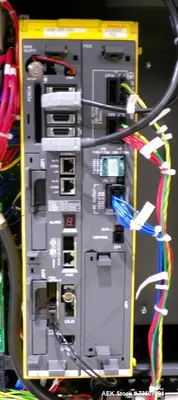

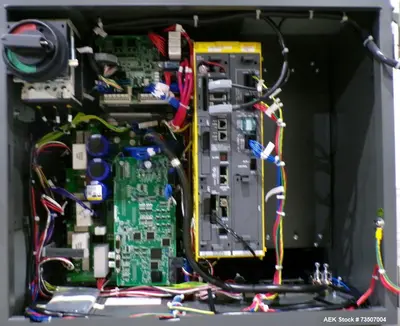

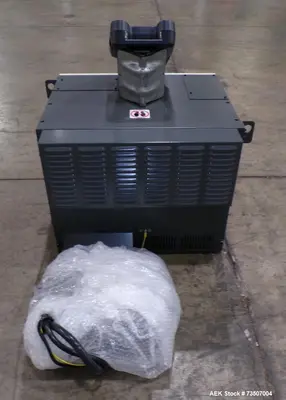

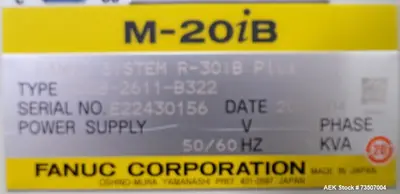

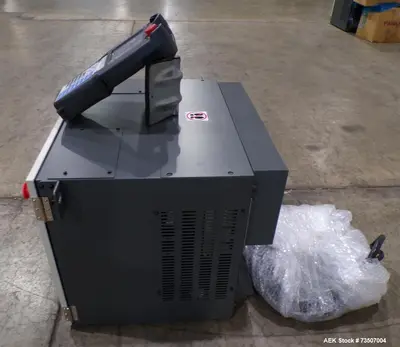

Controller: Fanuc R-30iB Plus
Controller Type: A05B-2611-B322
Controller Serial Number: E22430156

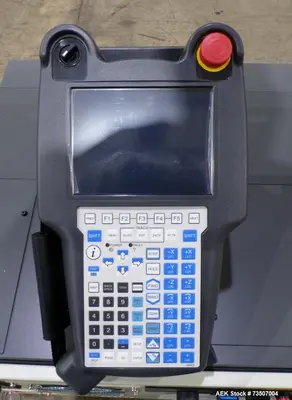

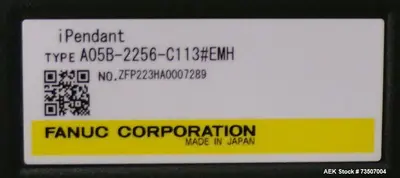

iPendant Type: A05B-2256-C113#EMH
Main Product Description

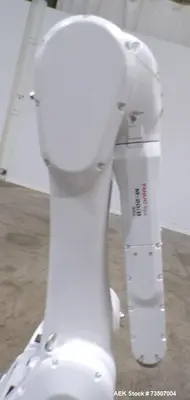

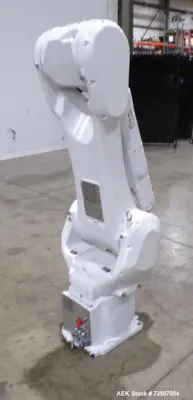

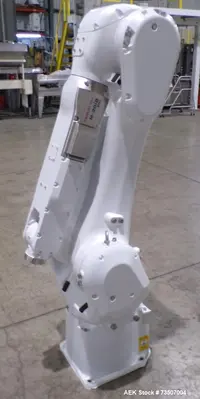

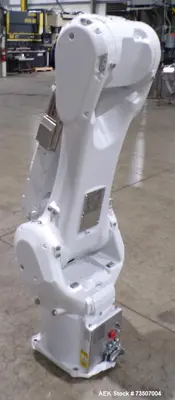

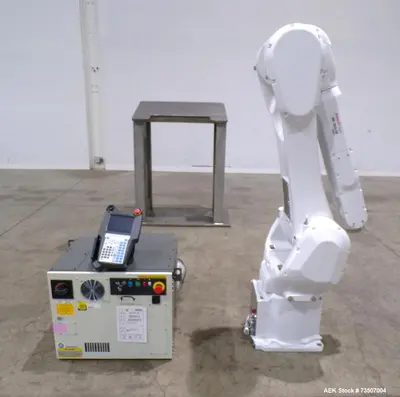

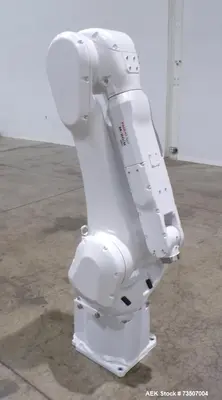

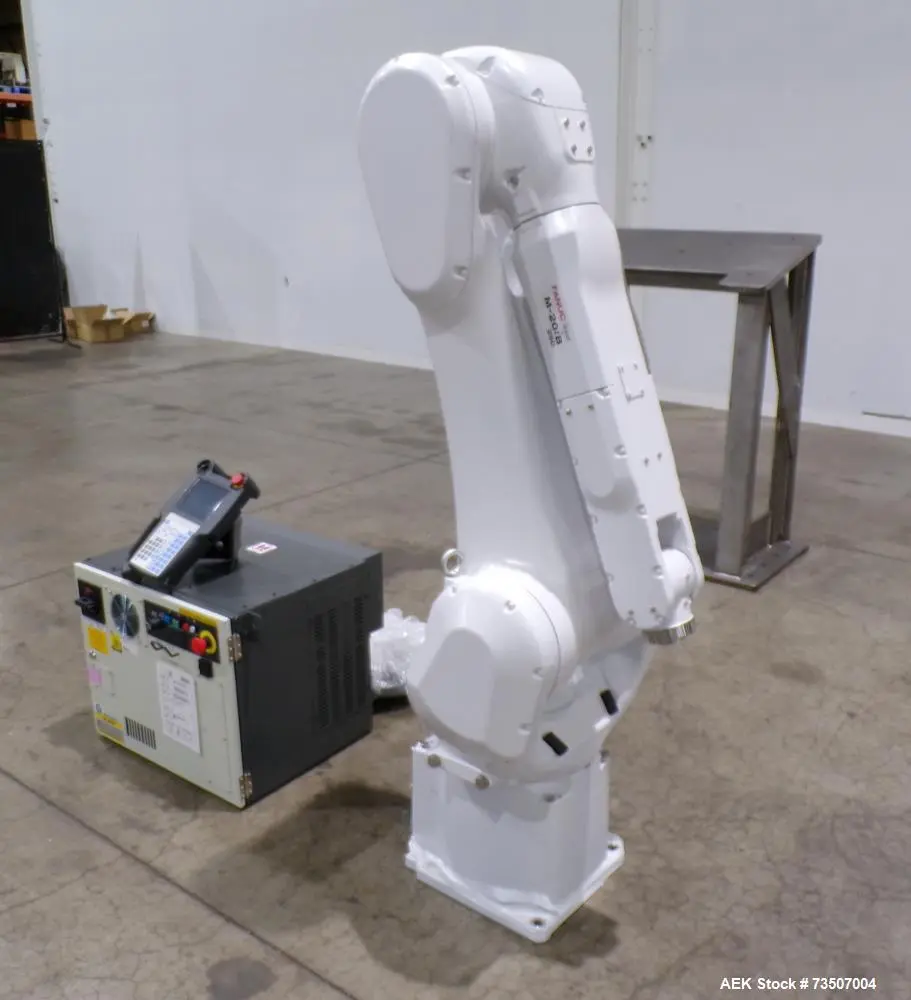

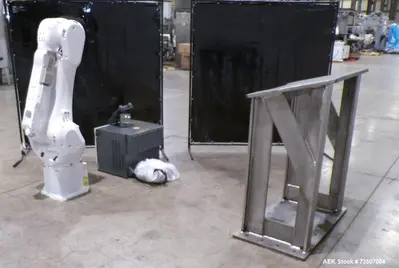

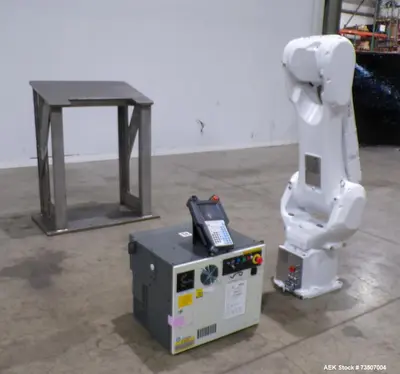

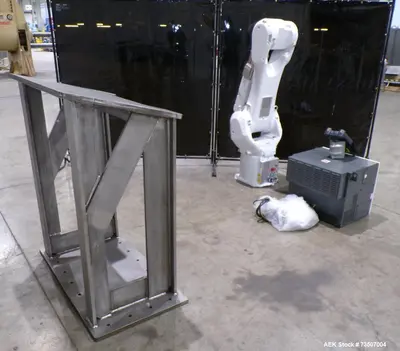

Unused Fanuc M-20iB/25C 6-axis cleanroom industrial robot built in April 2022 and supplied with a Fanuc R-30iB Plus controller and Fanuc iPendant. The M-20iB/25C provides a maximum payload of 25 kg, maximum reach of 1,853 mm, and ±0.02 mm repeatability for precise automated handling applications. Designed with an enclosed structure and special white coating, this robot is intended for cleanroom, food-related, pharmaceutical, optical, electronics, and other hygiene-sensitive production environments. Manufacturer specifications include floor, angle, or inverted mounting, 1 kW average power consumption, and IP67 protection for the body, wrist, and J3 arm.
Specifications
• Manufacturer: Fanuc
• Model: M-20iB/25C
• Configuration: 6-axis cleanroom industrial robot
• Condition: Unused
• Build Date: 04/2022
• Robot Serial Number: R224006F2
• Maximum Payload: 25 kg
• Maximum Reach: 1,853 mm
• Repeatability: ±0.02 mm
• Mechanical Weight: 210 kg
• Average Power Consumption: 1 kW
• Mounting: Floor, angle, or inverted
• Body Protection: IP67
• Wrist Protection: IP67
• J3 Arm Protection: IP67
• Structure: Enclosed
• Finish: Special white coating
• J1 Maximum Speed: 205 degrees/second
• J2 Maximum Speed: 205 degrees/second
• J3 Maximum Speed: 260 degrees/second
• J4 Maximum Speed: 415 degrees/second
• J5 Maximum Speed: 415 degrees/second
• J6 Maximum Speed: 880 degrees/second
• Controller: Fanuc R-30iB Plus
• Controller Type: A05B-2611-B322
• Controller Serial Number: E22430156
• iPendant Type: A05B-2256-C113#EMH
Applications
• Cleanroom material handling
• Assembly
• Picking and packaging
• Dispensing
• Sealing
• Machine tending
• Pharmaceutical production handling
• Food-related automated handling
• Electronics manufacturing
• Optical product handling
• Medical product handling
• Hygiene-sensitive automation
• General industrial automation within rated payload and reach
Suitable Products / Materials
• Food products
• Pharmaceutical products
• Electronics
• Medical products
• Optical components
• Packaged goods
• Components and assemblies
• Hygiene-sensitive products
• Industrial workpieces within the robot’s 25 kg payload and 1,853 mm reach
FAQs
• What is the maximum payload of the Fanuc M-20iB/25C?
The robot has a maximum payload of 25 kg.
• What is the maximum reach of the Fanuc M-20iB/25C?
The maximum reach is 1,853 mm.
• Is the Fanuc M-20iB/25C designed for cleanroom applications?
Yes. This M-20iB/25C is a cleanroom configuration featuring an enclosed structure and special white coating for hygiene-sensitive production environments.
• What industries can use the M-20iB/25C?
Possible industries include pharmaceutical, food-related processing, electronics, medical, optical, and other controlled or hygiene-sensitive production environments.
• What controller is included?
The system includes a Fanuc R-30iB Plus controller, Type A05B-2611-B322.
• Is a Fanuc iPendant included?
Yes. The system includes a Fanuc iPendant, Type A05B-2256-C113#EMH.
• What is the robot’s repeatability?
Manufacturer specifications list repeatability at ±0.02 mm.
• What mounting configurations are available?
The M-20iB/25C supports floor, angle, or inverted mounting.
• What applications can this robot perform?
Possible applications include material handling, assembly, picking and packaging, dispensing, sealing, machine tending, and other automated handling operations within its payload and reach capabilities.
• Can this Fanuc cleanroom robot be shipped?
Yes. Aaron Equipment can assist with shipping and logistics for industrial equipment. Shipping options can be coordinated based on the equipment location, destination, and transportation requirements.
• How can Aaron Equipment help with this Fanuc M-20iB/25C?
Aaron Equipment can help buyers review the available equipment information, answer questions about the listed robot system, coordinate purchasing, and assist with shipping and logistics.
