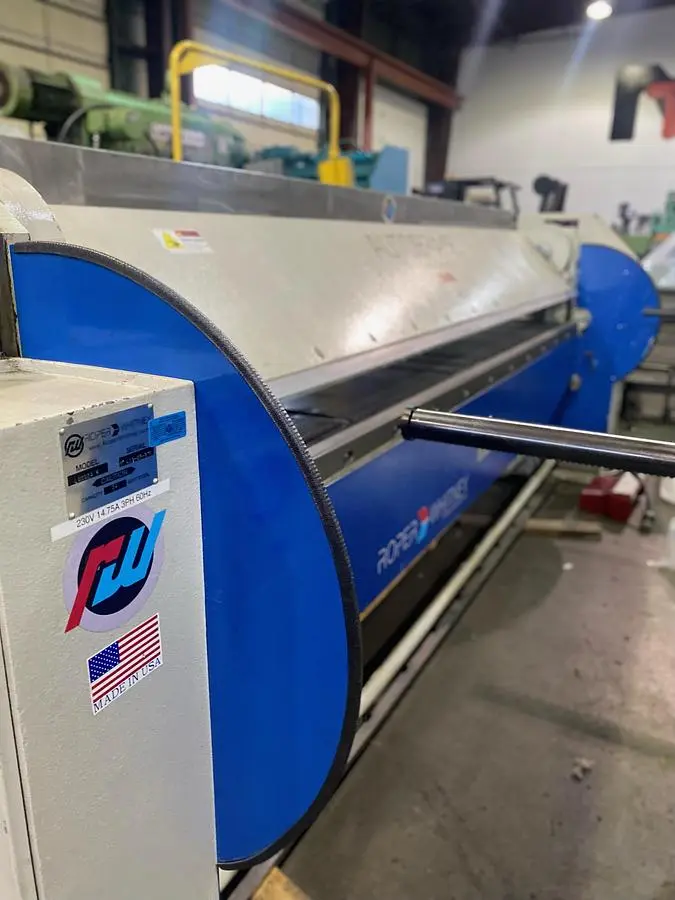

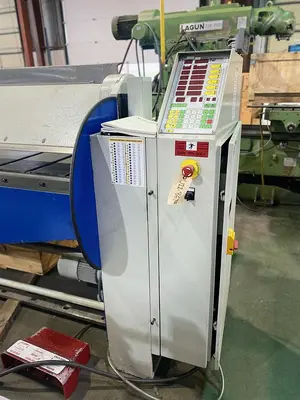

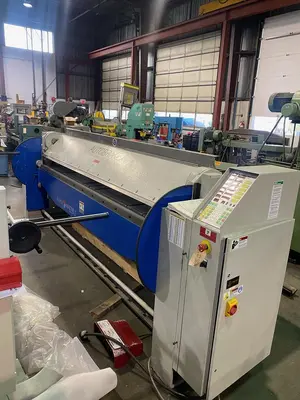

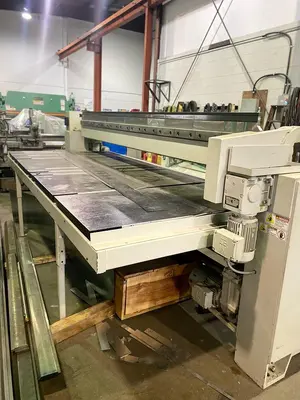

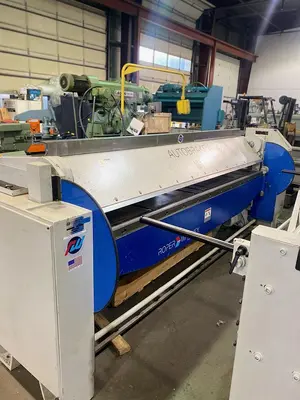

USED ROPER WHITNEY AB1014K

Kombi Beam Tooling
The upper beam comes standard with both segmented and sharp rail tooling.  The segmented box tooling can form boxes with a maximum depth of 4.0”. The sharp rail tooling is machined to 30°.

SPECIFICATIONS:
Bending Capacity (Mild Steel) 14ga / 2,0mm
Bending Capacity (Stainless) 16ga / 1,5mm  up to 90°, 18ga / 1,2mm past 90°
Bending Length 122 in / 3100mm
Bending Bars .787" (20mm) bending bar x 122" (3100mm)

.394" (10mm) bending bar x 122" (3100mm)

.275” (7mm) bending bar x 122" (3100mm)
Back Gauge Motor 3/4 hp Servo / 0.6 kw Servo
Clamping Beam Motor 2 hp / 1.5 kw
Clamping Beam Rotation Motor 2 hp / 0.75 kw 230 VOLT 3PH
Bending Beam Motor 2 hp / 1.5 kw
Machine Weight 6,600 lbs. / 3886 kg
Machine Dimensions 160 x 90 x 84 in / 4064 x 2286 x 2134 mm


Speed

Clamping Beam Speed 2.5” per second
Folding Beam Speed 70 degrees per second
Back gauge Speed(0.250” to 61”) 2 seconds
