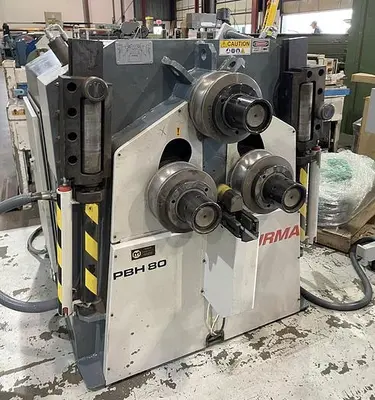

USED DURMA PBH 80

FEATURES:

   Robust machine frame is manufactured with rugged steel construction and machined after
welding for rigidity
   Large shaft diameters and bearings result in precise bending and also minimize deflection
   A strong frame and world class components provide a long machine life
    High drive torque and speed produce short cycle times.
Minimized straight edge by hydraulic adjustments
    Low energy and maintenance costs because of friction free planetary swing guides
    Powerful guide rolls
    Tie Bar Assembly
   Bottom Rolls Digital Readout (X, Y Axis)
Hydraulic Z axis
   All Rolls Driven by Planetary Gear Box and Hydramotor
   1 Set Standard Hardened and Ground Rolls made of special steel
   3 axis side supports, front-back, up-down, left-right manual adjustment
    Special support for angle iron
    Movable Command Panel Separate from Machine
    Horizontal Working Feature
   Stress-Relieved Steel Construction Body
    Electrical and Hydraulic Protection Against Overload
DIMENSIONS & SPECIFICATIONS:
PBH 80
Shaft Diameters:
Top 3.349"
Planetary (2) 3.152"
Roll Diameters 9.7"

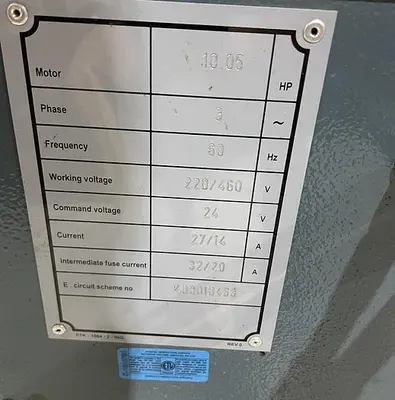

Motor Power 10 HP, 220 Volt, 3PH
Turning Speed 23 FPM
Dimensions 62" L x 47" W x 56" H
Weight 5,170 lbs.
