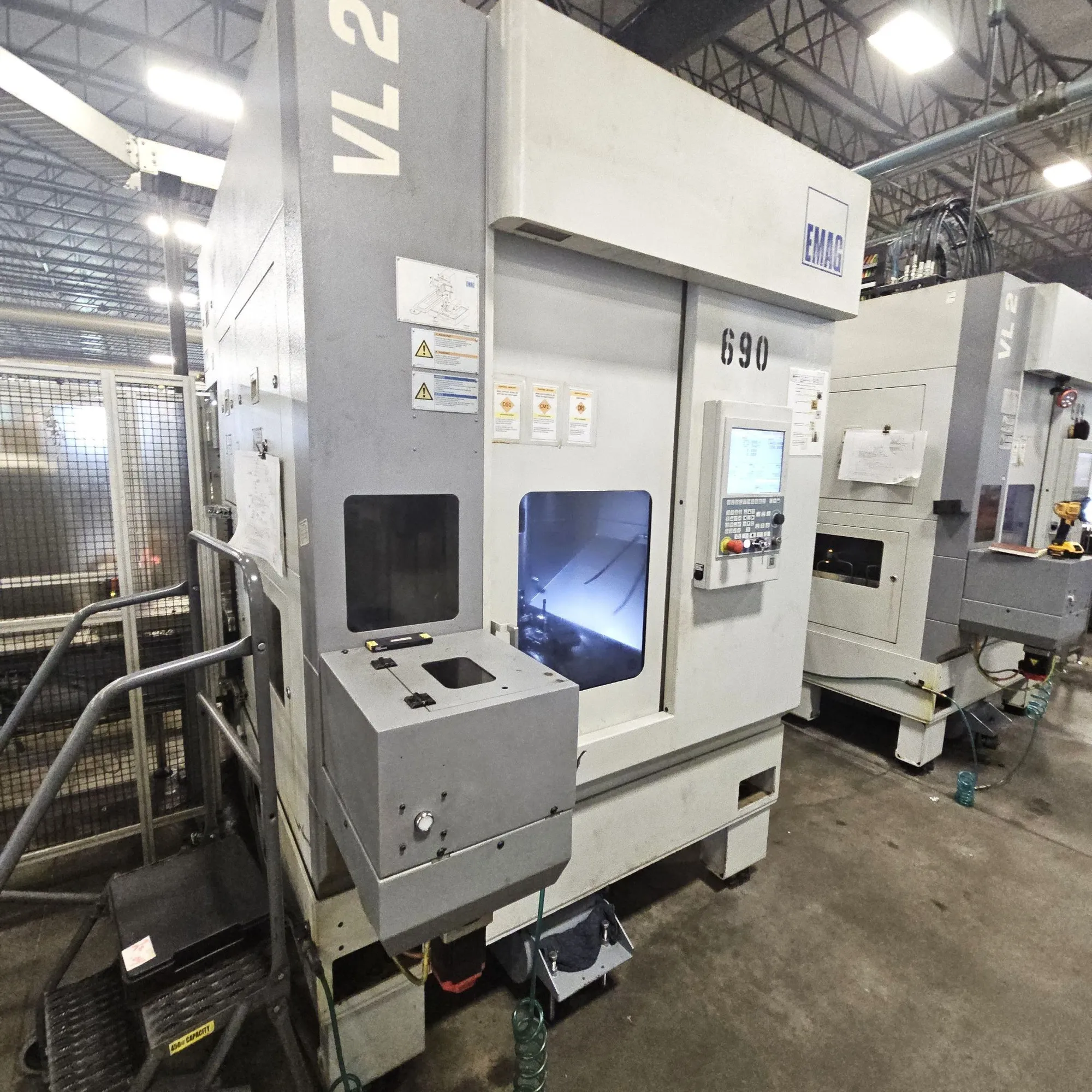

USED 2017 EMAG VL 2

2017 EMAG VL-2 Inverted Vertical Spindle Full C-Axis Live Tool Turning Center with Fanuc CNC Control & Fanuc Controlled &
Design Factory Gantry Loader with 3-Pole Stocker Feeder Tables
and CNC Auto Touch Probe with Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Rear High-Top Heavy-Duty Hennig Chip Conveyors, High Pressure Coolant Pumps & Tank, Loaded with All Proprietary Tooling to be Divided on Separate Orders or All Included (4) Identical Machines Available.
Special Neg. on 1-4 Machine Opportunity.

Main Specifications * Standard Specifications!
Full Factory Catalog Features & Specifications!

Swing:................................ 8.3"
Machining Length:....... ..... 6.0"
Max Turning Diameter:...... 5" or 8"
* Special Offset Toolholder Capable.
Full C-Axis 3# Axis Contour Milling Capability
Chuck Size 6.5" * Confirming Special Collet Chucks Included.
Main Power 26 hp Spindle Motors
Max RPM 6,000 RPM
X-Axis Travel 27.5"
Z-Axis Travel 15"
C-Axis 360 - 0.01°
Live Tooling Included Full C-Axis Milling Capabilities
Rapid Traverse (X/Z) 2,363 / 1,181 in/min.
Turret Capacity 12
Dimensions Machine Only 100" X 63" X 103" (Approx.)
Weight Machine Only 12,125 Lbs.

Equipped With
Auto Pick-up spindle automatic loading system
Auto Integrated part conveyor system
Hydraulic CNC Power Pull back CNC Collet Chuck
* Confirming Chuck Model and Capacities.
High Pressure Thru Spindle Coolant systems
Rear High Top Henning Chip conveyors
All Tooling to be Divided Between Machines.
All Original Ordered New Books & Manuals
