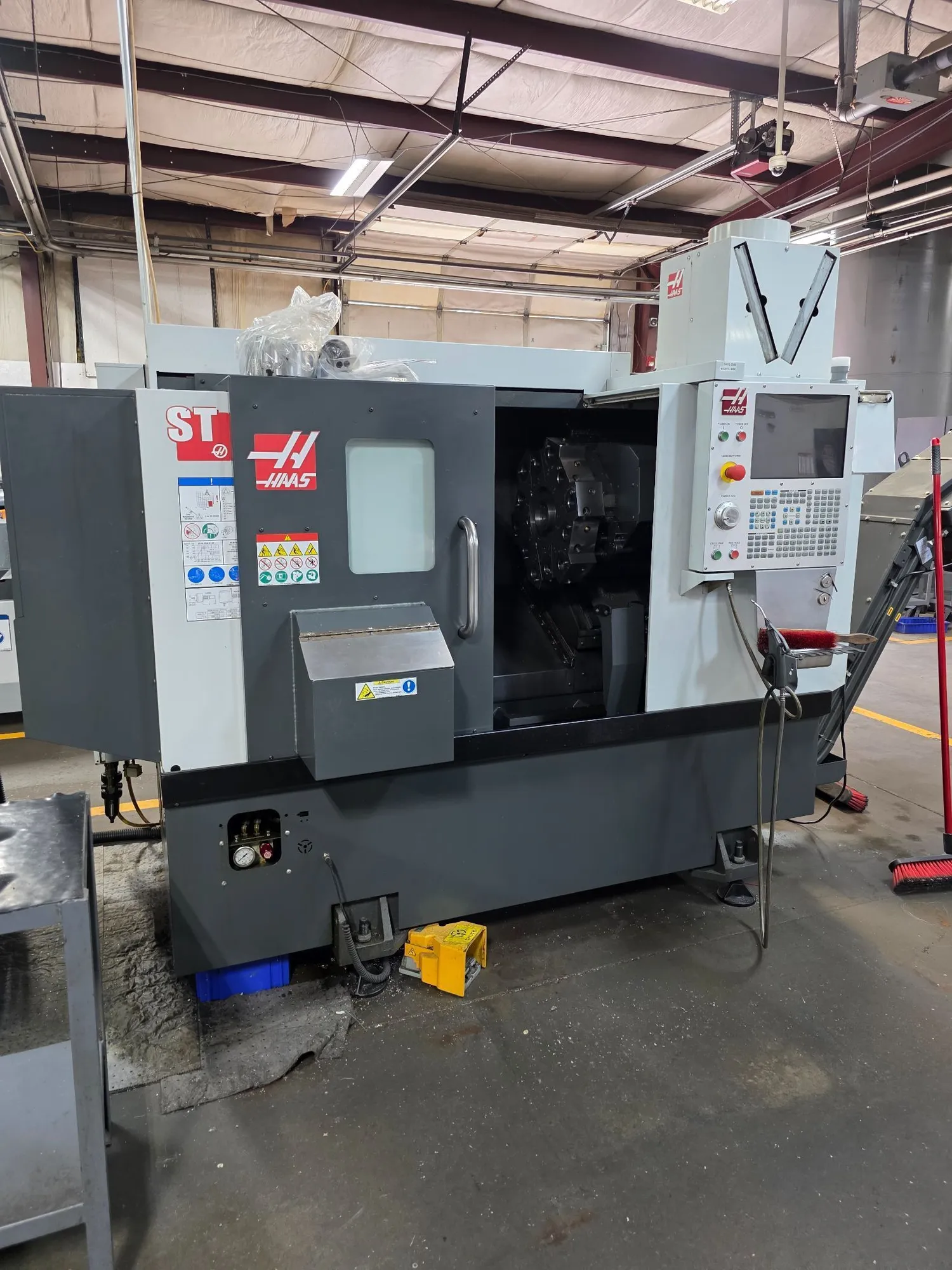

USED 2021 HAAS ST-10 W/ LIVE TOOLING
Overview
For sale: 2021 HAAS ST-10M CNC Lathe with live milling, equipped with Haas barfeed and chip conveyor. Features a 6.5" chuck, 15 HP motor, and 6,000 RPM max. Compact at 92"x55"x69", it's perfect for high-performance precision work.
Specs
General Specifications:
Machine Control Haas NextGen Control
Chuck Size 6.5" / 1.75" Thru hole
Maximum Swing 25.25"
Maximum Swing Over Cross Slide 16.25"
Maximum Machining Diameter 14"
Maximum Machining Length 14"
X-Axis Travel 7.88"
Z-Axis Travel 16"
Spindle Nose / Bore / Bar Capacity A2-5" / 2.31" / 1.75"
Spindle Speeds 6,000 RPM
Spindle Motor 15 HP
Number of Turret Positions 12 Bolt on Style Turret
Spindle Torque 75 ft/lbs.
Rapid Traverse Rates 1,200 IPM
Machine Dimensions LxWxH 92"x55"x69"
Machine Weight 6,420 lbs
Equipped With
Haas Barfeed
chip Conveyor
LIVE MILLING C-AXIS
parts catcher
tool presetter
list price new $119,500
