NEW 2025 LK MACHINERY LTR-8M

Illinois, United States
Your Partners in productivity. 520 Machinery Sales specializes in new and used machine tools sales.
Overview
CNC Lathes

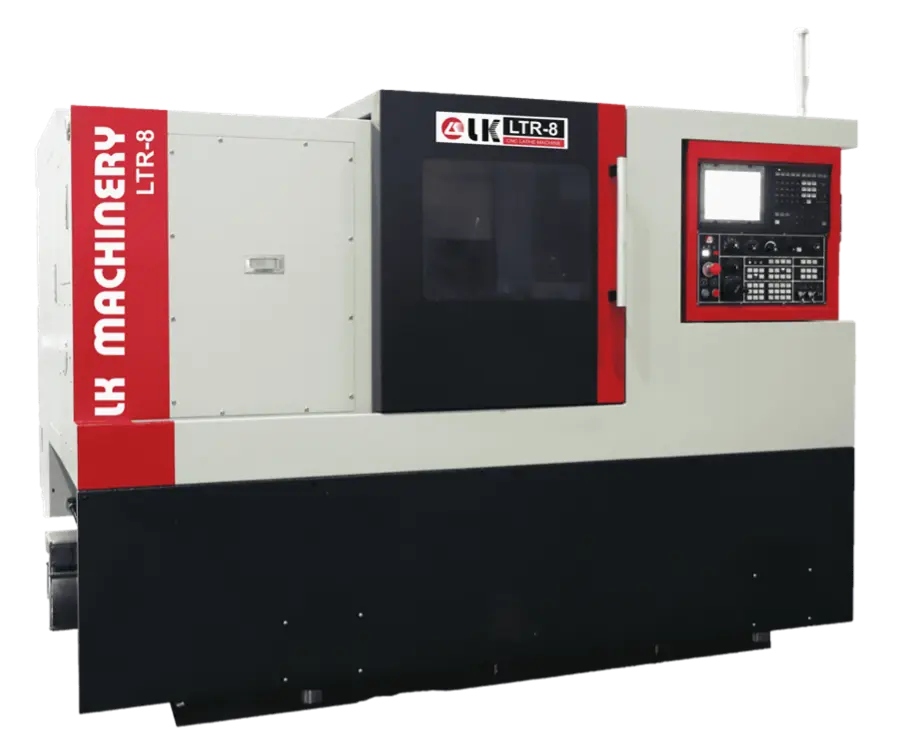

Introducing the 2025 LK Machinery LTR-8M Live Tool CNC Lathe. This new lathe boasts an 8" chuck, 18" machining length, and 2.5" bar capacity. Features include live tooling, a 15 hp motor, 4,500 RPM max speed, and a tailstock. Equipped with essential accessories.

Specs
Chuck Size
8"
203.2 mm
Machining Length
18"
457.2 mm
Bar Capacity
2.5"
63.5 mm
Live Tooling
Yes
Yes
Y-Axis Milling
No
No
Sub Spindle
No
No
# of Turrets
1
1
Turning Dia
21"
533.4 mm
Power
15 hp
11.2 kW
Max RPM
4,500 RPM
4,500 RPM
Tailstock
Yes
Yes
Control
CNC (Fanuc Oi-TF Plus)
CNC (Fanuc Oi-TF Plus)
Dimensions
169"L x 68"W x 76"H
169"L x 68"W x 76"H
Weight
11,000 Lbs
11,000 Lbs
Equipped With

380V Transformer
3 Color Work Lamp
Work Light
Chip Conveyor
Chip Cart
8" 3-Jaw Hydraulic Chuck & 1 Set of Jaws
