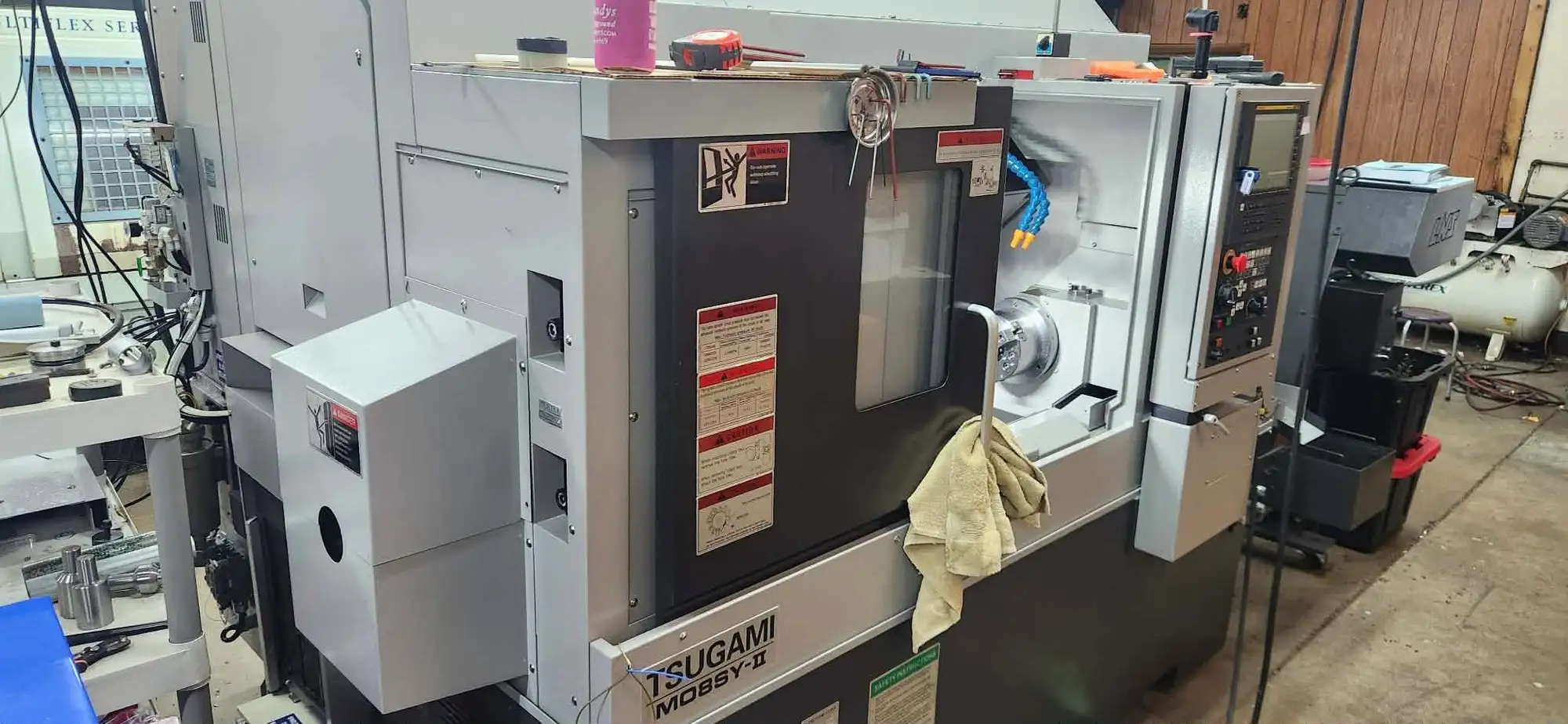

USED 2023 TSUGAMI M08SY

Max. machining diameter ø280/ø65 (Barstock) mm
(ø11.02/ø2.56 (Barstock) in.)
Max. machining length 380 mm (14.96 in.)
Chuck size 8 inch
Max. spindle speed 4,500 rpm
Shape of spindle end JIS A2-6
Main spindle bore ø73 mm (2.87 in.)
Spindle bearing ID ø100 mm (3.94 in.)
Number of stations 12
OD tool shank □25 mm (.98 in.)
Drill holder hole diameter ø40 mm (1.57 in.)
Max. back spindle speed 4,500 rpm
Back spindle end ø140 flat
Back spindle bore/Back spindle bearing ID ø59/ø80 mm (ø2.32/ø3.15 in.)
Back spindle chuck 6 inch
Max. live tool speed 5,000 rpm
Main spindle motor 7.5/11 kW (10/14.8 hp)
Back spindle motor 5.5/7.5 kW (7.4/10 hp)
Live tool motor 2.2 (30 min-1)/3.7 (15 min-1) kW
X/Z-axis motor 1.8 kW (2.4 hp)
A/Y-axis motor A: 1.2 kW Y: 1.8 kW (A: 1.6 hp Y: 2.4 hp)
Stroke X/Z X: 221 mm Z: 400 mm
(X: 8.70 in. Z: 15.75 in.)
Stroke A/Y A: 506 mm Y: ±50 mm
(A: 19.92 in. Y: ±1.97 in.)
Rapid traverse rate X/Z X: 24 m/min Z: 27 m/min (X: 945 ipm Z: 1,062 ipm)
Rapid traverse rate A/Y A: 30 m/min Y: 12 m/min (Z: 1,181 ipm Y: 472 ipm)
Power source requirements 30 kVA
Compressed air requirement 0.5 Mpa
Air discharge rate 100 NL/min
Size (width x depth x height) 2,470mm x 1,850mm x 1,930mm
(97.24 in. x 72.83 in. x 75.98 in.
