Used

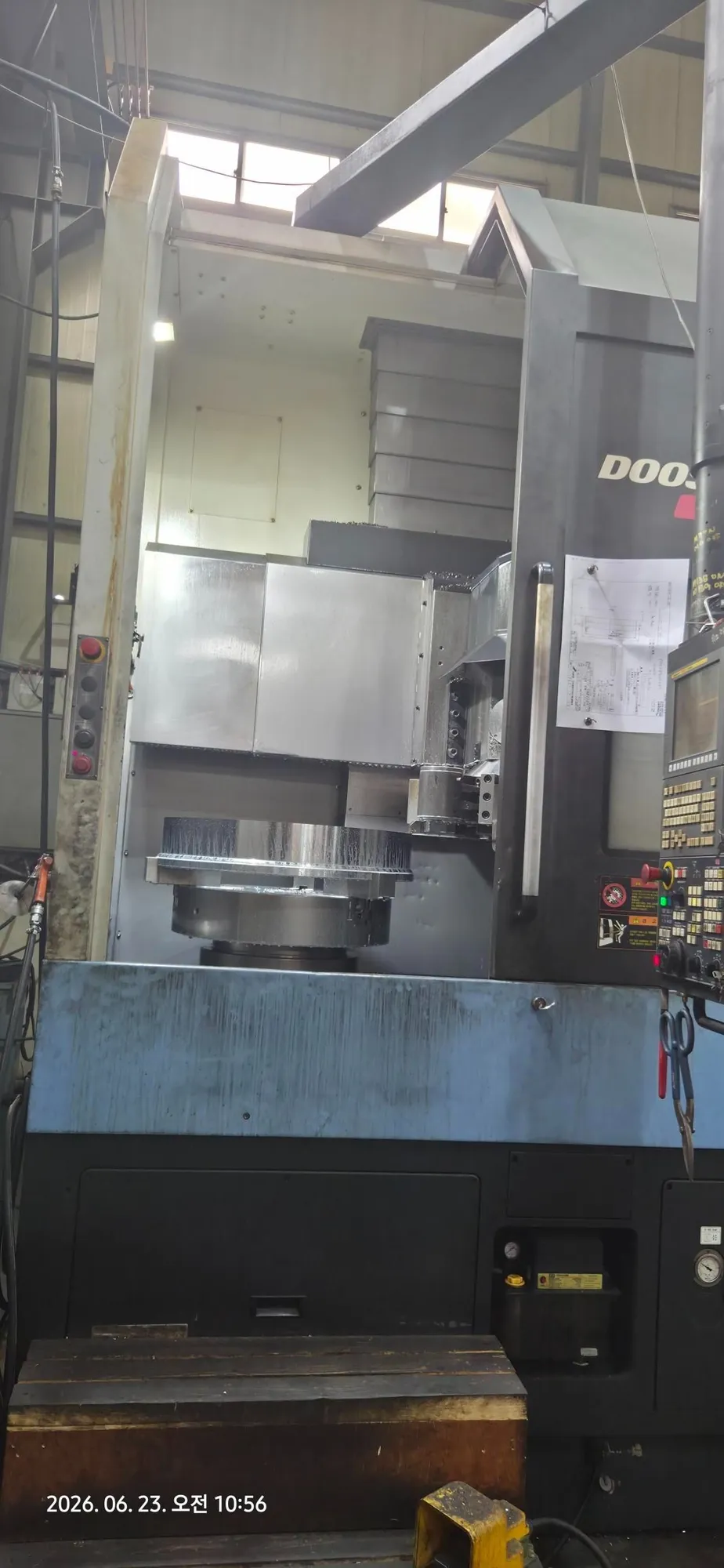

USED 2014 DOOSAN VT900

Illinois, United States
166Listings|112Followers
Overview
Vertical Boring Mills (incld VTL)

2014 Doosan VT 900 CNC vertical turning lathe; equipped with FANUC I Series control, chip conveyor, and 2-speed gearbox. Offers 24" table diameter, 39.4" swing, and 33.5" turning height. Includes manuals and tool holders. Choice of 3-jaw hydraulic chuck.

Specs
Table Diameter
24"
609.6 mm
Swing Diameter
39.4"
1,000.8 mm
Turning Height
33.5"
850.9 mm
Spindle Nose
A2 - 15
A2 - 15
Table Speed
1,800 RPM
1,800 RPM
Main Motor
60 hp
44.7 kW
Number Of Ranges
2
2
X - Axis Travel
18.5"
469.9 mm
Z - Axis Travel
33.5"
850.9 mm
Rapid Traverse Rate - X
797 ipm
Rapid Traverse Rate - Z
797 in/min.
20.2 m/min.
Turret Configuration
12 station
12 station
Machine Weight
27,800 lb
12,609.9 kg
Control
CNC (FANUC SERIES I CNC COLOR CONTROL)
CNC (FANUC SERIES I CNC COLOR CONTROL)
Equipped With

FANUC I SERIES CONTROL
CHIP CONVEYOR
2-SPEED GEARBOX
FULL COMPLIMENT OF TOOL HOLDERS
ALL MANUALS
60/50HP AC
24" OR 32" 3-JAW HYDRAULIC CHUCK (YOUR CHOICE)
