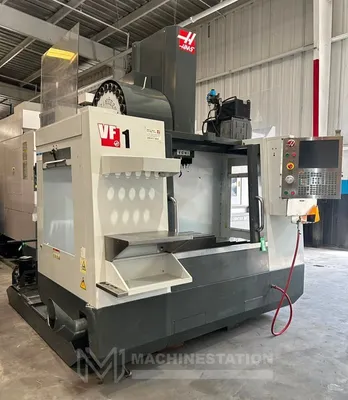

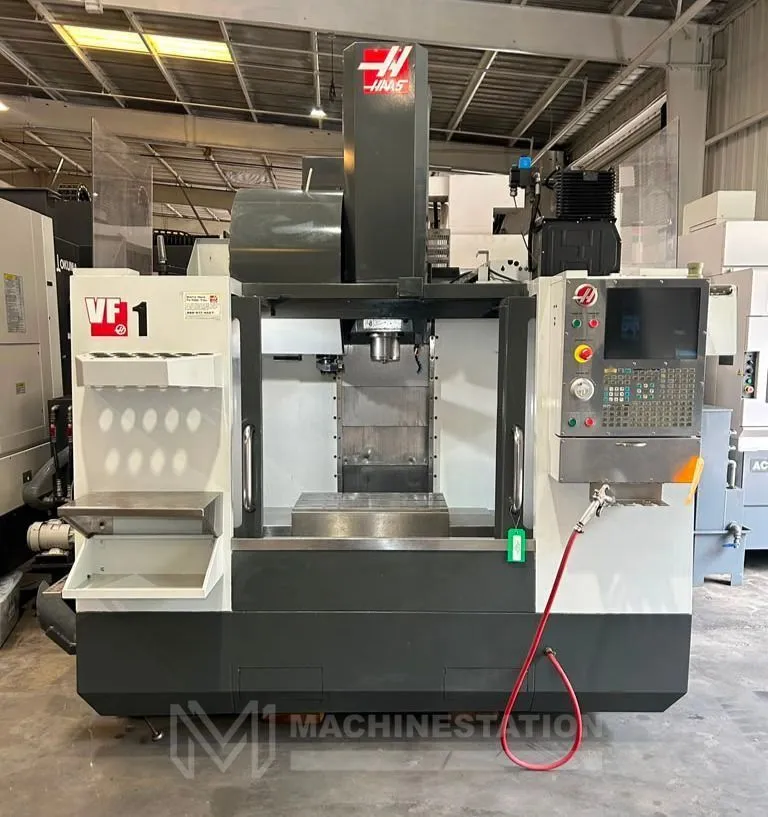

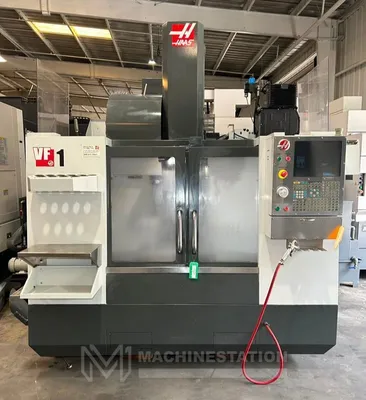

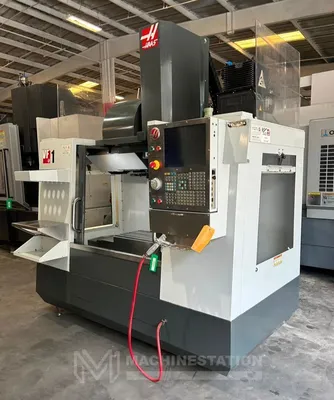

USED 2010 HAAS VF-1

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

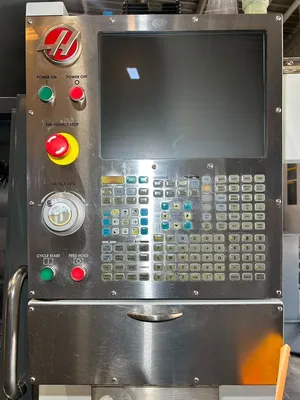

Haas CNC Control
Linear Ways Construction
CAT-40 Spindle Taper
Rigid Tapping

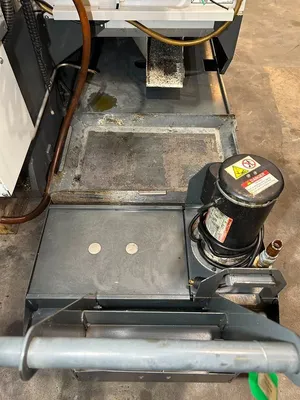

Coolant Tank

Travels:
X-Axis: 20″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

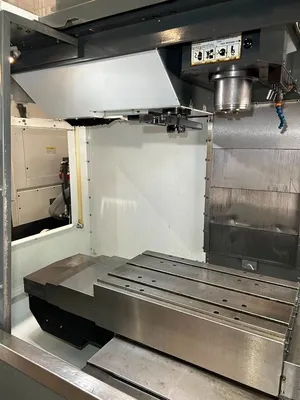

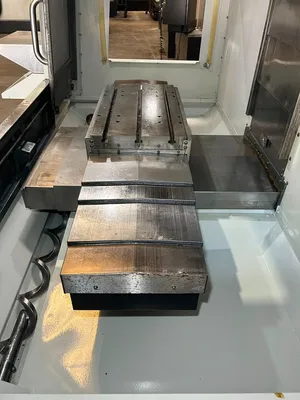

Table:
Length: 26.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

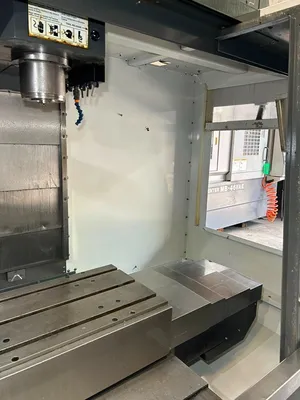

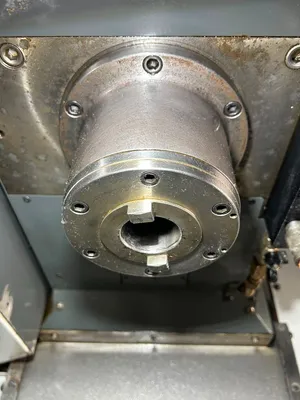

Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 24 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi 4 scfm

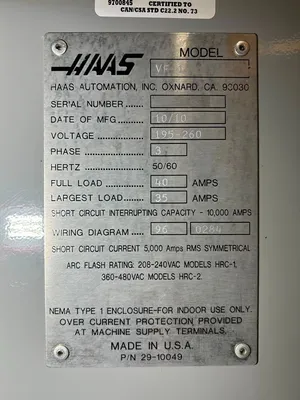

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 7800 lbs
