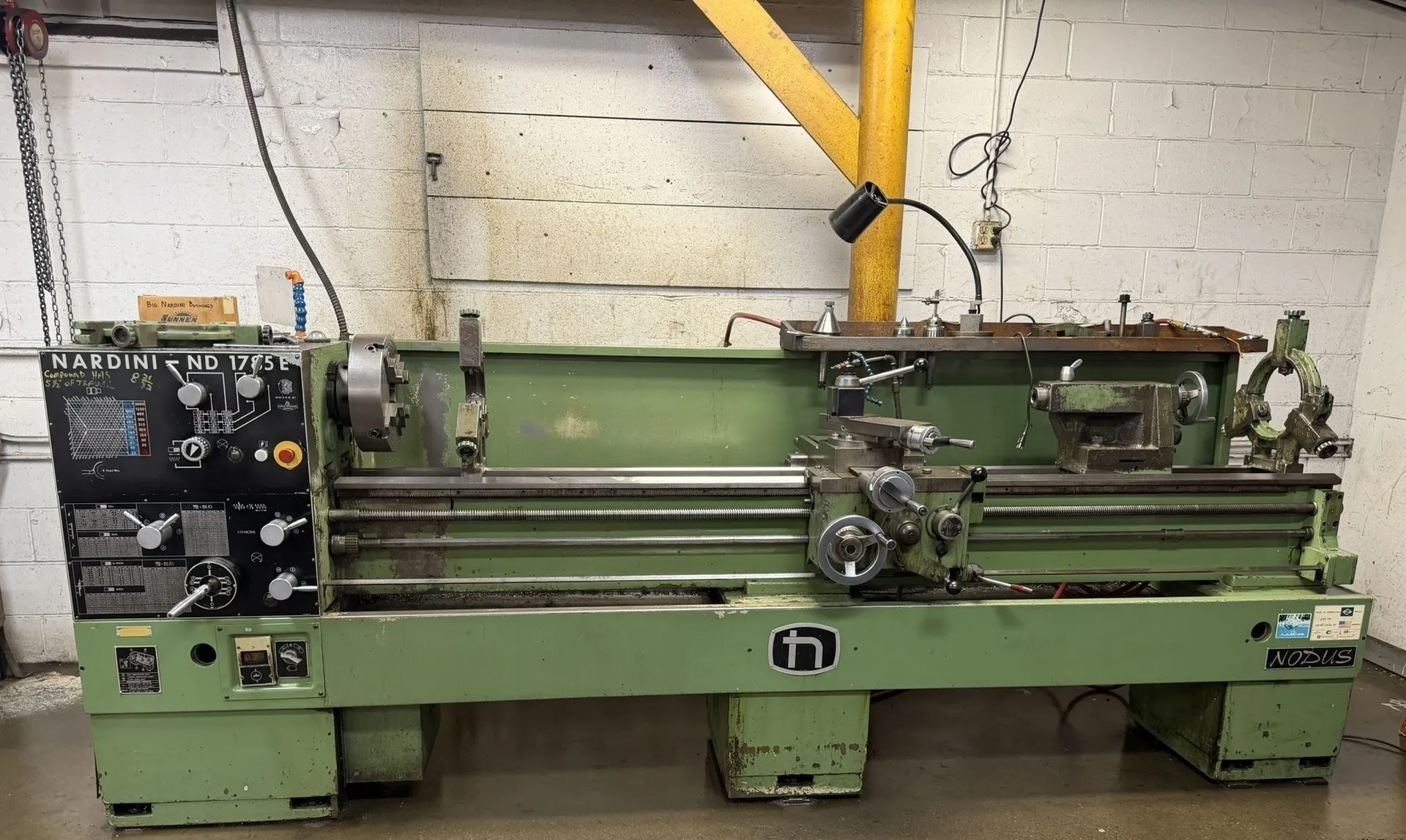

USED NARDINI ND-1785E
Overview
The Nardini ND1785E is a heavy-duty, manual gap-bed engine lathe designed for high-precision machining. It features a large capacity, variable spindle speeds, and robust threading capabilities, making it highly versatile for both tool-room and production environments
Specs
Features:
12” 4 Jaw chuck
Taper Attachment
(2) Steady Rests
(1) Follow Rest
Quick Change Tool Post
Tailstock
(2) Live Centers
(1) Drill Chuck
(1) Face Plate
Inch/Metric Threading w/extra gears
2 Speed Motor
Chip Pans
Capacity:
Swing Over Bed: 17.68"
Swing in the Gap: 20"
Swing Over Cross Slide: 11"
Distance Between Centers: 85"
Bed Length: 109"
Spindle:
Spindle Bore (Through Hole): 2.03" (typically listed as 2")
Spindle Speed Range: 28 to 2,000 RPM (Variable speed)
Motor & Electrical:
Main Motor Power: 8 HP
Electrical Requirements: wired 440V, 3-Phase
Tailstock & Feeds:
Quill Travel: 8"
Threading: Capable of both SAE (Inch) and Metric threading
Dimensions & Weight:
Machine Dimensions: ~141" L x 42" W x 64" to 67" H
Approximate Shipping Weight: ~7,000 lbs
