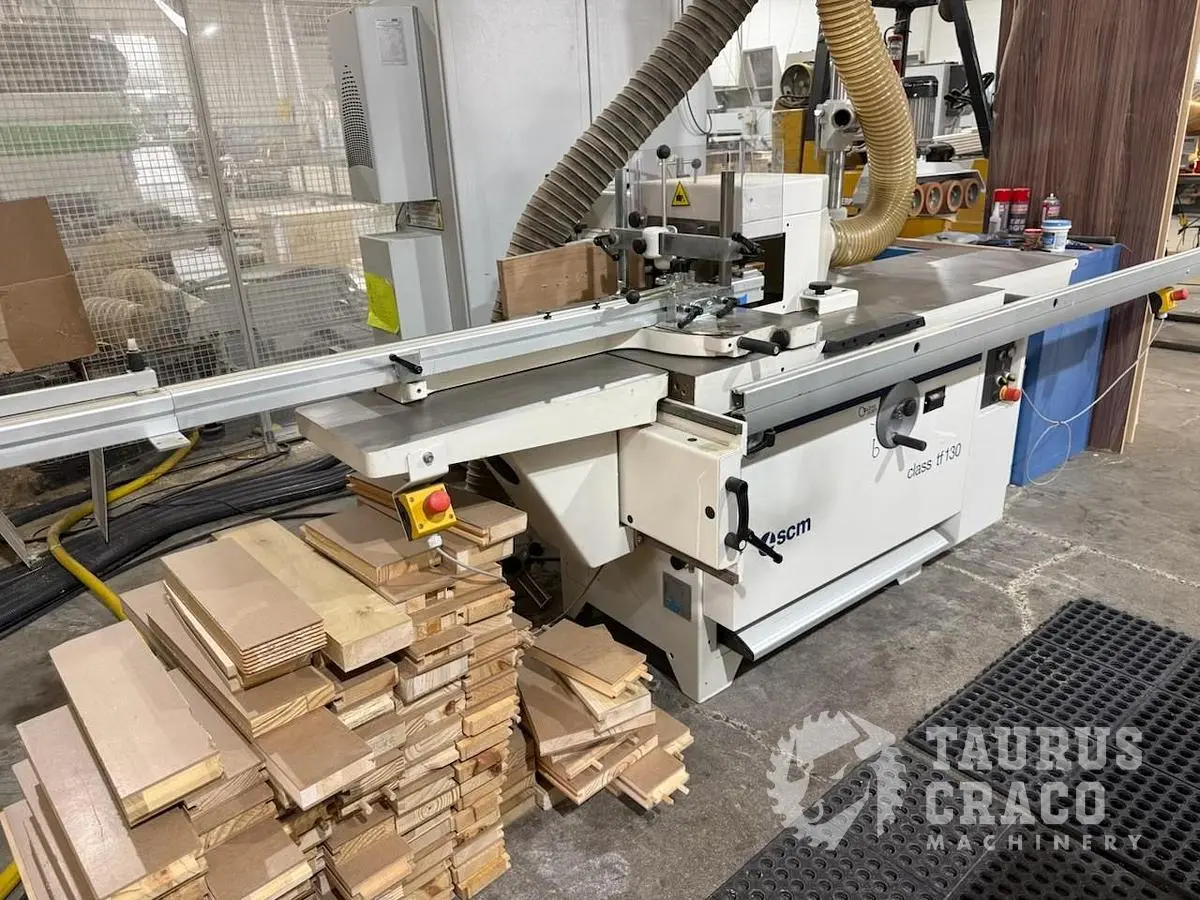

USED 2019 SCM CLASS TF 130 SHAPER PACKAGE

Manufacturer: SCM Group
Model: Class TF 130
Year of Manufacture: 2019
Condition: Used – Excellent Condition
Machine Type: Tilting Spindle Shaper, Power Feeder & Mortising Table
The SCM Class TF 130 is a professional-grade European spindle shaper designed for precision profiling, tenoning, joinery, raised panel production, and custom moulding applications. Built for demanding woodworking environments, the TF 130 combines heavy-duty construction, high spindle capacity, and versatile tooling capability in a compact industrial package.

This machine is configured as a complete shaping workstation and includes a mortising table, and independently powered feeder system, making it suitable for cabinet manufacturing, furniture production, architectural millwork, door components, and custom woodworking operations.

The machine has been maintained in excellent condition, has low operating hours, and remains under power for inspection and demonstration.

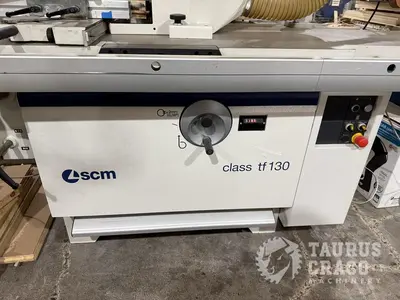

SCM Class TF 130 Tilting Spindle Shaper
Heavy-duty cast iron table
Tilting spindle configuration
Digital spindle height readout

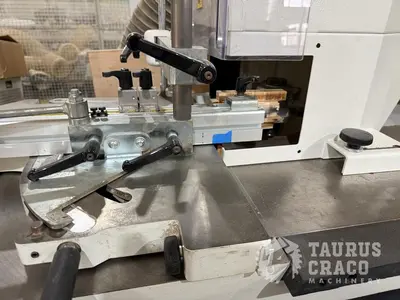

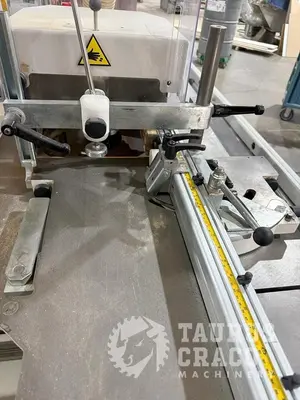

Precision adjustable fence system
Mortising table
Power feeder (220V)
Manuals
Spare parts
Tilting spindle design
Reverse spindle rotation
Electronic spindle brake
Multiple spindle speed selections
Digital spindle height positioning
Heavy-duty cast iron construction
Professional fence system with precision adjustment
Industrial European build quality
Low operating hours
Maximum useful spindle length: 180 mm (7")
Spindle speeds:
3,000 RPM
4,500 RPM
6,000 RPM
7,000 RPM
10,000 RPM
Maximum profiling tool diameter: 250 mm (9.8")
Maximum retractable tool diameter below table: 300 mm (11.8")
Maximum tenoning tool diameter: 300 mm (11.8")
Approximate table size: 1200 mm × 730 mm
Heavy-duty cast iron construction
11 HP spindle motor
Voltage: 600V
Phase: 3 Phase
Frequency: 60 Hz
Voltage: 220V
Independently powered feeder system
Length: 120"
Width: 48"
Height: 63"
Weight: Approx. 1,850 lbs (840 kg)
Excellent overall condition
Low operating hours
Under power
Complete machine package
Manuals included
Spare parts included
The SCM Class TF 130 is one of SCM's most respected spindle shapers, offering industrial performance, flexibility, and precision. The inclusion of the mortising table, and independently powered feeder system significantly expands the machine's capabilities, creating a complete shaping and joinery workstation suitable for both production and custom woodworking environments.

This package presents an excellent opportunity to acquire a well-equipped, low-hour SCM shaper in excellent operating condition.
