USED 2019 SCM OLIMPIC K 560 R HP

Lot Closes:: 7/31/2026 9:00:00 AM PT

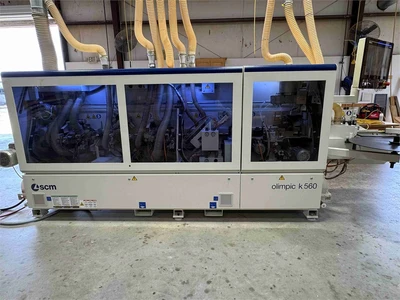

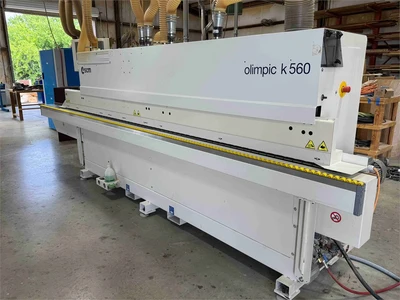

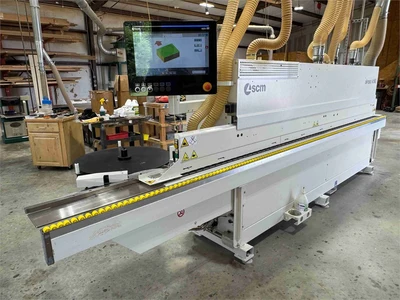

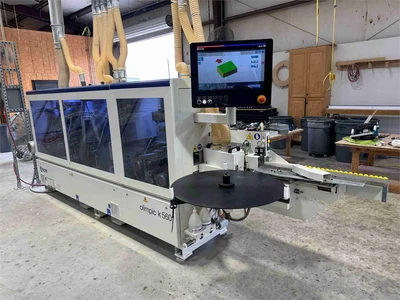

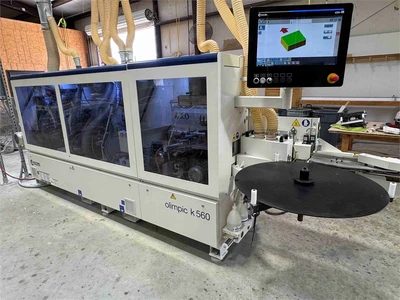

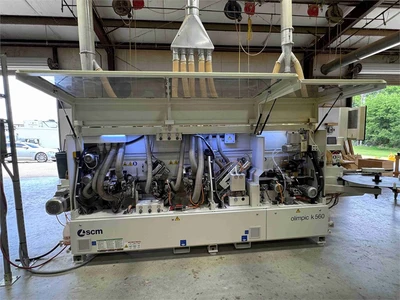

SCM "Olimpic K 560 R HP" Edgebander

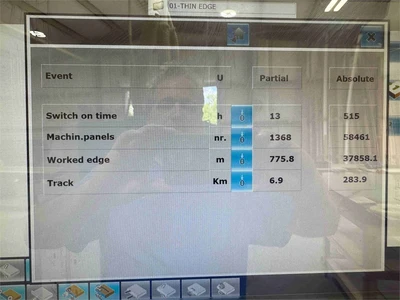

Only 515 run hours!
Edge capacity, 0.4 to 6 mm
Min. Panel width 60 mm (2.375"); Min Panel length 140 mm (5.5").  Min./max. Panel thickness 8 mm - 54 mm (0.375" - 2.125"); Minimum distance between panels 600 mm (24").

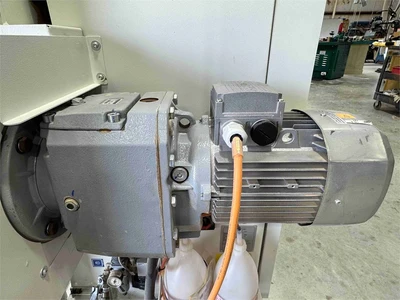

40 & 60 FPM feed speed via 2.5 HP feed drive motor
Motorized top beam positioning

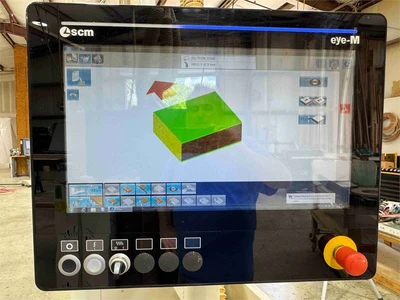

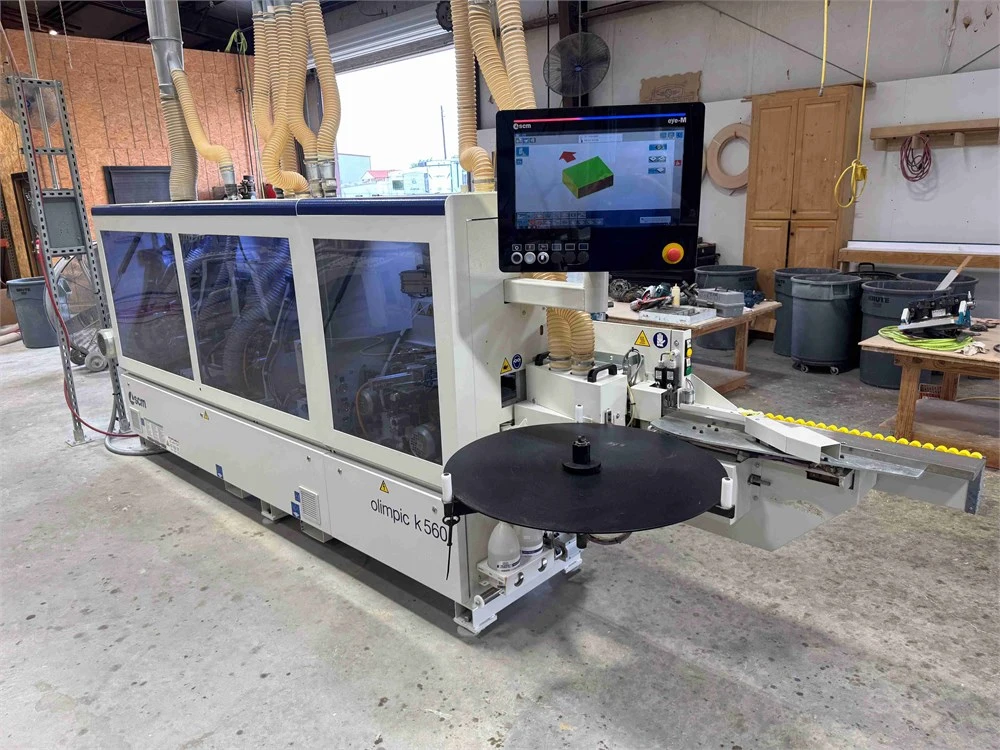

Touch screen controller

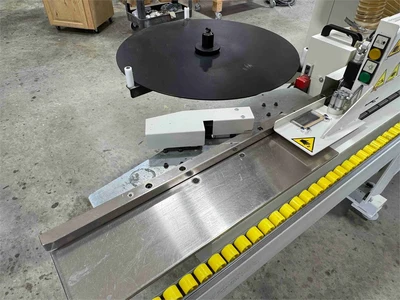

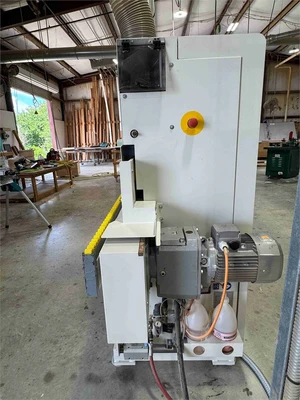

Edgebanding infeed table, 32" diameter
Guillotine, 3 mm capacity

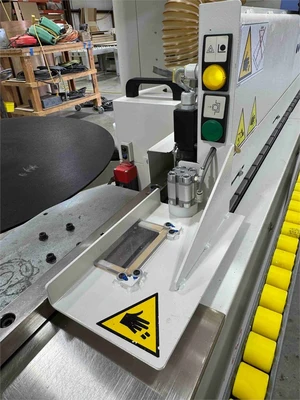

Adjustable infeed fence

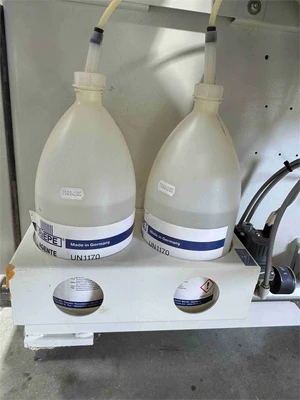

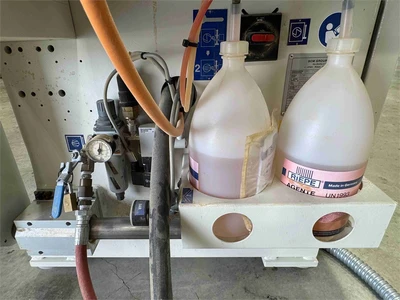

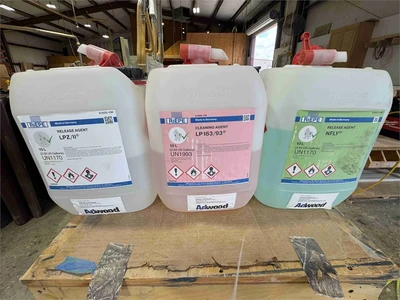

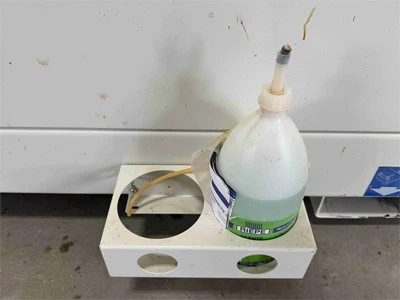

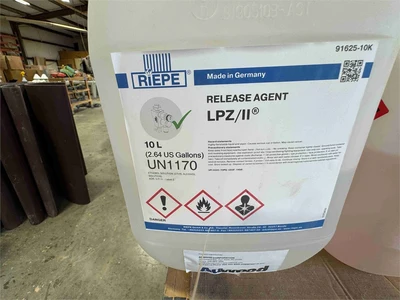

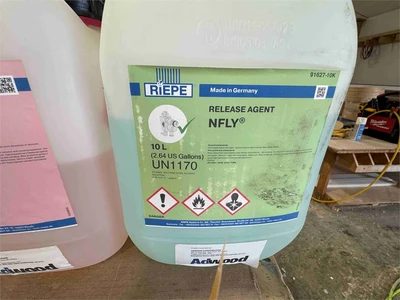

Anti-adhesive spray
Pneumatic panel spacing device
Pre-milling station, (2) 2.0 HP motors

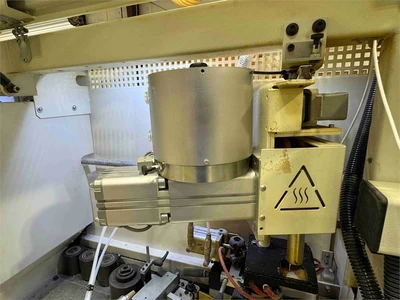

SGP glue pot with application roller (capable of running EVA or PUR)

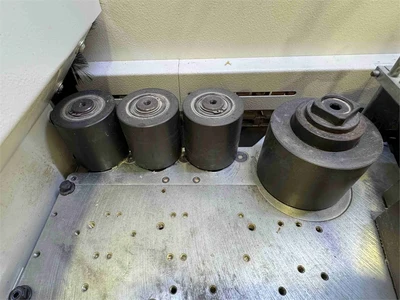

Pressure station with (1) driven and (3) idle rollers
(2) motor end trimming station, 0.5 HP, 12,000 RPM motors, swivels 0° - 15° for straight & angle cutting

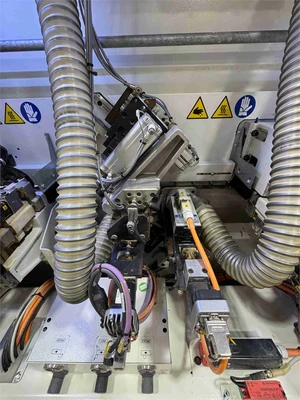

Top/bottom trimming station, (2) motors, 0.7 HP, 12,000 RPM, tilting &pneumatic positioning
(2) motor corner rounding station, 0.80 HP motors
Top/bottom profile scraping station with external collection box
Top/bottom glue scraping station
Top/bottom buffing station with misting, 0.25 HP motors, 2800 RPM, tiltable

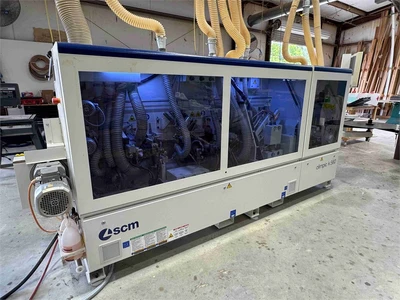

Lighted sound enclosure
Outboard roller support

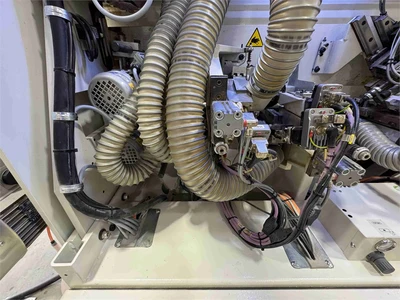

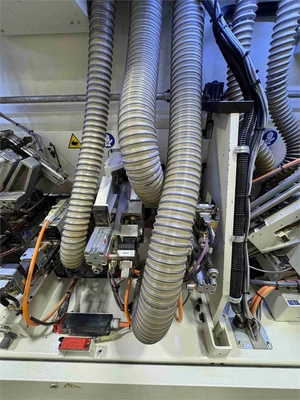

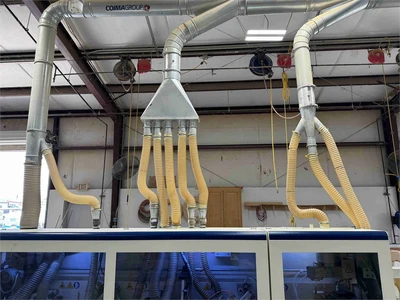

Dust manifold (all other ducting NOT included)
Extra glue pot

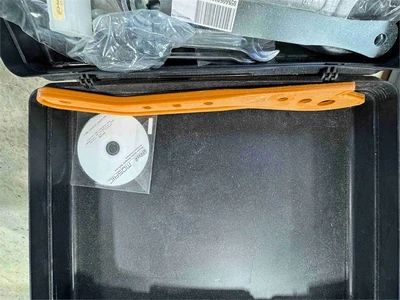

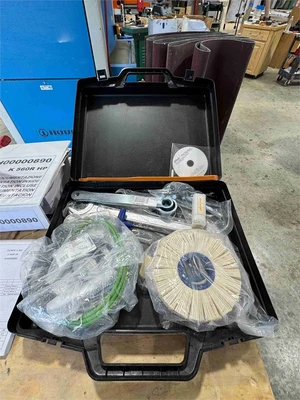

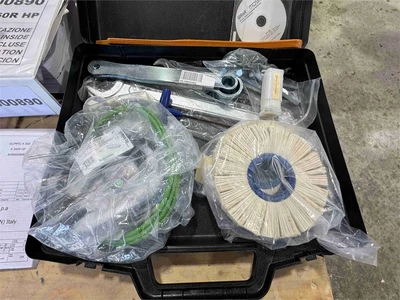

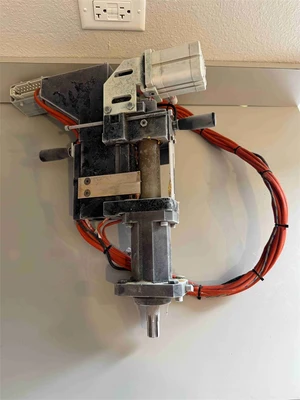

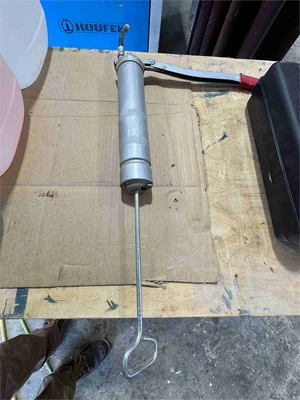

Spare parts and accessories

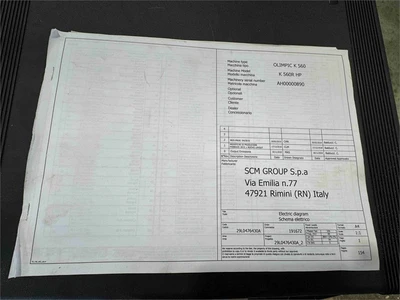

Manuals
