USED 2018 WALKER FILTRATION PD0300N-3XF-1372A

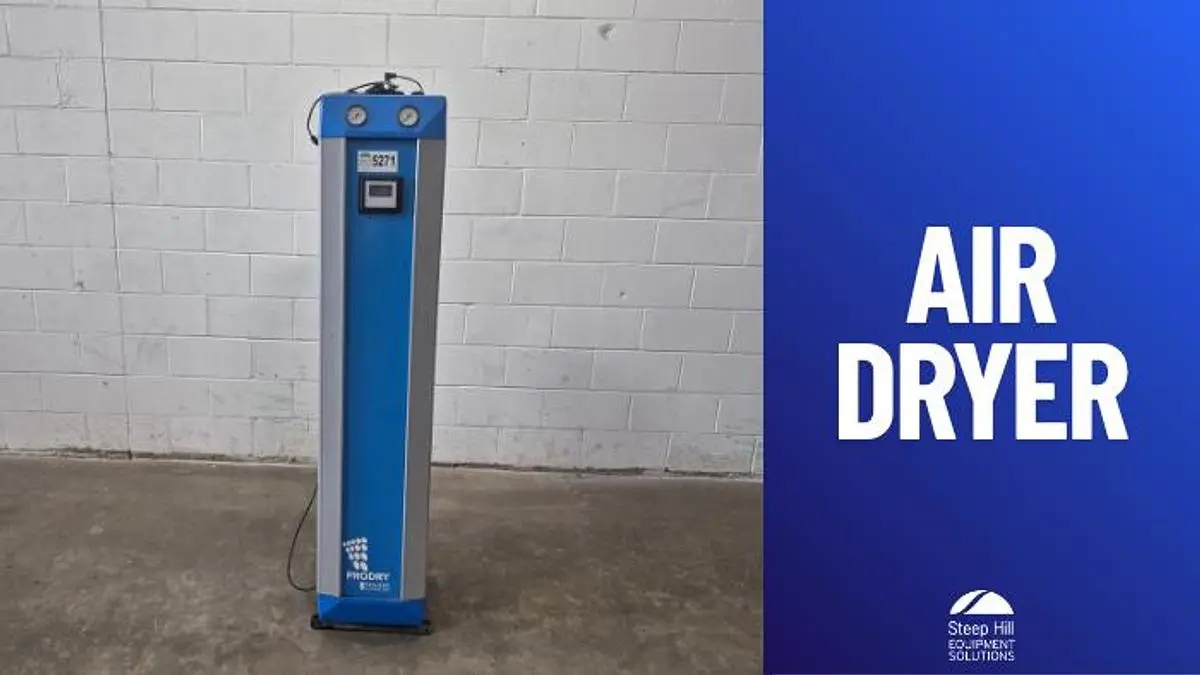

Walker Filtration Compressed Air Dryer
This equipment is used to remove moisture, water vapor, and trace contaminants from industrial compressed air systems. When air is drawn in and compressed by an air compressor, it becomes intensely hot and traps large amounts of atmospheric water vapor. As that air cools down traveling through the pipes, the vapor condenses into liquid water.
Specs:

Inlet Air Flow: Optimized for 7.0 bar.g / 102 psig
Flow Capacity: Rated up to 510 Nm³/hr or 300 scfm

Minimum Pressure: 4.0 bar.g / 58 psig
Maximum Pressure: 13.0 bar.g / 189 psig
Operating Temperature Range: Min 5°C (41°F) to Max 50°C (122°F)
Total Internal Volume: 113 Liters
Voltage: 24 VDC
Power Consumption: 14.3 Watts (Maximum)
Current Draw (Amperage): 0.6A

It is used in:

Outdoor or Freezing Areas: Prevents air lines from freezing up and bursting in cold weather
Automotive Paint Booths: Prevents water spots, bubbles, and blemishes in spray paint
Food & Pharmaceutical Plants: Stops mold and bacteria growth in packaging and ingredient mixing lines
Electronics & Laser Labs: Protects sensitive circuitry and laser lenses from moisture damage
Automated Manufacturing: Prevents rust and component failure in robotic pneumatic valves and cylinders
