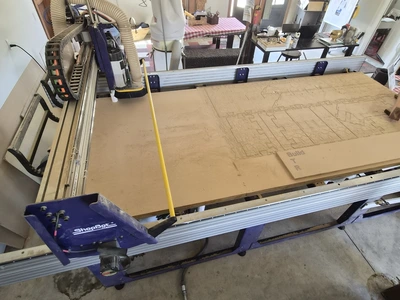

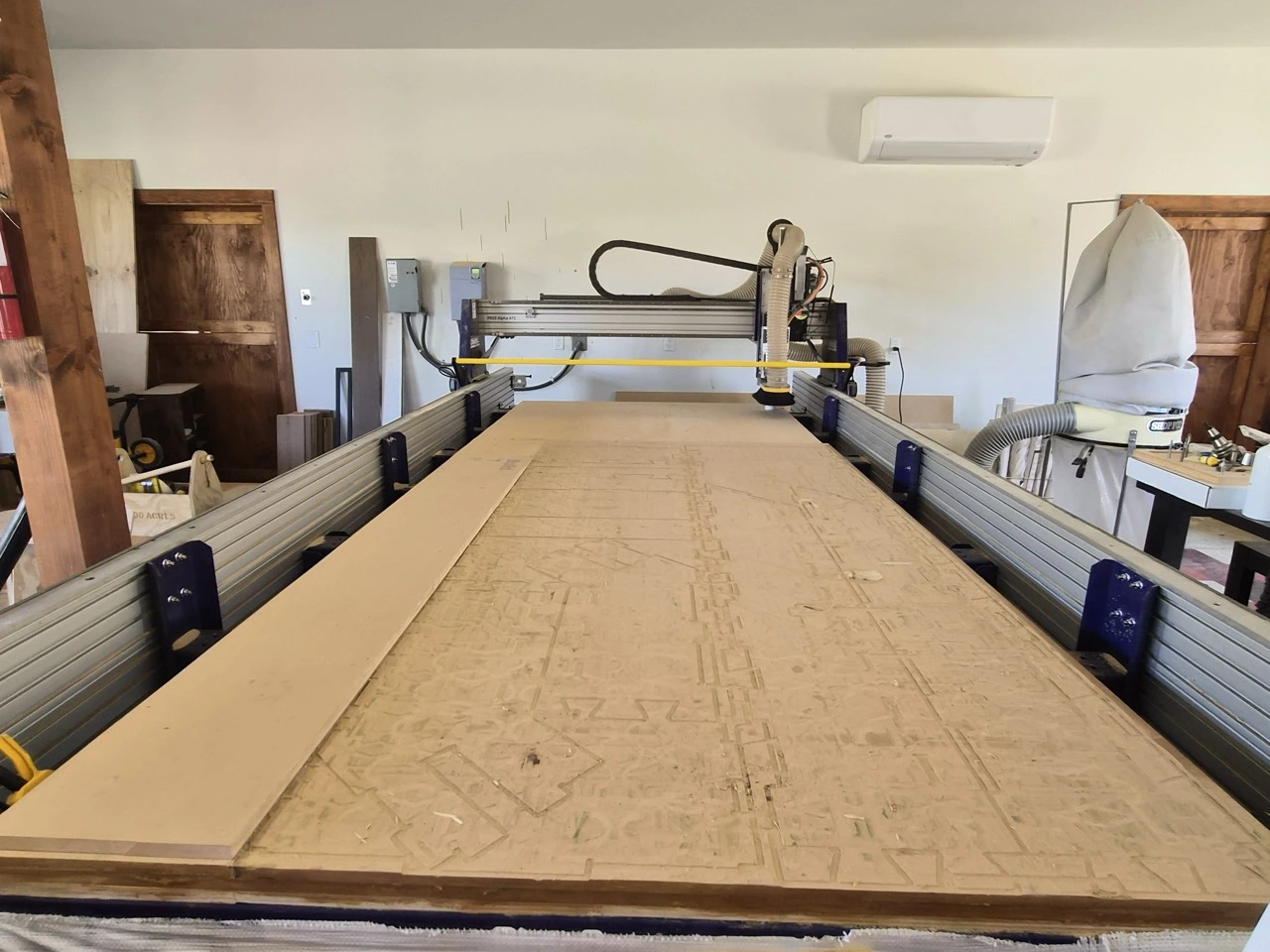

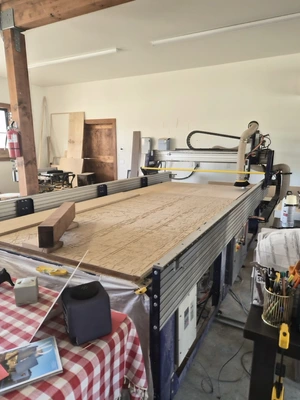

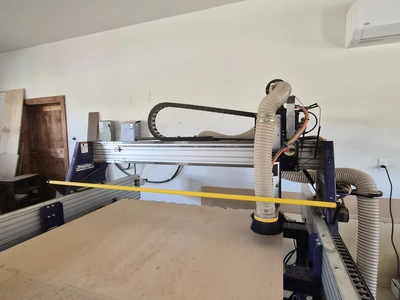

USED 2025 SHOPBOT PRS-5ALPHA

Machine Core
Model: PRS5alpha ATC 144″ × 60″ × 14″

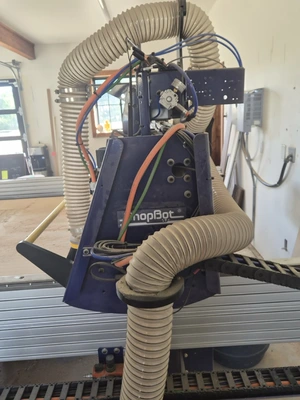

Spindle: 5 HP ATC, 1‑phase, 110V motors
X Axis Travel: 144″
Y Axis Travel: 60″
Z Axis Travel: 14″
Motor Control: Alpha closed loop, 150 lbs side force
Feed Rate: 12 ips max
Rapid Rate: 30 ips
Resolution: 0.0004″
Repeatability: ±0.002″
Max Cut Speed: 720 inches per minute
Max Rapid Speed: 1800 inches per minute
Accessories
Becker Vacuum System: 10 HP, 220V, 1‑phase, 60A, PVC 144″ × 60″, 8‑zone kit
Cradle Hose Kit

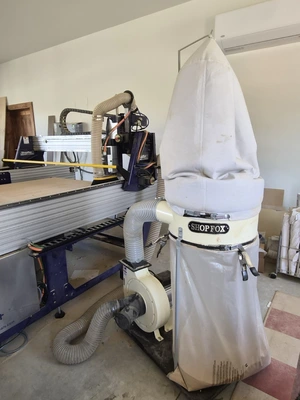

Dust Collector: 1.5 HP, 60 Hz, with 4″ × 25′ hose
Control Laptop (Lenovo Ideapad 15.6″ FHD, Ryzen 3, 8 GB RAM, 256 GB SSD, Windows 11 Home)
Aspire Software (upgrade option)

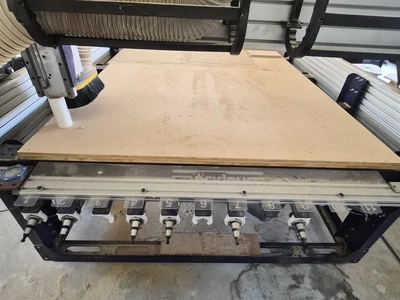

Bit Kit: 8‑piece ATC set
Bits:
3/16″ (¼″ shank), ⅝″ cut, 2‑flute “O”
¼″ SC, 2‑flute upcut
⅜″ spiral ballnose, 2‑flute
Extra Collets: ¼″ ER32, ½″ ER32
Ramp: 46″ × 48″ × 3″ (optional)
Equipped With:
Crating, dust foot, X/Y/Z limit switches
Z‑Zero plate
Collets: ¼″ and ½″
SB3 Control Software (lifetime updates)
VCarve Pro CAD/CAM software
