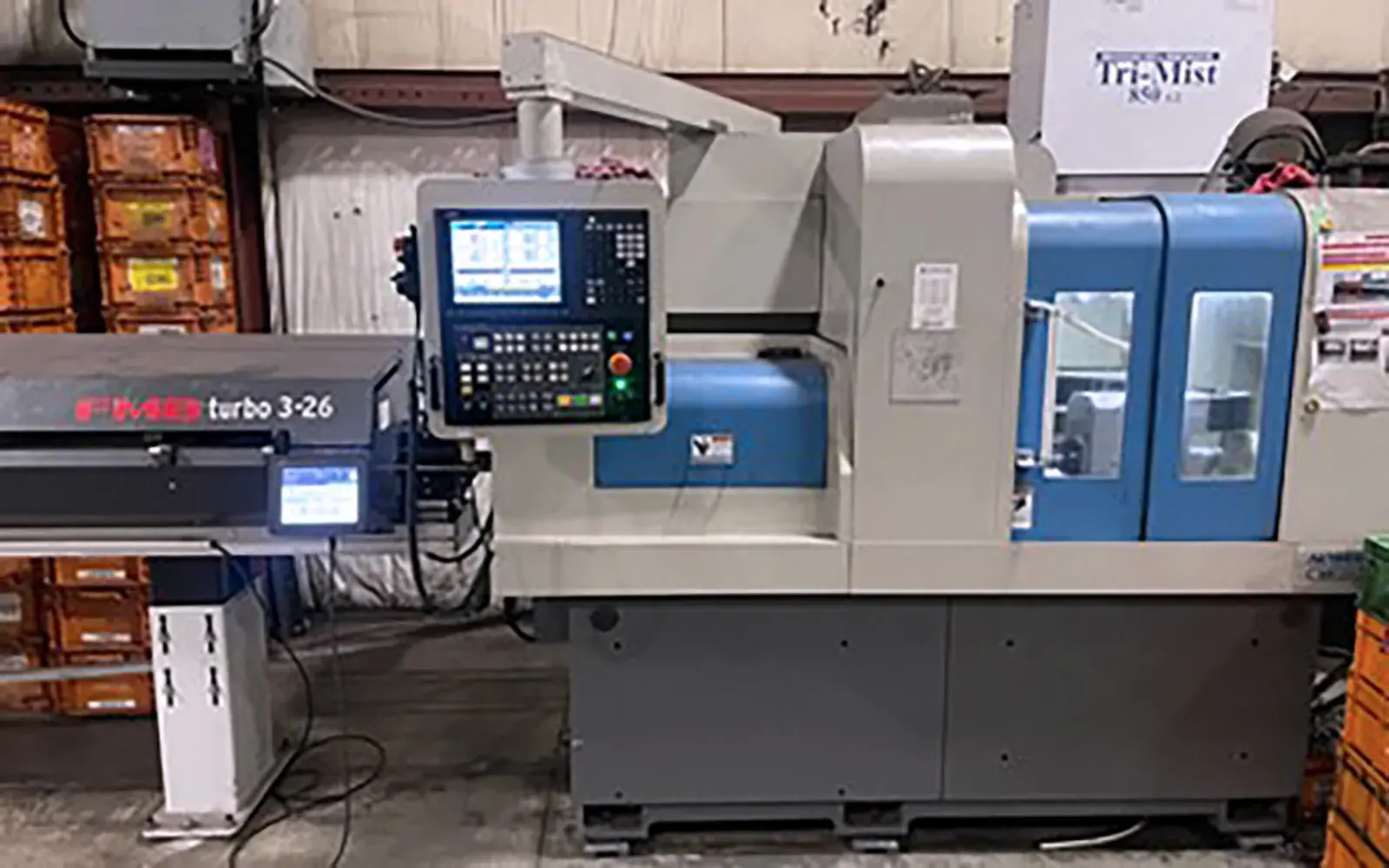

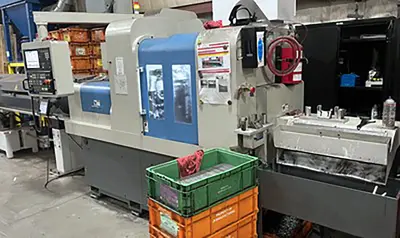

USED 2023 NOMURA NN20J3XB
Overview

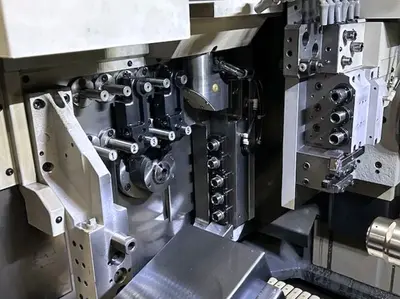

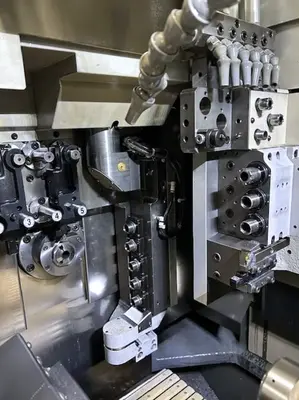

Live Tooling| Sub Spindle| FMB Barloader
The Nomura NN20J3XB CNC Swiss Screw (2023) Machine is a high-precision Swiss-type automatic lathe engineered for the efficient production of small, intricate, tight-tolerance components. Ideal for medical, aerospace, automotive, electronics, optics, and precision instrument industries, it delivers exceptional accuracy, repeatability, and productivity for machining complex parts from bar stock in high-volume manufacturing environments.
Specs
Max Machining Diameter: Ø20mm
Max Machining Length: 200mm / 1 Chuck
Max Parts Unloading Length: 93mm
Main Spindle Through-Hole Diameter: Ø23mm
Spindle rpm (Main/Sub): 10,000 RPM
Sub Spindle Chucking Diameter: Ø20mm
Max Number of Tools: 28
Max Machining Drill: Ø10mm
Max Machining Tap: M8
O.D. tool: 6 (12.7x150 mm)
I.D. tool: 4 (ER16) (OP: Rear 4)
Cross Drill: 5 (ER16)
Cross Drill RPM: 6,000 RPM
* SUB - O.D. Tool: 2 (12.7x150 mm Max)
* SUB - I.D. Fixed Tool: 3 (ER16)
* SUB - Cross Drill: 4 (ER16)(B2 Axis)
* SUB - Cross Drill RPM: 6,000 RPM
Rapid Feed Rate: X1, Y1, X2, Y2: 28mm/min
Z1, Z2: 30mm/min
Min Command Unit: 0.00001 mm
C-Axis Min Command Unit (Main/Sub): 0.00001°
Main Spindle Motor: 3.7/1.5 kW
Cross drill motor: 1.5/0.55 kW (Mitsubishi)
Sub Spindle Motor: 3.7/1.5 kW
Sub Rotary Motor: 1.5/0.55 kW (Mitsubishi)
Coolant Pump (Main/Sub): 0.25 kW x 2
Lubricant pump: 0.015 kW
Main spindle center height : 1,010 mm
Input power capacity: 17 kVA
Air Pressure/Flow Rate: 0.6 MPa.35L/min
Coolant Tank: 160 L
W x D x H: 2,411 x 1,478 x 2,005 mm
Weight (Standard Accessories Included): 2,800 kg
Equipped With

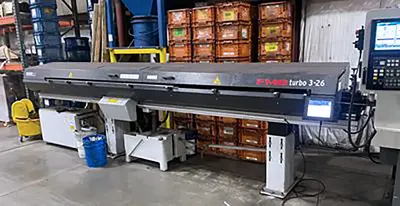

FMB Turbo 3-26 barloader
Tool Presetter
Tri Mist 850
JBS Magic Guide Bushing
Long Part Extraction package
Fire Trace system
