USED 2024 BERNARD AQ-10

Condition

Used – Tested / Never Placed in Process Service

Description

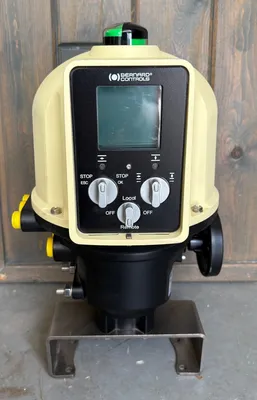

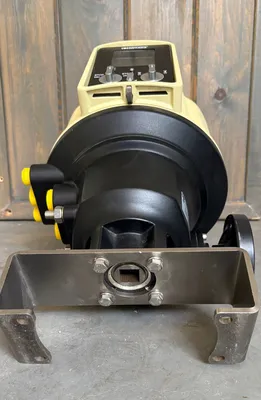

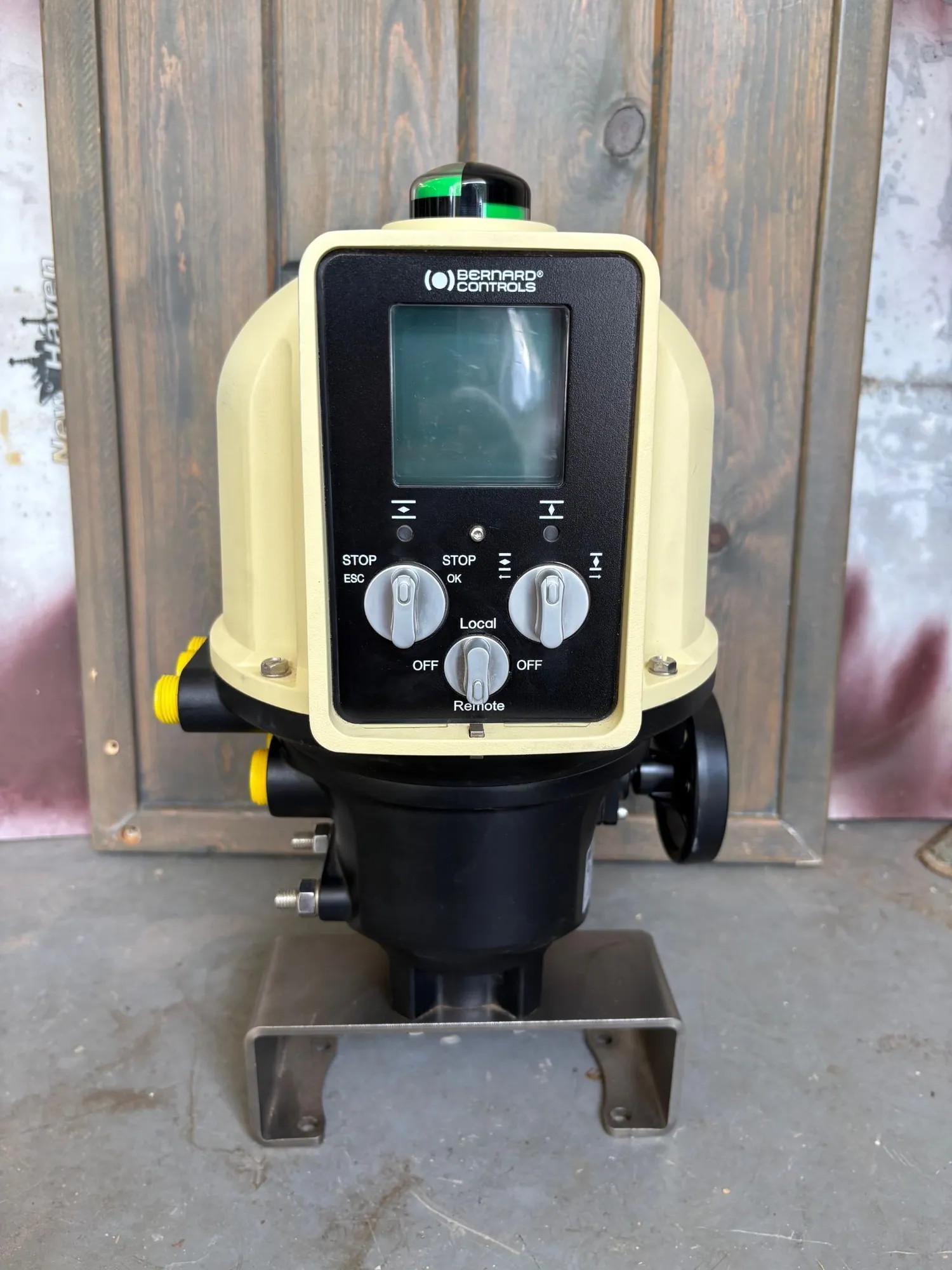

Six Bernard Controls AQ10 electric quarter-turn actuators available.

Manufacturer: Bernard Controls
Model: AQ10
Configuration: AQ0010UJ021LA000C0
Original Sales Order: BCU0018613
Control: LOGIC V2
Power: 3 Phase
Voltage: 440–480 VAC / 460V nominal
Frequency: 60 Hz
Motor: 0.03 kW
Current: 0.24 A
Torque: 74 ft-lbf / approximately 100 Nm
Operating time: 21 seconds
Duty: 30%
Turns: 0.25
Enclosure: NEMA 4

These actuators were originally installed on 2" and 3" ball valves as part of an industrial valve assembly. The assemblies were commissioned and the actuators were stroked/tested during the original installation.

They were never placed into production/process service. The end user subsequently changed the application from electric to pneumatic actuation, and the Bernard actuators were removed.

The units are in good overall condition. Some have minor cosmetic scuffs from transportation and handling after removal. A small number may be missing mounting/drive inserts; these units will be identified separately if the missing components cannot be located.

Quantity currently available: 6

Up to 4 additional units may potentially be available.

Multiple-unit/lot purchases preferred. Additional photographs and nameplate information available upon request.
