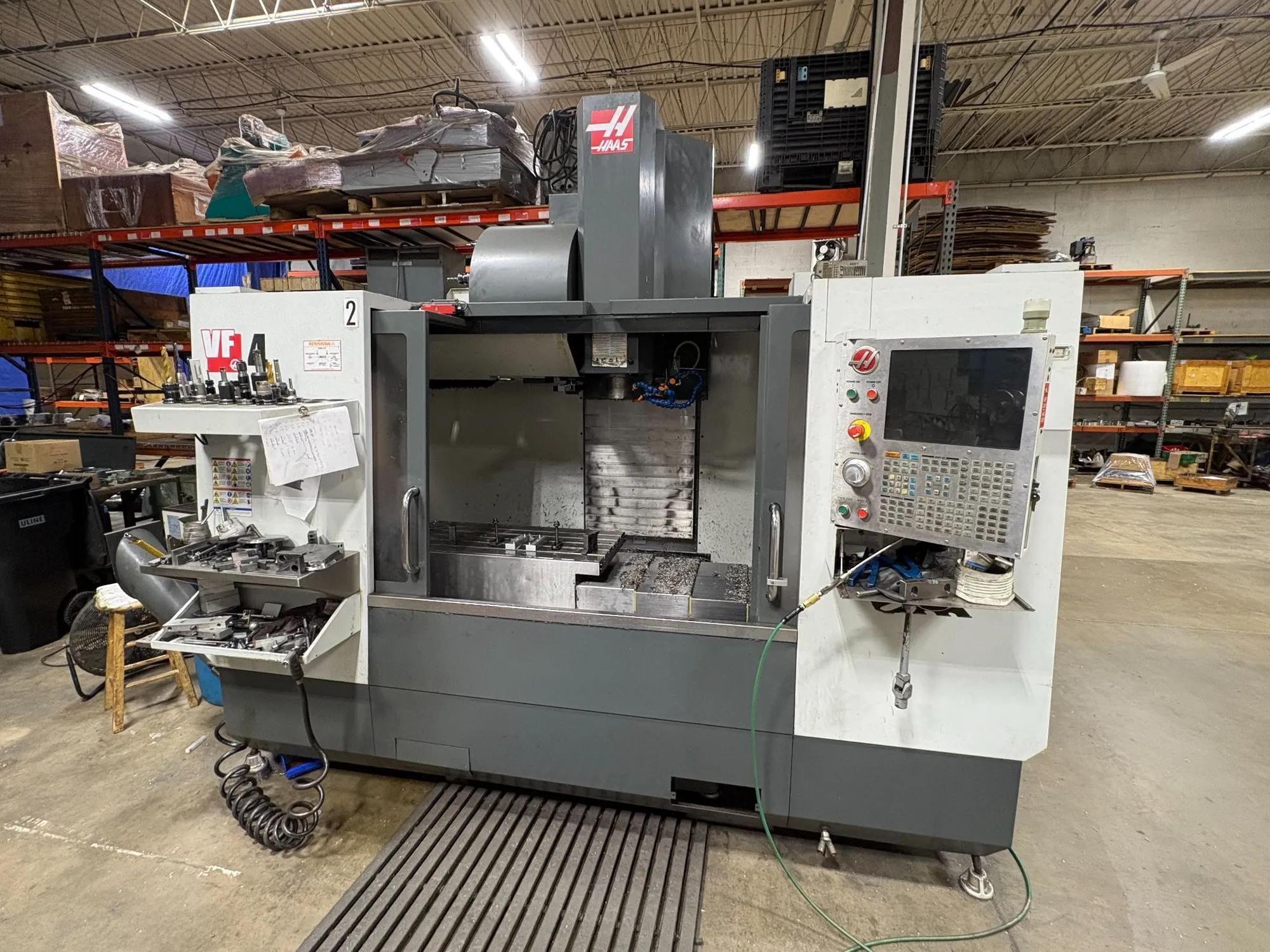

USED 2012 HAAS VF-4

SPINDLE NOSE TO TABLE (- MAX.): 29"
SPINDLE NOSE TO TABLE (- MIN.): 4"
TABLE:
LENGTH: 52"
WIDTH: 18"
T-SLOT WIDTH: 5/8"
T-SLOT CENTER DISTANCE: 3.15"
NUMBER OF STD T-SLOTS: 5
MAX. WEIGHT ON TABLE (EVENLY DISTRIBUTED): 3500 LBS.
SPINDLE:
MAX RATING: 30 HP
FEEDRATES:
RAPIDS ON X: 1000 IN/MIN
RAPIDS ON Y: 1000 IN/MIN
RAPIDS ON Z: 1000 IN/MIN
MAX. CUTTING: 650 IN/MIN
AXIS MOTORS:
MAX. THRUST X: 2,550 LB
MAX. THRUST Y: 2,550 LB
MAX. THRUST Z: 4,200 LB
TOOL CHANGER:
TYPE Sidemount
CAPACITY: 24
MAX. TOOL DIAMETER (FULL): 3.5"
MAX. TOOL WEIGHT: 12 LB
TOOL-TO-TOOL (AVG): 4.2 SEC
CHIP-TO-CHIP (AVG): 4.5 SEC
AIR REQUIRED: 4 SCFM 100 PSI
COOLANT CAPACITY: 55 GAL
MACHINE DIMENSIONS: L: 118" x W: 110" x H: 119.5"
MACHINE WEIGHT:13,300 LBS.
