USED PINES #2

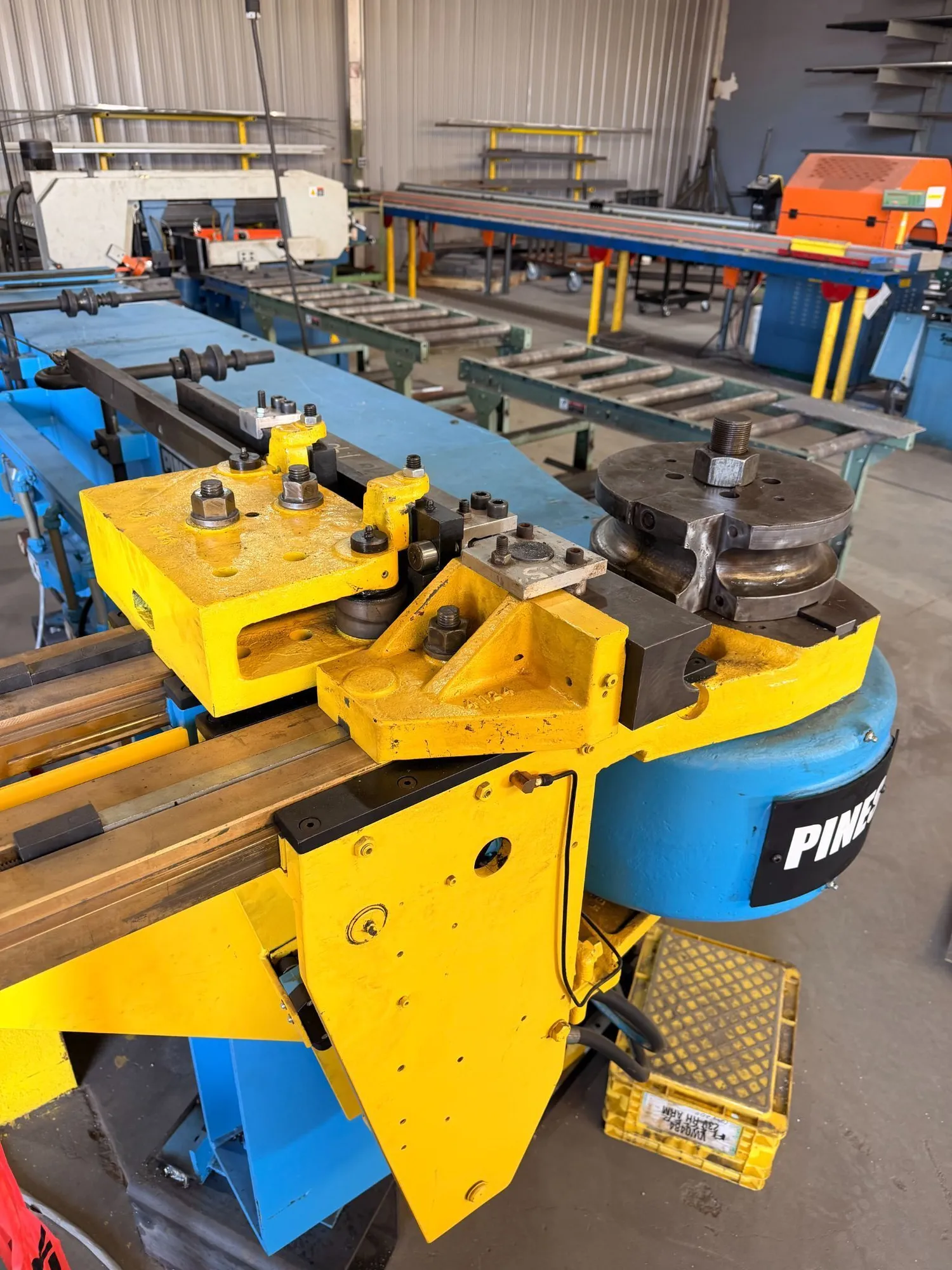

Pines #2 Tube Bender

Round Tubing (Mild Steel): 3.0" Outside Diameter (OD) x .109" wall thickness.
Round Tubing (Non-Ferrous): 3.0" OD x .188" wall thickness.
Steel Pipe (Schedule 80): 2.0" IPS (Iron Pipe Size).
Maximum Bend Radius: 12 inches (305 mm).
Maximum Bend Angle: 180 degrees (plus overbend allowance for material springback).
Standard Over-Mandrel Length: 7' 5" (can vary if built with a custom bed extension).
System Hydraulics: 2,000 PSI operating pressure driven typically by a 10 HP motor.
Approximate Weight: Around 4,500 lbs
