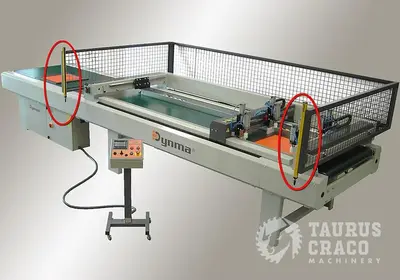

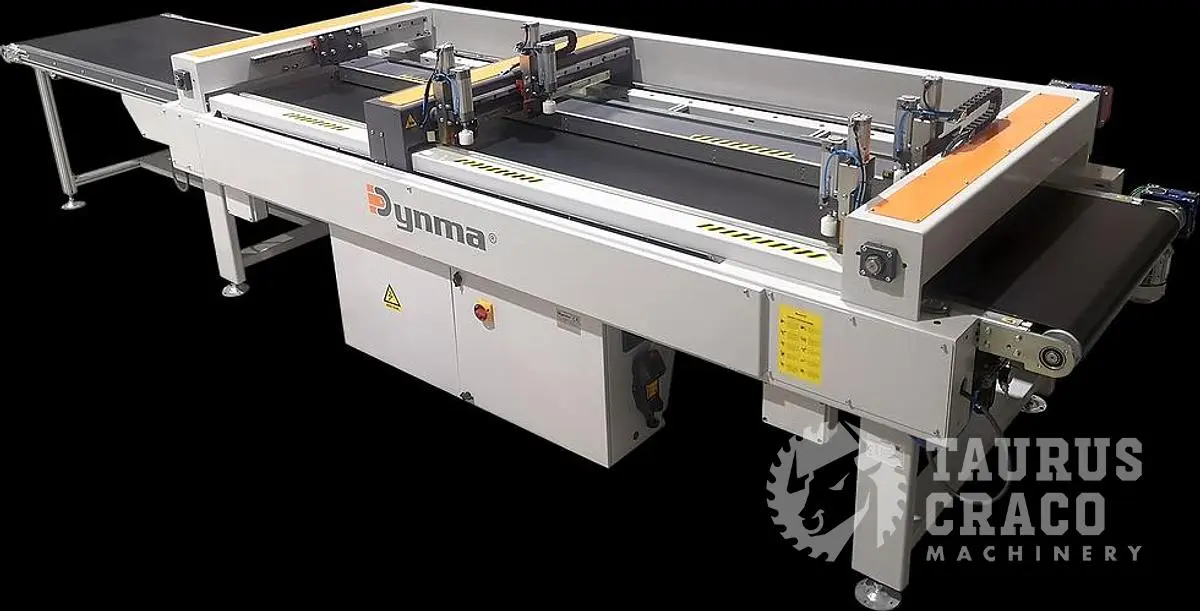

USED 2016 DYNMA ADP-2590 AUTOMATIC DOOR & FRAME PRESS

Manufacturer: Dynma
Model: ADP-2590
Year of Manufacture: 2016
Condition: Used – Good Operating Condition
Machine Type: Automatic Door & Frame Press / Door Clamp / Assembly Press
The Dynma ADP-2590 is a fully automatic electro-mechanical press designed for the accurate assembly and pressing of doors and frames in high-production manufacturing environments. Developed from Dynma's extensive experience in door and frame assembly, the ADP is engineered to provide precise, repeatable clamping while maintaining high throughput and minimal setup time.

The machine is fully automatic and self-adjusting, allowing operators to efficiently process varying door sizes without extensive manual setup. It is capable of assembling both 45° mitered constructions and 90° frame assemblies, making it suitable for a wide range of door manufacturing applications.

Designed for modern production environments, the ADP-2590 incorporates a powerful touchscreen control system that manages machine functions, production settings, and alarm monitoring through an intuitive operator interface.
Fully automatic electro-mechanical pressing system
Automatic self-adjusting design
Suitable for both 45° and 90° assemblies
Touchscreen control terminal with production and alarm management
Integrated pre-assembly area
Throughfeed production configuration
CE-compliant safety design

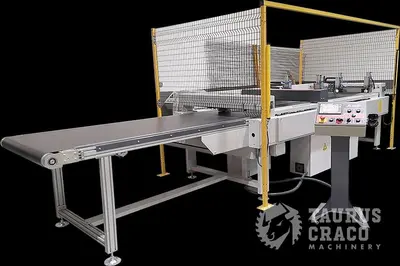

Fixed perimeter safety guarding
Ideal for mitered doors with or without dowels, delicate profiles, and glass panel assemblies
Maximum door length: 2480 mm
Minimum door length: 200 mm
Maximum door width: 880 mm
Minimum door width: 260 mm
Maximum door thickness: 60 mm
Minimum door thickness: 15 mm
The ADP-2590 automatically adjusts to the dimensions of the door being assembled, allowing efficient production while maintaining consistent clamping performance. The machine is capable of handling a variety of door styles and assemblies while maintaining dimensional accuracy throughout the pressing cycle.

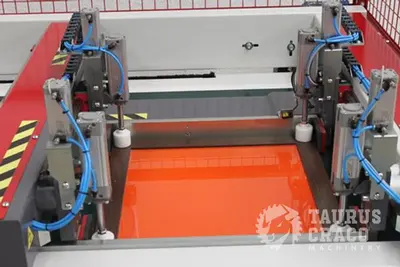

Maximum lateral pressing force (Fx): 1,300 kg
Maximum frontal pressing force (Fy): 1,300 kg
PVC conveyor belt system
Conveyor width: 900 mm
Standard conveyor transport height: 900 mm
Integrated pre-assembly zone length: 2,100 mm
Voltage: 480V
Frequency: 60 Hz
Installed Power: 4 kW
Pneumatic Requirement: 5 Bar
Touchscreen operator interface
Production management functionality
Alarm monitoring system
Simple and intuitive machine operation
Overall Dimensions:
5,875 mm × 1,870 mm × 2,000 mm
Weight:
Approx. 1,700 kg (3,748 lbs)
Good operating condition
Automatic production machine
Industrial-duty construction
Recently replaced encoder
