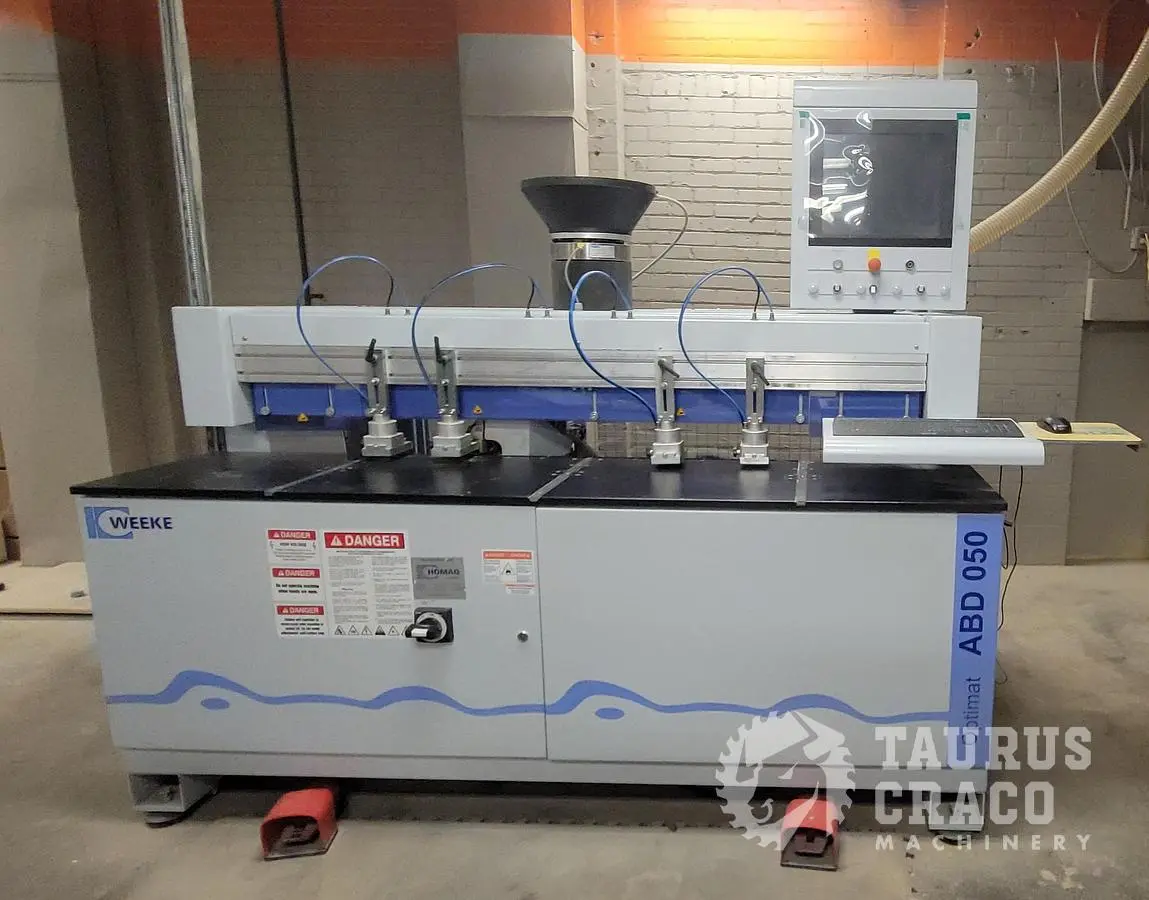

USED 2015 HOMAG WEEKE OPTIMAT ABD050/12/NA CNC DRILL & DOWEL INSERTION MACHINE

Manufacturer: Weeke (HOMAG Group)
Model: Optimat ABD050/12/NA
Year of Manufacture: 2015
Condition: Used – Very Good Operating Condition
Machine Type: CNC Drill, Glue & Dowel Insertion Machine
The Weeke Optimat ABD050/12/NA is a CNC-controlled drilling and dowel insertion machine designed for the efficient production of cabinet, furniture, closet, and millwork components. The machine combines horizontal drilling, glue application, and automatic dowel insertion into a single process, reducing labor requirements while improving production consistency and accuracy.

Capable of processing parts from 20 mm to 1,250 mm in length, the ABD050/12/NA is ideally suited for both batch and custom production environments. The machine utilizes a high-speed 7,500 RPM drilling spindle and automatic dowel feeding system to deliver accurate and repeatable assembly preparation.

Built on Weeke’s proven production platform, the machine is designed as a stand-alone solution or as an ideal complement to a CNC router or machining centre.
CNC-controlled drill and dowel insertion machine
Horizontal drilling, glue injection, and dowel insertion in one operation
High-speed 7,500 RPM drilling spindle
Automatic glue application system
Automatic dowel insertion system
Industrial production design
Open-ended table configuration
Ideal for cabinet, furniture, and component manufacturing
HOMAG / Weeke industrial construction
Production-ready platform
Maximum Part Length: 1,250 mm (49.22")
Minimum Part Length: 20 mm (0.79")
Maximum Part Width: 800 mm (31.50")
Minimum Part Width: 50 mm (1.97")
Maximum Part Thickness: 60 mm (2.36")
Minimum Part Thickness: 10 mm (0.39")
Maximum Part Length Using Center Stop: 600 mm (23.62")
Single horizontal drilling spindle
Spindle speed: 7,500 RPM
Drill shank diameter: 10 mm
Total drill length: 70 mm
Automatic dowel insertion
Automatic dowel feeding system
Standard dowel sizes:
8 mm × 30 mm
8 mm × 35 mm
The machine performs drilling, glue application, and dowel insertion in a single automated cycle, making it ideal for cabinet, furniture, and component production.
Integrated glue application system
Automated glue delivery during insertion cycle
Designed to improve assembly consistency
Clean and repeatable operation
Open-ended work table design
Left and right referencing system
Center stop positioning system
Suitable for individual components and batch processing
Fast setup and repeatability for production environments
Heavy-duty industrial frame
Precision-guided machining system
Production-grade components
Designed for continuous manufacturing environments
HOMAG / Weeke quality construction

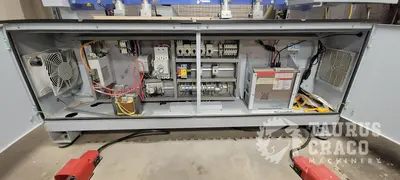

Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Maximum Full Load Current: 7 Amps
Fuse Size: 16 Amps
Control Voltage: 24V
Largest Motor Current: 1.5 Amps
Used – Very Good Operating Condition
This machine has been maintained in a production environment and remains in very good operating condition. It is production-ready and suitable for continued use in cabinet, furniture, and component manufacturing operations.

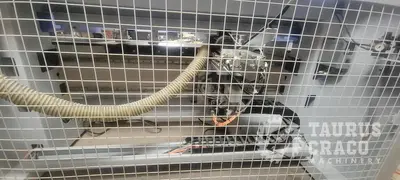

A small retaining clip on the clamping unit is broken.
This is a minor issue that does not affect machine operation or performance.
The condition is visible in the machine photos and has been disclosed for complete transparency.
Very good mechanical condition
Production-ready
Well-maintained industrial equipment
Clean operating condition
Electrical and control systems in place
Minor broken clip on the clamping unit (visible in photos)
Does not affect machine functionality
Suitable for immediate production use
The Weeke Optimat ABD050/12/NA is a proven CNC drilling and dowel insertion solution designed to improve efficiency and consistency in cabinet and furniture manufacturing. Combining high-speed drilling, glue application, and automatic dowel insertion in a single operation, the machine significantly reduces manual labor while delivering accurate and repeatable assembly preparation for production environments.
