USED PILLAR MACHINE H49-7

Lot Closes:: 7/31/2026 11:10:00 AM PT

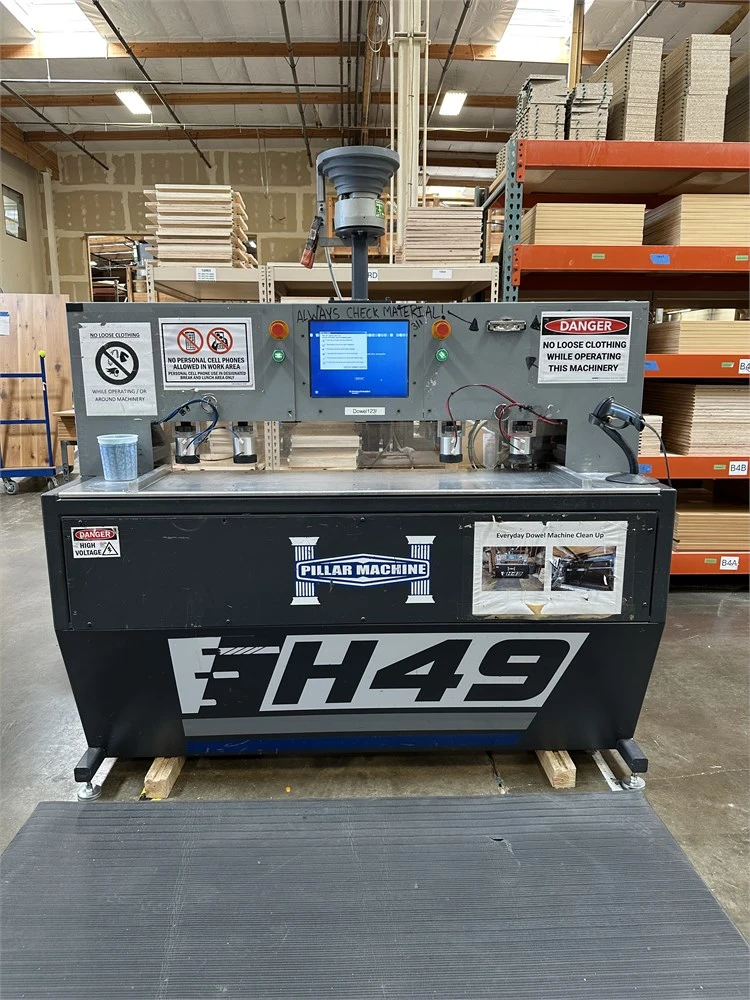

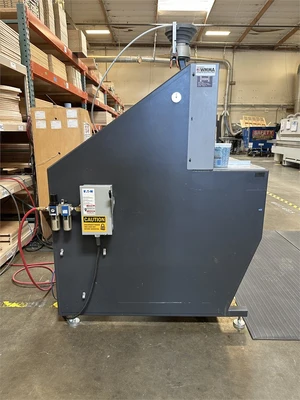

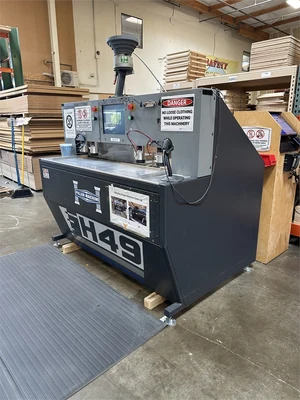

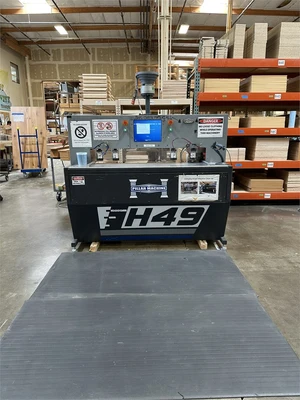

 Pillar Machine "H49-7" Horizontal Bore & Dowel Insertion Machine

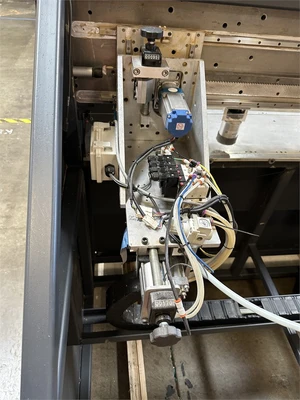

Pillar’s bore and dowel machines are designed to CNC position the spindle, then CNC position the dowel inserter, inject glue or water (for pre-glued dowels), and insert the dowel into the hole, providing a cycle time of less than 1 second for each bore, glue and dowel insertion when the holes are spaced at 64 mm intervals. Custom designs are available, as the HP49 can be outfitted with multiple horizontal and vertical spindles, horizontal dowel inserters, and hardware inserters.
49″ maximum length capability
1/2″ minimum to 1″ maximum thickness capability
X Axis – Rack and Pinion
Y & Z Axis – Manual by use of hand digital readout

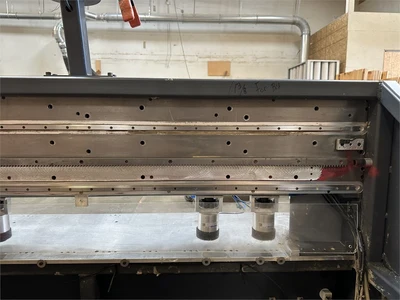

High precision square rail guides & bearings for all linear motions.

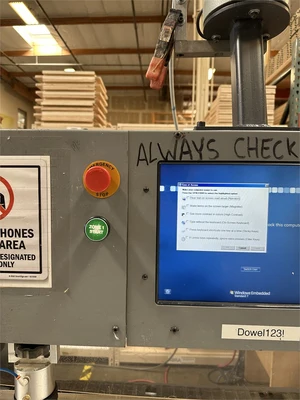

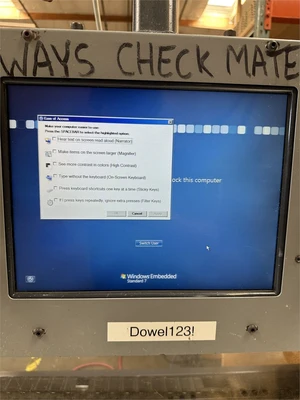

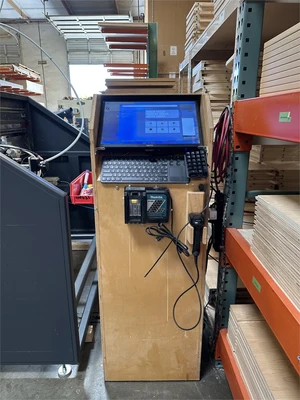

X Axis CNC control for positioning

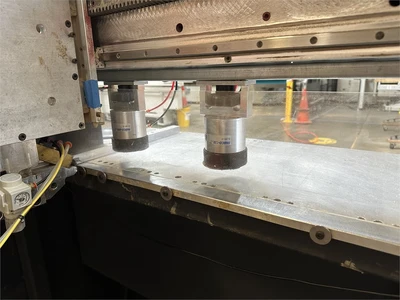

4 clamp units
Digital mechanical readouts for height and depth

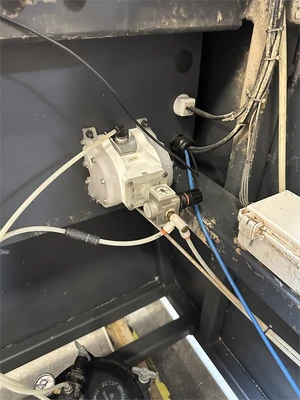

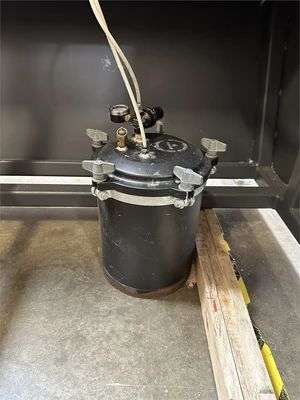

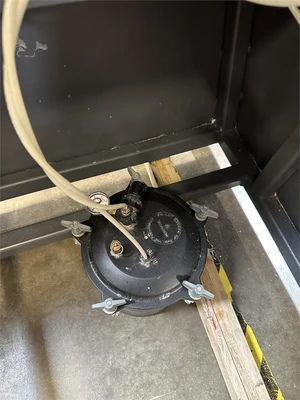

Standard sealed glue injecting system injects glue or water with little or no maintenance
1 HP high frequency 18,000 RPM direct drive spindle
With safety Mats
