USED BioFire HTFA-ASY-0104 | HTFA-SUB-0103

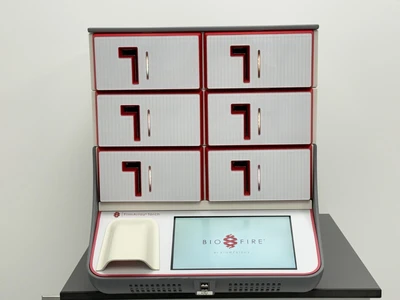

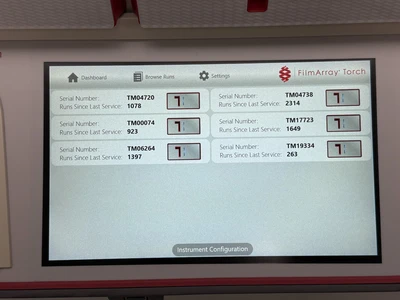

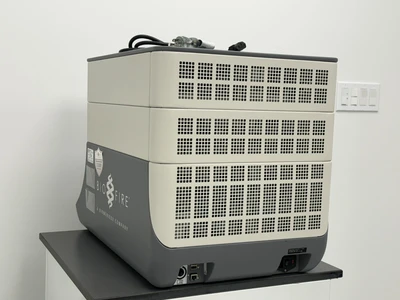

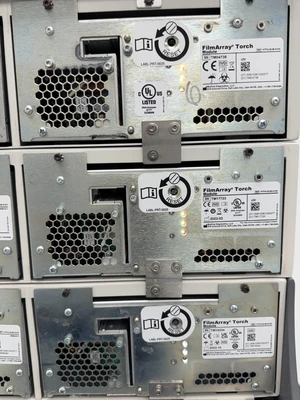

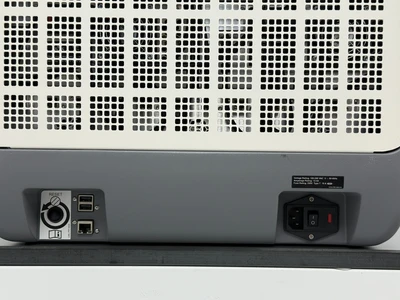

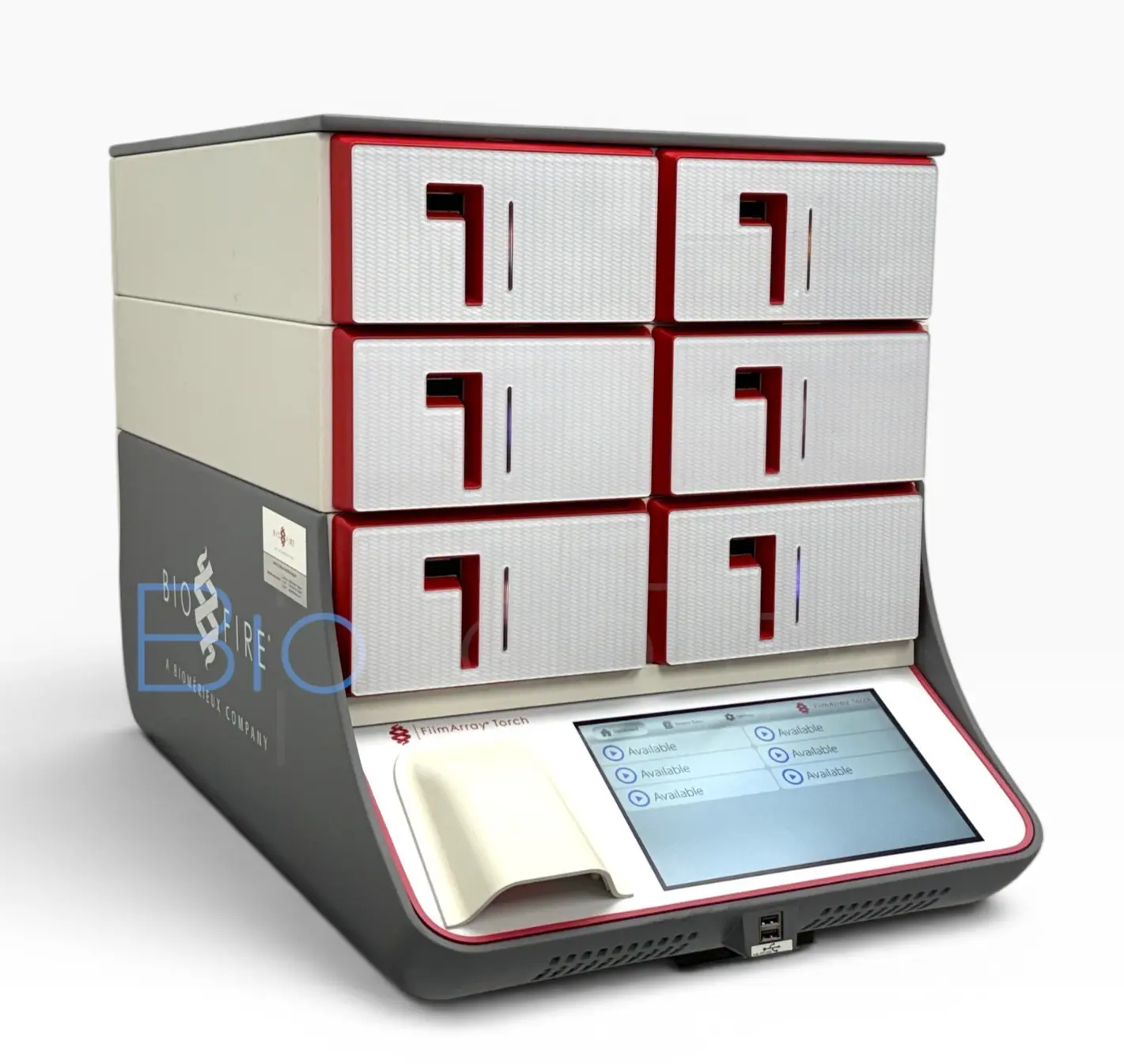

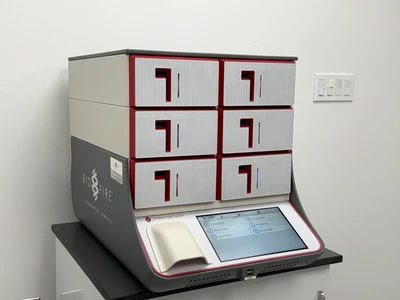

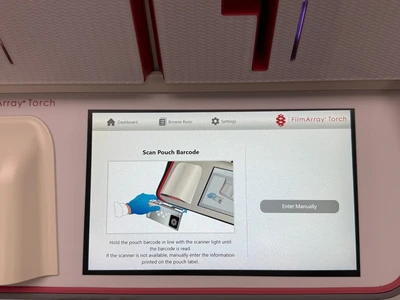

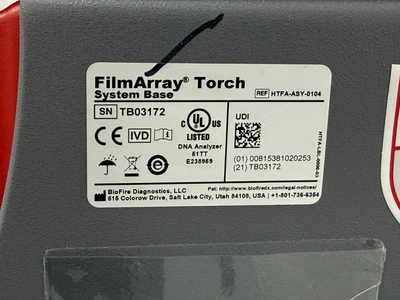

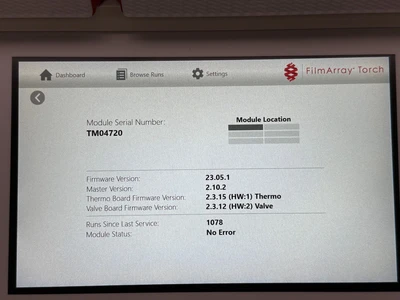

BioLabTek eBay Template Molecular PCR Testing BioFire FilmArray Torch | Base and 6 Modules High-performance multiplex PCR system QC PASS Tested & Working At a glance ManufacturerBioFire Diagnostics ModelFilmArray Torch Part / Catalog # Base: HTFA-ASY-0104Modules: HTFA-SUB-0103 Serial #Base: TB03172Modules: TM04720, TM04738, TM00074, TM17723, TM06264, TM19334 ConditionUsed, Excellent What's Included BioFire FilmArray Torch System Base (HTFA-ASY-0104) 6 Modules (HTFA-SUB-0103) Power Cable Nothing else is included unless shown in Specifications Sample descriptionOne sample capacity per module (with up to 12 samples per BIOFIRE Torch) Run timeSample run time about one hour User interfaceSystem base with touch screen and barcode scanner Data outputAutomatic analysis with end-of-run interpretive reports Fluorescence acquisitionSingle color optics module: 475 nm excitation, 545 nm emission, and sensor imaging Temperature controlOperating temperature 15°C to 30°C; Peltier devices: ambient to 100°C, ramp rate from 0.1–0.5°C/sec on melt Operations specification15°C to 30°C @ 20 to 80% relative humidity (non-condensing); –16 m to 3048 m; indoor use only Shipping specifications-30°C to 38°C @ 5 to 85% relative humidity (non-condensing); -16 m to 10,600 m Power requirements – minimum (single module)100–240 VAC, 50–60 Hz; AC power at 100 VAC: 130W active, 135VA apparent; AC power at 240 VAC: 110W active, 190VA apparent; grounded outlet requirements Power requirements – maximum (12 modules)100–240 VAC, 50–60 Hz; AC power at 100 VAC: 850W active, 935VA apparent; AC power at 240 VAC: 775W active, 1100VA apparent; grounded outlet requirements Fuse250V 3.15A Type T (modules); 250V 10A Type T (system base) Dimensions and weight18 × 29 × 11.5 in (45.8 × 73.7 × 29.2 cm) (W × D × H; system base only); 4.5 in (11.4 cm) (H; modules only); 34 in (86.4 cm) max height (12 modules); weight: approximately 28 lb (12.6 kg) maximum, system base 36 lb (16.3 kg), modules 1.5 lb (6.8 kg) each; duplex (module enclosure) 6.5 lb (~3 kg) each EMC requirementsThe BIOFIRE TORCH complies with the emission and immunity requirements in IEC 61326: electrical equipment for measurement, control and laboratory use Safety requirementsThe BIOFIRE TORCH complies with IEC 61010-1-201: safety requirements for electrical equipment for measurement, control and laboratory use – Part 2-101: particular requirements for in vitro diagnostic (IVD) medical equipment CPUIntel Storage and memory512 GB hard drive or greater; 16 GB RAM or greater Interface and peripheralsSystem base: 12+1 Ethernet network interface, 4 USB connections or more; module: one Ethernet network interface DisplayLCD: capacitive touch screen interface Operating systemMicrosoft Windows OS as released with the BIOFIRE System Specs from manufacturer literature for reference. Verify against your application. Terms & Conditions Payment We accept most payment types and work with your organization's accounting requirements. Contact us if you need a formal quote or to procure with a PO. Shipping Items ship within 1 to 2 business days after cleared payment. We ship via USPS, FedEx, UPS, or freight, to the contiguous USA and worldwide. Worldwide buyers are responsible for customs and duty import charges. Need expedited service or billing to your own FedEx or UPS account? Tell us at purchase. You may arrange your own shipping through your own carrier on request. Return Policy 60-day returns on all products from time of delivery. If anything is not right, contact us first. We want you fully satisfied. Why BioLabTek We power on and function-test, then document what we saw Photos show the exact unit you receive Instruments packed to survive the carrier POs and formal quotes welcome for academic and corporate buyers BioLabTek | Laboratory Equipment Specialists | © 2026 BioLabTek
