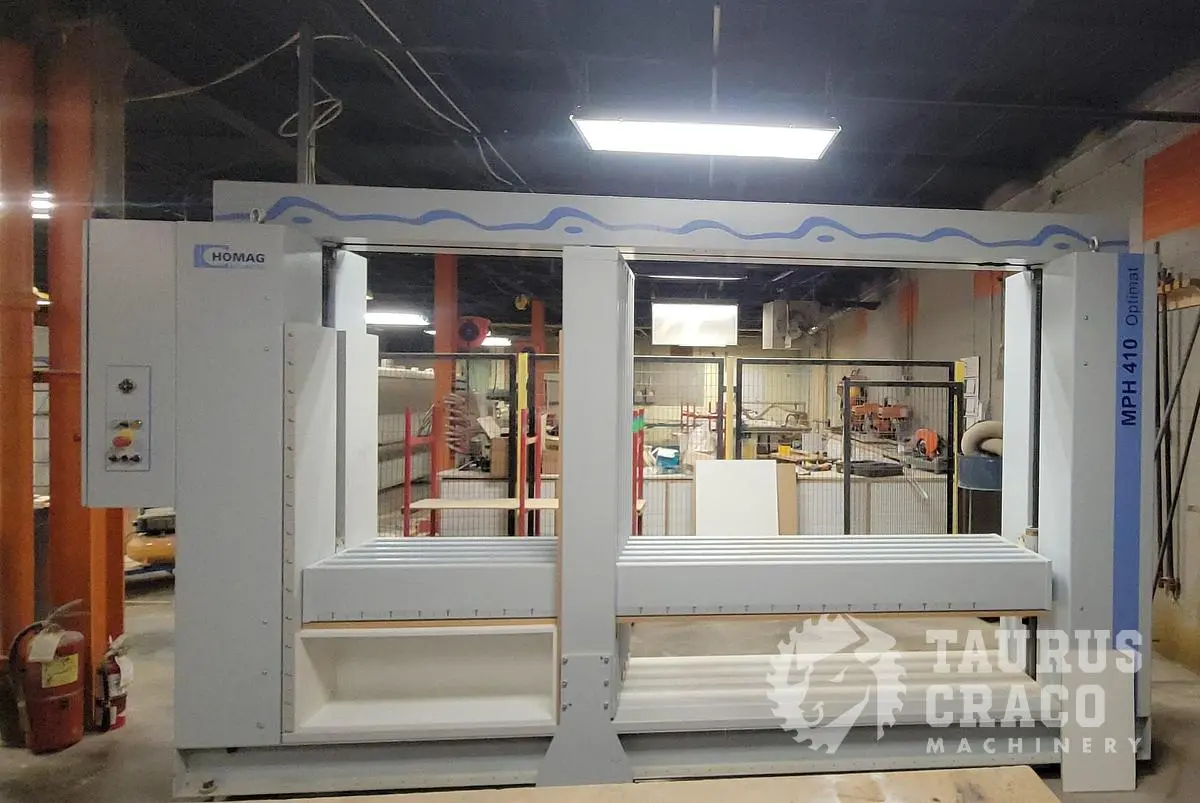

USED 2015 HOMAG MPH410/25/07 CASE CLAMP OPTIMAT MPH410/25/07 CASE CLAMP

Manufacturer: HOMAG Automation GmbH
Model: MPH410/25/07
Year of Manufacture: 2015
Condition: Used – Great Operating Condition
Machine Type: Electromechanical Case Clamp / Cabinet Assembly Press
The HOMAG MPH410/25/07 is an industrial electromechanical case clamp designed for the assembly and squaring of cabinet carcasses and furniture cases. Built by HOMAG Automation in Germany, the MPH410 utilizes powered vertical and horizontal pressure beams that automatically adapt to varying cabinet sizes without requiring manual repositioning of pressure elements.

The machine's pressure-beam design provides uniform pressure across the entire cabinet surface, ensuring accurate, repeatable results while reducing setup time between different case sizes. This design makes the machine particularly well suited to high-mix cabinet production environments.
Electromechanical case clamp system
Simultaneous horizontal and vertical pressing
Automatic adaptation to varying cabinet sizes
No manual repositioning of pressure pads required
Variable pressure adjustment
Push-button clamp operation
Two-speed positioning system
Heavy-duty German construction
Maximum Case Length: 2,500 mm (98.4")
Minimum Case Length: 250 mm (9.8")
Maximum Case Depth: 700 mm (27.6")
Minimum Case Depth: 250 mm (9.8")
Maximum Case Height: 1,400 mm (55.1")
Minimum Case Height: 150 mm (5.9")
The MPH410 utilizes powered vertical and horizontal pressure beams that apply even pressure across the entire case, helping maintain squareness and assembly accuracy while accommodating varying cabinet dimensions.
Vertical & Horizontal Pressure: 15 kN (3,372 lbs force)
Positioning Speed: 25 mm/sec and 50 mm/sec
Frequency-controlled pressure adjustment
Chain-driven pressure beam system
Full-contact pressure beam system
Steel pressure beams
Alternating pressure beam arrangement
Heavy-duty welded frame construction
Voltage: 480V
Phase: 3 Phase
Frequency: 50/60 Hz
Maximum Full Load Current: 4 Amps
Control Voltage: 24V
Amperage: 16 Amps
Required Floor Length: 4,000 mm (157.5")
Required Floor Width: 750 mm (29.5")
Required Height Clearance: 2,500 mm (98.5")
Great operating condition
Industrial production machine
German-built HOMAG Automation equipment
Suitable for flexible cabinet production
The HOMAG MPH410/25/07 is a proven industrial case clamp designed to improve cabinet squareness, assembly consistency, and production throughput. Its self-adjusting pressure beam design virtually eliminates setup between varying cabinet sizes, making it an excellent solution for both batch and custom production environments.
