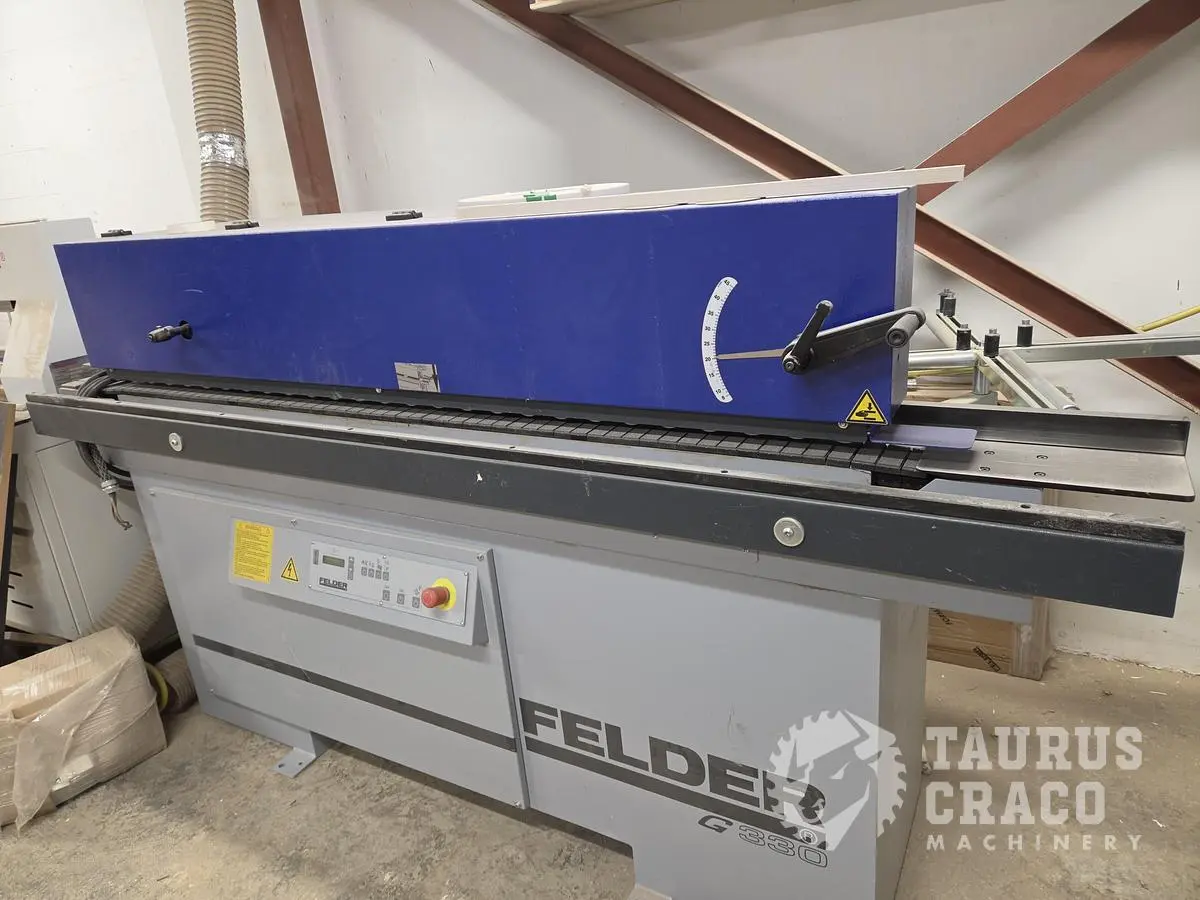

USED 2018 FELDER G330 EDGEBANDER

Manufacturer: Felder
Model: G330
Year of Manufacture: 2018
Condition: Used – Good Operating Condition
Machine Type: Automatic Single-Sided Edgebander
The Felder G330 is a compact automatic edgebander designed to provide professional edge finishing while maintaining a remarkably small footprint. Marketed as the "Felder space saver," the G330 offers full edgebanding functionality in a machine requiring less than two metres of floor space when operational.

This machine is equipped with Felder's Quick-Set-System, allowing fast adjustments between different materials and edge thicknesses while maintaining consistent bonding and finishing quality. The machine is configured with automatic edge feeding, glue application, end trimming, radius trimming, and glue scraping functions, making it an ideal solution for cabinet shops, custom millwork operations, and furniture manufacturers.
Compact "space saver" design
Quick-Set-System for fast material changeovers
Automatic edge feeding system
LCD display with keypad control panel
End trimming saw unit
Radius trimming capability
Glue scraping station
CSA electrical configuration
Professional edge finishing in a compact footprint
Minimum Workpiece Width: 70 mm
Minimum Workpiece Length: 210 mm
Coiled Edge Material: 0.4 mm – 3 mm
Strip Edge Material: Single strip feeding capability
Edge Profiles:
2 mm radius
15° bevel
The machine utilizes a precision chain-feed system with offset drive rollers designed to provide smooth workpiece transport while minimizing surface marking.
Heavy-duty chain feed system
Anti-scratch roller arrangement
Consistent material positioning
1.2 kg glue pot capacity
Teflon-coated glue pot
Designed for EVA granulated adhesive
Adjustable glue application roller
Automatic glue temperature reduction function
The pressure station consists of:
One primary pressure roller
One secondary pressure roller
Spring-loaded pressure mechanism
Quick-Set adjustment system
This system provides consistent pressure and optimal bonding between the edge material and the workpiece.
Automatic feeding of coiled edging
Supports edge material from 0.4 mm to 3 mm
Manual strip feeding capability
Integrated guillotine end trimming
High-precision linear guides
Twin saw blade system
Saw blade speed: 9,000 RPM
The multifunction trimming station allows:
Flush trimming
Bevel trimming
Radius trimming
2 mm radius tooling
Fast and simple adjustment allows rapid changeover between different edging profiles.
Refines edge finish after trimming
Removes excess glue
Improves final appearance
Provides smooth edge transitions
Functions include:
Glue temperature adjustment
Automatic glue temperature reduction
Unit engagement/disengagement
Voltage: 230V
Phase: 1 Phase
Frequency: 60 Hz
Current Draw: 14 Amps
Automatic edge feed system
Glue pot assembly
Pressure roller station
End trimming station
Radius trimming station
Glue scraping station
LCD operating panel
User manual
CSA electrical package
Good operating condition
Production-capable machine
Compact footprint
Single-phase power configuration
The Felder G330 is a versatile and space-efficient edgebander that provides automated edge processing without the footprint requirements of larger industrial machines. Equipped with automatic edge feeding, glue application, end trimming, radius trimming, and glue scraping, it offers an excellent solution for shops seeking professional finishing quality in a compact and user-friendly package.
