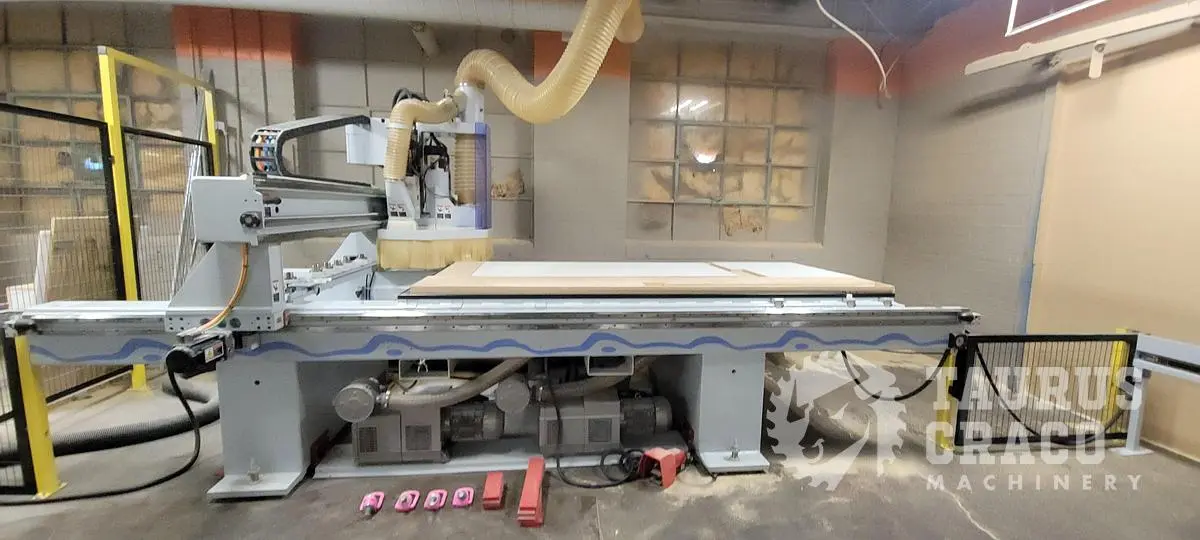

USED 2013 HOMAG WEEKE OPTIMAT BHP008 VANTECH 480 CNC

Manufacturer: Weeke (HOMAG Group)
Model: Optimat BHP008 Vantech 480
Year of Manufacture: 2013
Condition: Used – Very Good Operating Condition
Machine Type: CNC Point-to-Point Machining Centre / CNC Router
The Weeke Optimat BHP008 Vantech 480 is a versatile CNC machining centre built for routing, drilling, grooving, and panel processing applications in cabinet, furniture, closet, and millwork production environments.

Manufactured by Weeke, a member of the HOMAG Group, the Vantech series is known for combining machining flexibility, production efficiency, and reliable performance. The machine is designed to perform a wide range of CNC operations while maintaining the accuracy and repeatability required for both custom and production manufacturing.

This 2013 machine remains in very good operating condition and has been maintained in a woodworking production environment. Originally sold and serviced through HOMAG Canada, it is production-ready and suitable for continued industrial use.
4' x 8' CNC machining centre
12 HP (9 kW) HSK 63F routing spindle
Spindle speed range: 1,250 – 24,000 RPM
7-position automatic tool changer
7-spindle vertical drill block
Matrix vacuum table system
Dual-drive gantry construction
WoodWOP programming platform
CNC routing, drilling, and grooving capabilities
Heavy-duty HOMAG / Weeke industrial platform
Automated machining operations
Suitable for custom and production woodworking applications
X-Axis Working Length: 2,500 mm (98.4")
Flat table nesting configuration
4' x 8' panel processing capacity
Matrix vacuum table work surface
HSK 63F tooling interface
12 HP (9 kW) spindle
Speed range: 1,250 – 24,000 RPM
7-position automatic tool changer
Automatic tool pick-up station
Integrated tool length control system
7 vertical drilling spindles
Integrated boring capability
Designed for cabinet and panel component production
Dual synchronized X-axis drives
Rack-and-pinion drive on X-axis
Ball screw drive on Y and Z axes
Digital servo motors and controls
High-precision machine motion system
Segmented Matrix vacuum system
Total vacuum capacity: 267 m³/h
Vector speed: up to 96 m/min
Dual-drive gantry for improved machining accuracy
High-speed processing capability
Weeke CNC Control System
WoodWOP programming software
DXF import capability
CNC simulation functionality
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Maximum Full Load Current: 37 Amps
Fuse Size: 50 Amps
Control Voltage: 24V
Largest Motor Current: 21 Amps
Enclosure Type: 12
Used – Very Good Operating Condition
This machine has been maintained in a production environment and remains in very good operating condition. It is currently production-ready and suitable for continued use in cabinet, furniture, and millwork manufacturing applications.
The Weeke Optimat BHP008 Vantech 480 is a proven German-built CNC machining solution that combines routing, drilling, grooving, and nesting capabilities in a compact and efficient platform. With its 12 HP spindle, 7-position automatic tool changer, 7-spindle drill block, Matrix vacuum table, and WoodWOP software, this machine offers an excellent balance of flexibility, performance, and reliability for woodworking manufacturers looking for a capable production CNC at a fraction of replacement cost.
