USED CTD DM200R

Lot Closes:: 8/5/2026 11:55:00 AM PT

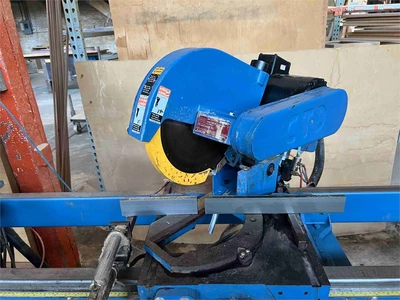

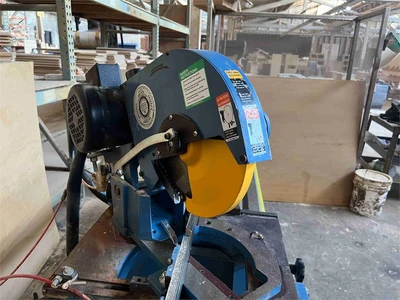

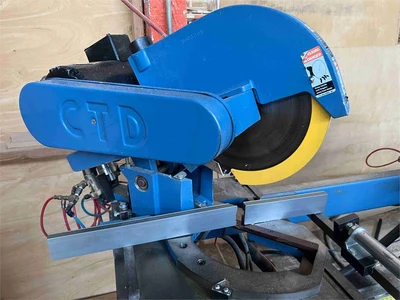

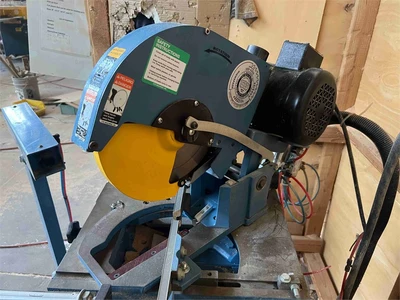

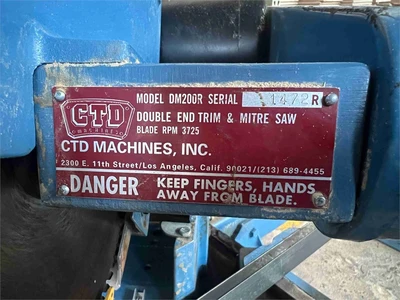

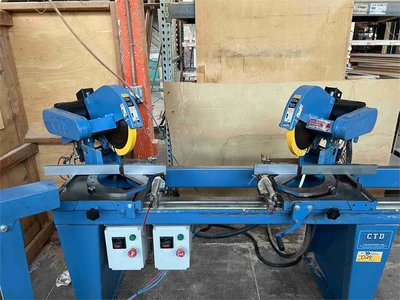

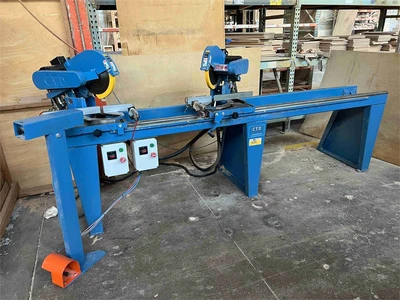

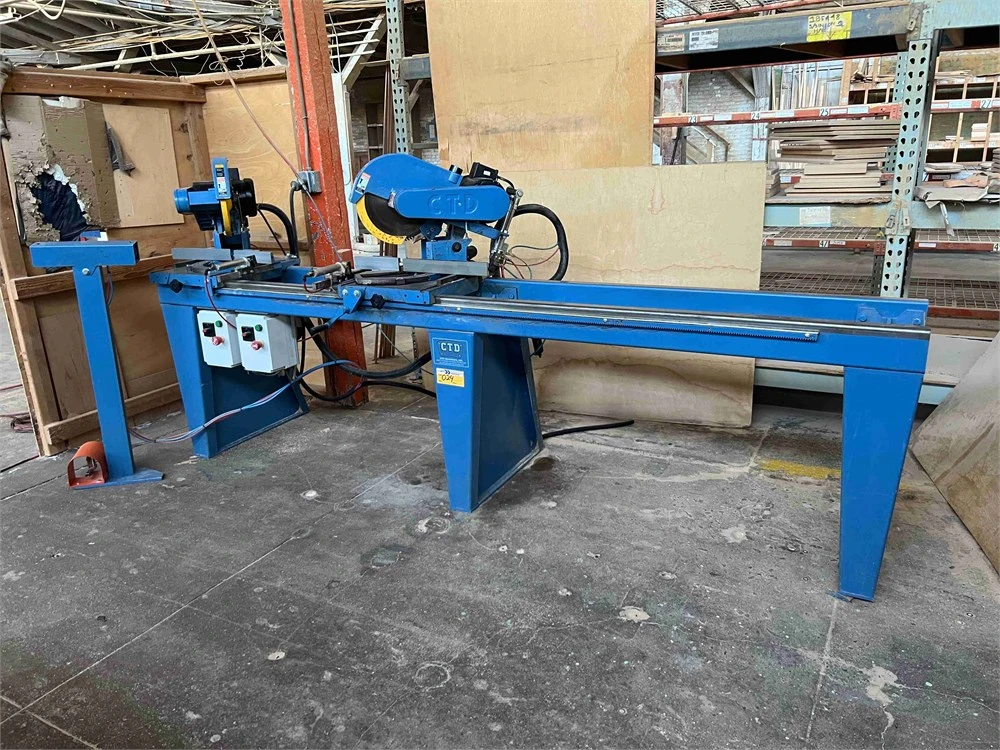

CTD "DM200R" Double End Trim Miter Saw
Double end cut-off saws are fast, versatile and accurate. Two or more saws make a variety of cuts on both ends of a work piece. Lengths are adjusted by a rack, pinion and scale. Angles are calibrated, and set-ups are fast. Four 12'' to 20'' blade size Double Mitre and Compound Double End Trim saws are available with many options and lengths.
Standard Features and Specifications:
Designed to cut Aluminum, Wood, plastics, composites, aluminum extrusions, plastic extrusions, non-ferrous metals.
Blade Capacity: 12'' OD Saw blades not included

Spindle and Pivot: Uses our time tested 200R series saw head; precision ball bearing spindle and pivot shaft are sealed and preloaded for guaranteed accuracy; 0.001 alignment of spindle and pivot shaft.

Arbor: 1'' with 2-1/2'' saw collars; 3700 RPM of spindle.

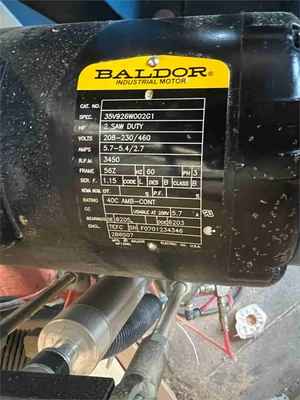

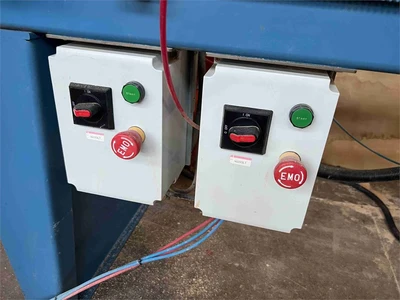

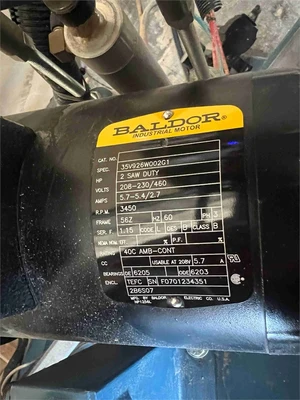

Motors and Voltages: 2 HP 3 phase 230/460V totally enclosed fan cooled motors, 60Hz, 3450 RPM with magnetic starters and voltage protection; 3 HP 3 phase motors available.

Iron Castings: Tables are precision machined and ground iron castings with milled keyways in tables and guide fence.

Table: Saw heads swivel from 90 degrees to 45 degrees towards each other with degree markings and pointer; stops are at 90 degrees and 45 degrees; angular adjustment of saw head away from each other available as option; other angles possible; phenolic chip breaker included.
