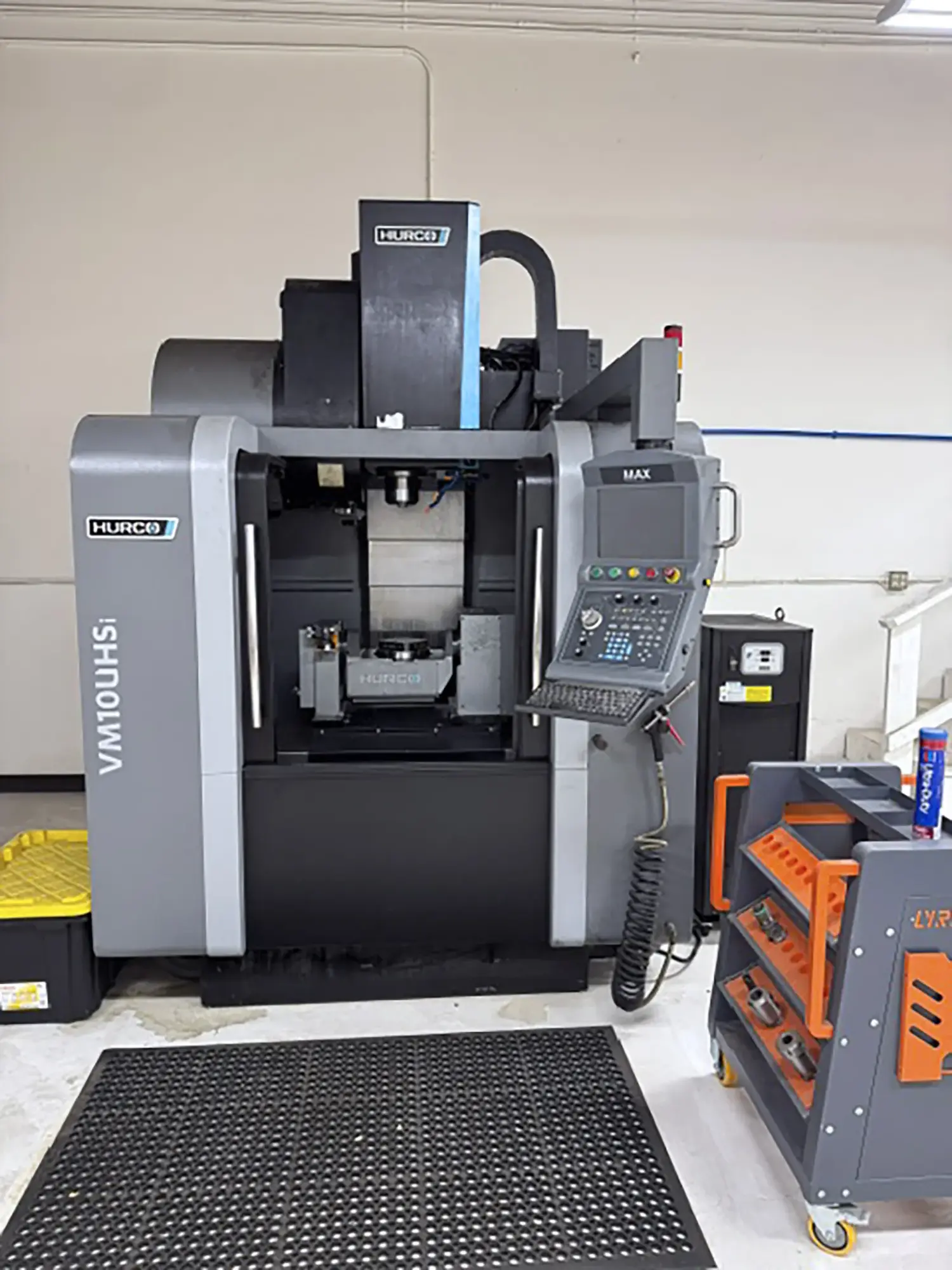

USED 2014 HURCO VMX 10 UHSI
Overview
LIKE NEW| Work holding pieces| 2k cutting hrs
The Hurco VMX 10UHSi 5 Axis Machining Center (2014) is a compact, high-speed CNC machining center engineered for precision 5-axis machining of complex metal and plastic components. Ideal for medical, dental, aerospace, defense, mold & die, electronics, and rapid prototyping, it delivers exceptional accuracy, single-setup efficiency, and reliable production of intricate, high-tolerance parts.
Specs
X-Axis Travel: 21.02 in
Y-Axis Travel: 16.02 in
Z-Axis Travel: 19.01 in
A-Axis Travel (Tilt): +30° to -110° +30° to -110°
C-Axis Travel (Rotation): 360° 360°
spindle nose to table (min-max): 1.42 in / 20.43 in
Table Diameter: 7.8 in
Max Weight on Table: 330 lbs
Max Spindle Speed: 30,000 RPM
Peak Spindle Power: 11.4 HP @ 15,000 RPM
Peak Spindle Torque: 4.35 ft-lbs
Spindle Taper: BT 30
Max Tool Diameter: 2.36 in
Max Tool Length: 9.84 in
Max Tool Weight: 11 lbs
Rapid Traverse (X, Y, Z Axis): 1,102 ipm
Rapid Traverse (A, C Axis): 25 RPM
Equipped With
30K SPINDLE UPGRADE

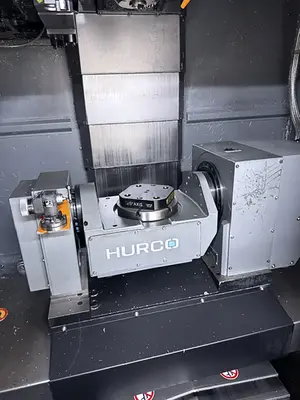

TRUNNION TABLE

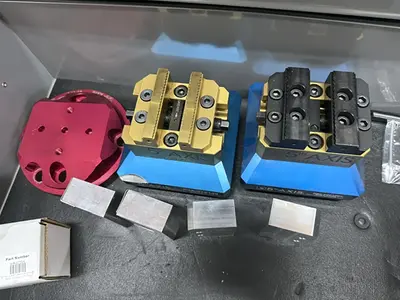

WORK HOLDING EQUIPMENT

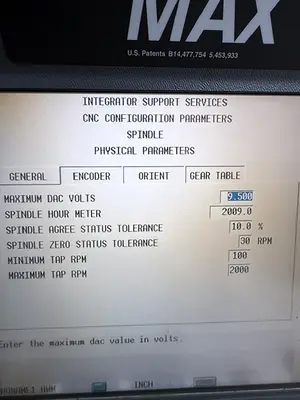

WINMAX CONTROL
TRANSFORMER
TOOL PRESETTER
AVD VERIFICATION GRAPHIC
DXF
NC PRODUCTIVITY PACKAGE
INDUSTRY STDNARD NC
TOOL PROBING
PART PROBING ULTIPOCKETS
INSERT POCKETS
RIGID TAP
HELICAL RAMP
NC CONVERSATIONAL MERGE
SELECT SURFACE FINISH QUALITY
SIMULTANEOUS 5 AXIS
ULTIMOTION
TOOL CHANGE OPTIMIZATION
