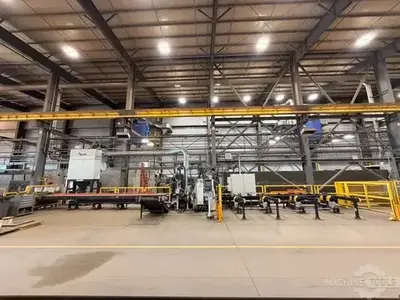

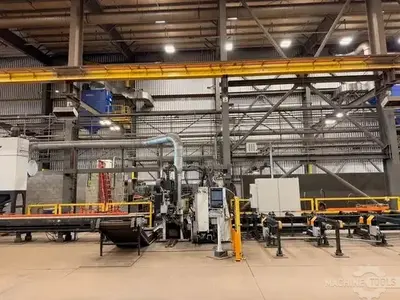

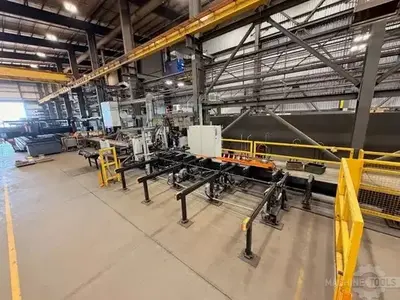

USED 2016 FICEP TIPO D8

Request a Quote
Add to Cart
Control: Ficep
Flats: 50 x 6 mm (min) – 510 x 25 mm (max)
Angles: 50 x 50 x 6 mm – 200 x 200 x 16 mm
Min Profile Length: 2,500 mm

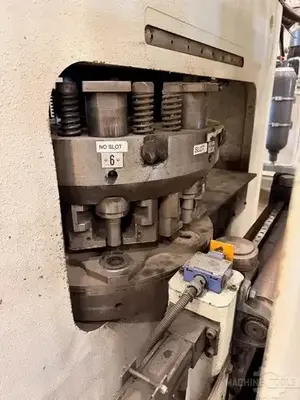

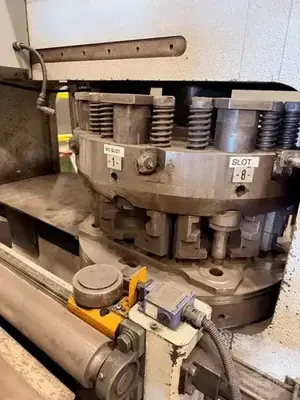

Flats Punching Unit: 1,100 kN, 8-Position CNC Rotating Tool Changer, Max Punch Ø 46 mm, Max Thickness 25 mm
Horizontal Punching: 600 kN per Punch, 160 mm Throat, Max Ø 30 mm, Max Thickness 16 mm

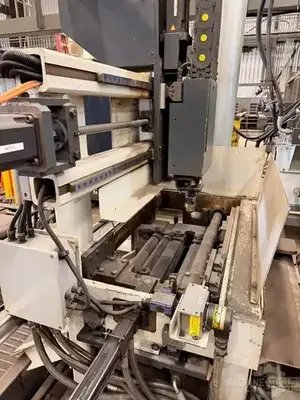

Max Drilling Diameter/Thickness: 40 mm / 40 mm
Drilling Spindle: 5.5 kW Spindle Motor, CNC-Controlled Speed 180–800 RPM
Flats Shear: 2,200 kN, up to 510 x 25 mm; Rotating Base for +/- 45° Mitered Cuts (up to 350 mm width)
Angle Shear: : 3,000 kN, up to 200 x 200 x 20 mm

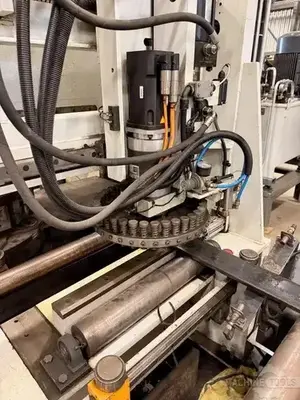

Marking Unit: 36-Position CNC-Controlled Marking Disk, 80 kN Force per Character

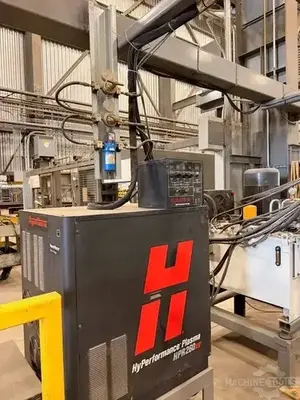

Plasma Unit: Hypertherm HPR 260 (260A), Max Thickness 25 mm, CNC-Controlled Torch Positioning

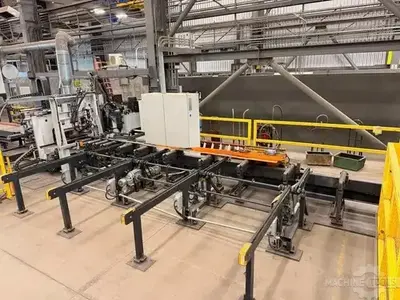

Outfeed Conveyor: 600–6,000 mm Transferable Length Range

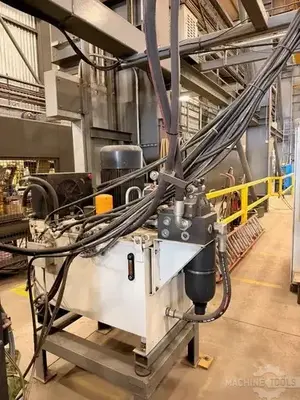

Hydraulic Unit: 320 Bar High Pressure / 65 Bar Low Pressure, 335 L Tank
Power Requirement: : 3-Phase, 480V ±10%, 60 Hz, 80 kW Total Installed Power
2D/3D Graphics: Automatic Nesting/Optimization

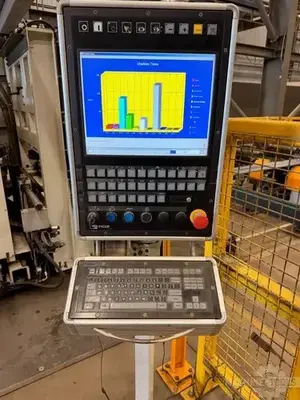

Automatic Tool Assignment: CANopen Fieldbus 15" Touchscreen Color LCD Windows 7 Embedded
Flats Punching Unit: Horizontal Punching Unit
Optional Drilling/Shearing/Marking/Plasma Cutting
