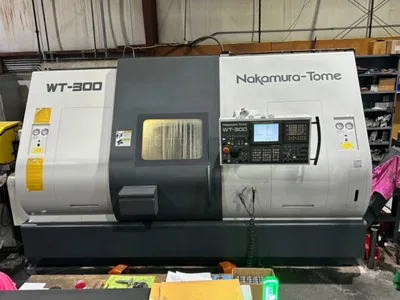

Nakamura-Tome WT-300MMY – 2011

SWING OVER BED 10.63″

TURNING DIAMETER 10.63″

TURNING LENGTH 30.71″

DISTANCE BETWEEN SPINDLES 43.31″

CHUCK SIZE 1 8″

SPINDLE NOSE 1 A2-6

SPINDLE BORE DIAMETER 1 3.15″

BAR CAPACITY 1 2.5″

SPINDLE SPEEDS 1 4,500 RPM

SPINDLE HORSEPOWER 1 25 hp

CHUCK SIZE 2 8″

SPINDLE NOSE 2 A2-6

SPINDLE BORE DIAMETER 2 3.15″

BAR CAPACITY 2 2.5″

SPINDLE SPEEDS 2 4,500 RPM

SPINDLE HORSEPOWER 2 25 hp

X1 – AXIS TRAVEL 7.68″

X2 – AXIS TRAVEL 7.68″

Z1 – AXIS TRAVEL 30.71″

Z2 – AXIS TRAVEL 30.71″

Y1 – AXIS TRAVEL 4.72″

C – AXIS INDEXING 1 0.001

C – AXIS INDEXING 2 0.001

W – AXIS TRAVEL SUB SPINDLE 33.46″

TURRET TOOL POSITIONS 1 24 station

TURRET ROTARY TOOL SPEEDS 1 3,600 RPM

TURRET ROTARY TOOL HORSE POWER 1 7.5 hp

TURRET TOOL POSITIONS 2 24

TURRET ROTARY TOOL SPEEDS 2 3,600 RPM

TURRET ROTARY TOOL HORSE POWER 2 7.5 hp

PROGRAMMABLE TAILSTOCK ‘No’

MACHINE WEIGHT 27,000 lb
