USED DAEWOO DMV-400
Specs

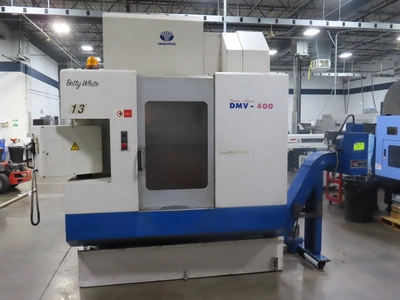

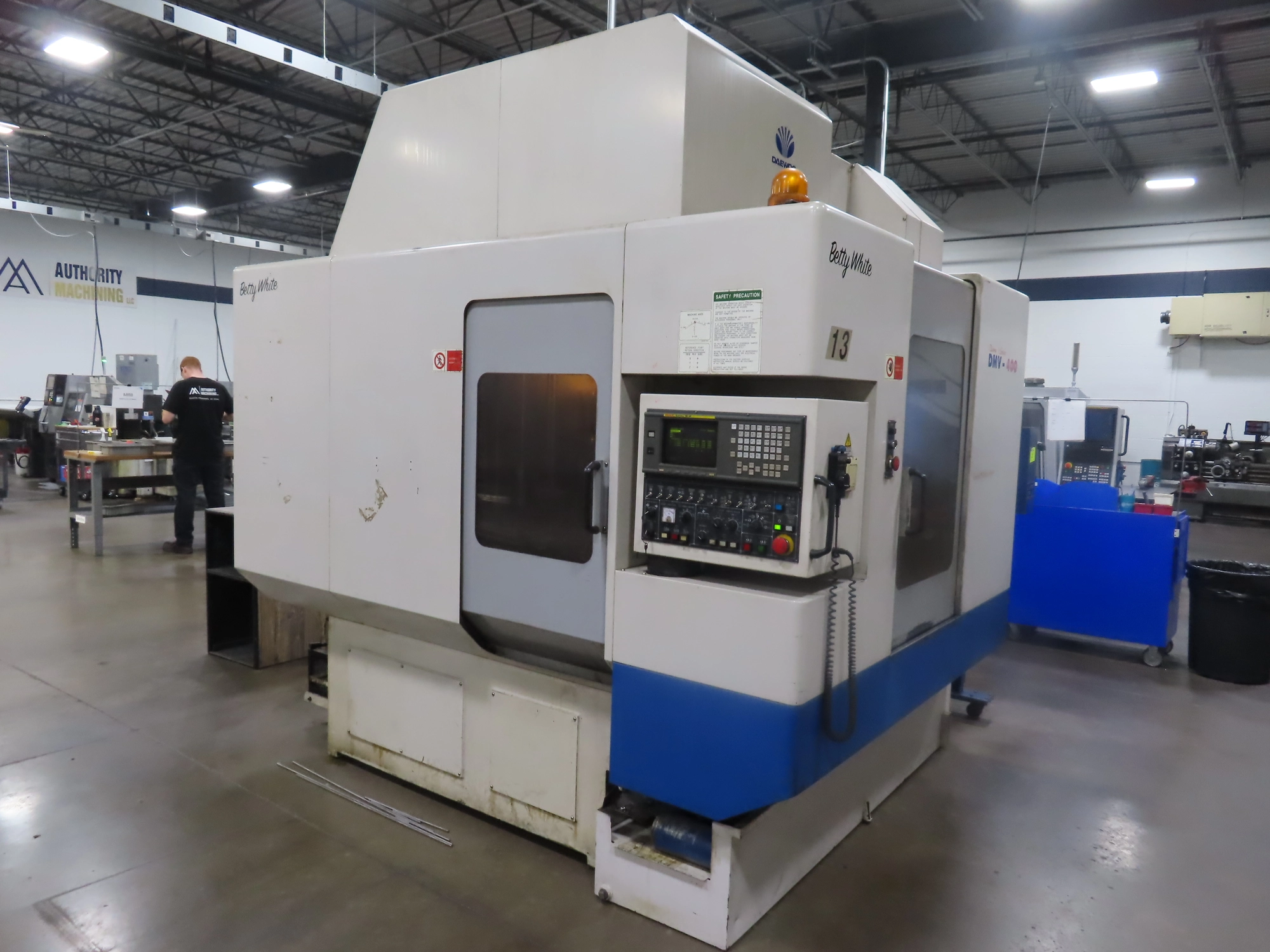

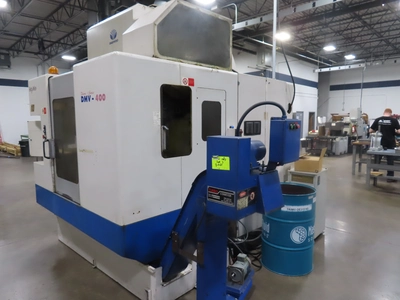

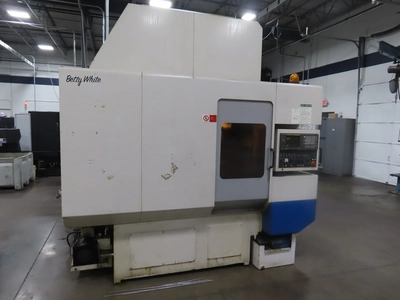

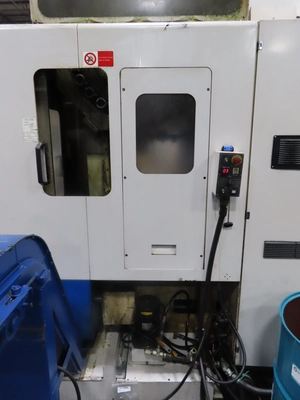

Lot 150: Daewoo DMV-400 CNC Vertical Machining Center with Automatic Pallet Changer, Fanuc 18, 30 ATC, Thru Spindle Coolant

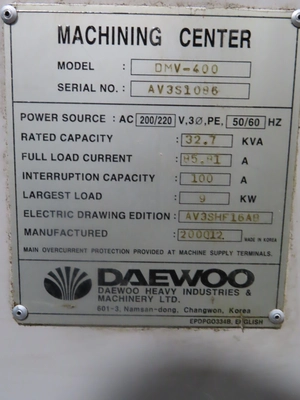

Electrics:
200/220V
Main Unit Approx Weight: 13230.00 lbs
Main Unit Dimensions (in inches): Length: 92.00" Width: 116.00" Height: 117.00"
Specs:

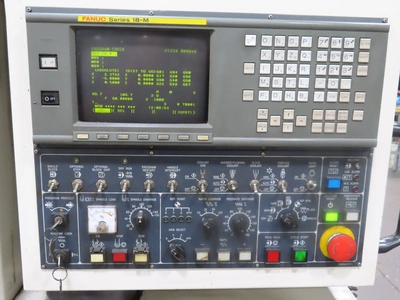

Control: Fanuc 18-M CNC Control

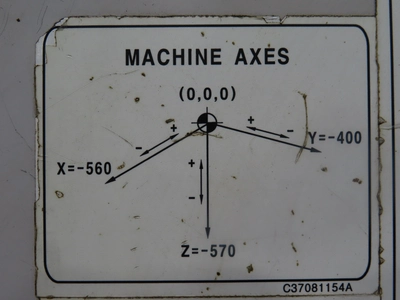

Machine Travels (X/Y/Z): 22" / 15.7" / 22.4"
Number of Pallets: 2
Pallet Change Style: 180 Degree Index

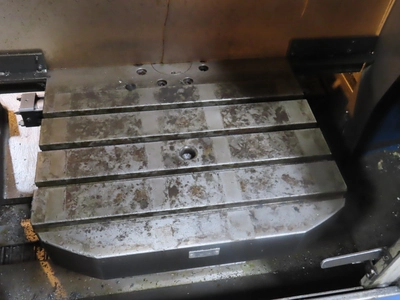

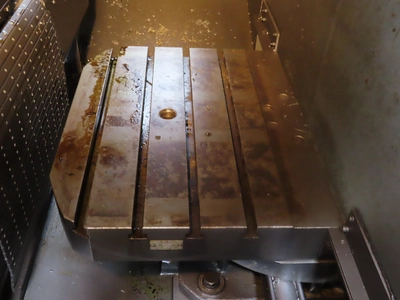

Pallet Size: (2) 25.6" x 17.7"
Spindle Taper: Cat 40 Taper
Spindle Speeds: 8,000 RPM
Spindle Drive: 15 HP
Rapid Traverse (X/Y/Z): 1181 / 1181 / 945 ipm
Pallet Change Time: 5 sec

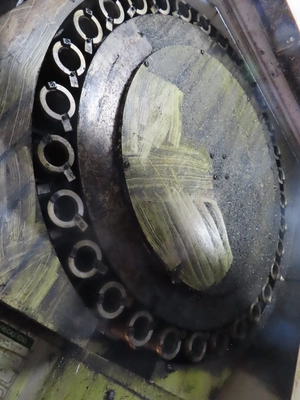

Toolchanger Style: Side Mount Twin Arm
Toolchanger Capcity: 30 Stations
Max Tool Weight: 17.6 lbs
Max Tool Length/Diameter: 11.8" Long / 5.9" Dia.
Tool Change Time: 1.5 Sec Tool to Tool
Spindle Face to Pallet: 5.9" - 28.3"
Spindle Center to Column: 18.9"
Seller Company: Authority Machining
Seller Contact: Bryce Brethorst Phone: (612) 419-9861
Location Contact: Bryce Brethorst Phone: (612) 419-9861
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Tuesday, August 18, 2026 and Friday, August 28, 2026
Equipped With

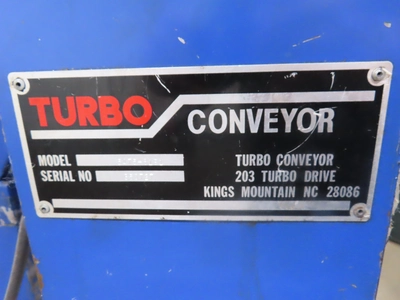

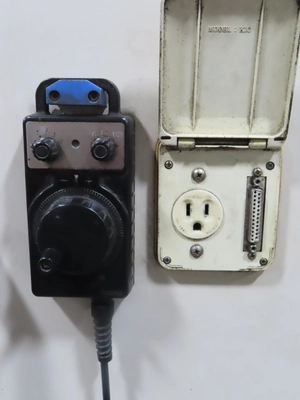

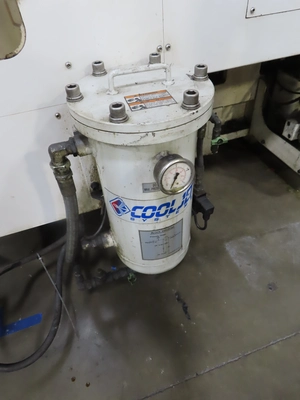

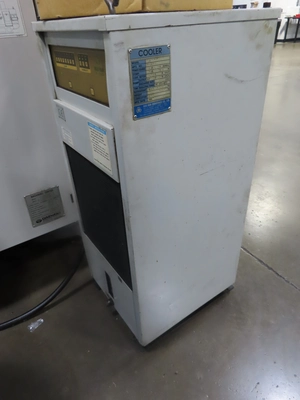

Fanuc 18M CNC Control, 2-Station Lazy-Susan Style Pallet Changer with (2) 25.6" x 21.5" Work Tables, CAT 40, 8,000 RPM Maximum Spindle Speed, Spindle Chiller, CoolJet 290 PSI Thru Spindle Coolant, Turbo Chip Conveyor, Coolant Tank and Pump, Remote Jog Handle, Assorted Manuals. NOTE: Spindle Rebuilt in 2022
