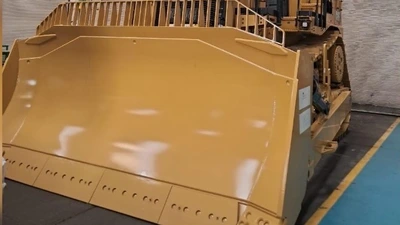

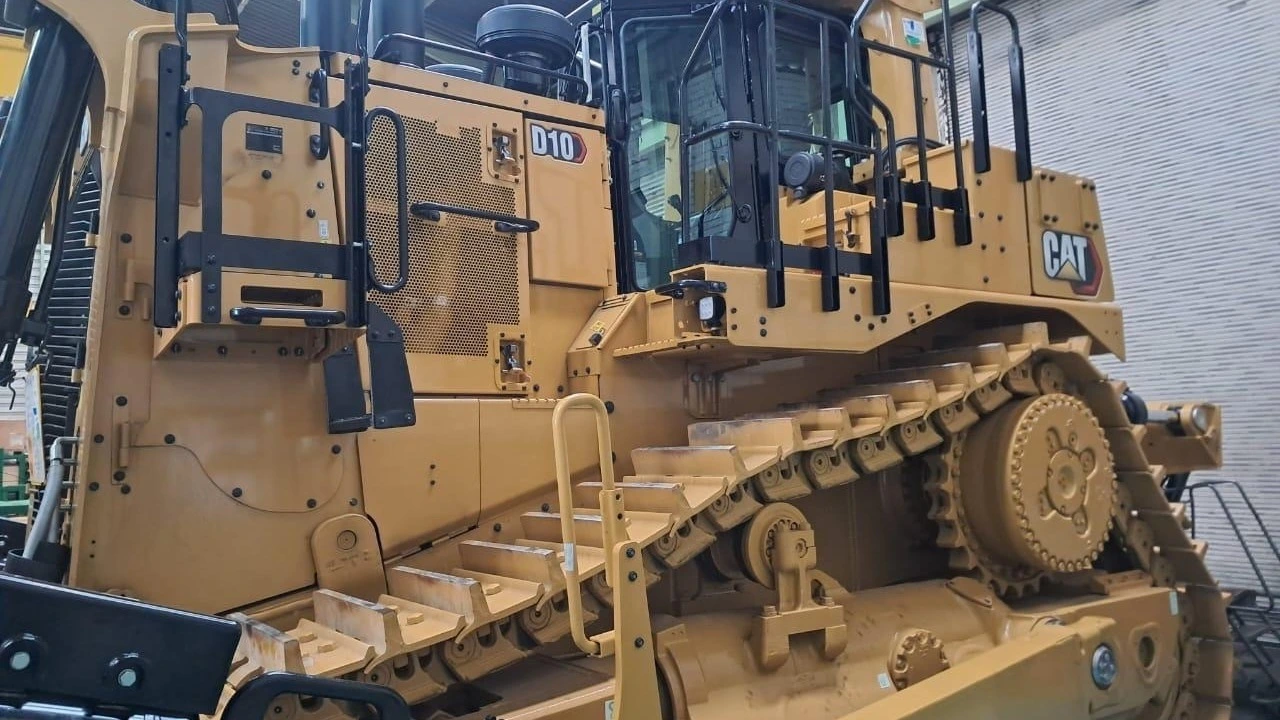

USED 2026 Caterpillar D10

Engine Model Cat C27 Tier 3, Net Power 602 Hp, Gross Power 631 Hp, Reverse Gross Power 756 Hp, Displacement 1,648 In³, Bore 5.4", Stroke 6", Cylinders 12, Aspiration Turbocharged, Emissions Tier 3 Equivalent Configuration No DEF, Operating Weight 154,888 Lb, Shipping Weight 111,739 Lb, Blade Weight 23,585 Lb, Ripper Weight 14,209 Lb, Transmission Type Powershift, Forward Gears 3, Reverse Gears 3, Max Speed Forward 7.9 Mph, Max Speed Reverse 9.8 Mph, Fuel Capacity 318 Gal, Hydraulic System Capacity 38 Gal, Engine Oil Capacity 18 Gal, Cooling System Capacity 34.9 Gal, Hydraulic Pump Flow Approximately 107 Gpm, Relief Pressure Approximately 2,725 Psi, Track Shoe Width 24", Track Rollers Per Side 8, Shoes Per Side 44, Track Gauge 100", Ground Contact Area Approximately 7,300 In², Ground Pressure Approximately 18–20 Psi, Ground Clearance 28.5", Length Of Track On Ground 152.8", Overall Length Basic Tractor 209.6", Overall Length With SU Blade And Ripper 360.6", Length With SU Blade 292", Length With U Blade 305.1", Width Over Trunnions 148", Height To Top Of Cab 162.8", Height To Top Of Stack 171.5", Blade Type SU Or U, Blade Width SU 194.5", Blade Width U 207.1", Blade Capacity SU 24.2 Yd³, Blade Capacity U 28.7 Yd³, Blade Height 83.5", Max Blade Digging Depth 30.1", Max Blade Tilt 17.31 Degrees, Ground Clearance Blade Full Carry 66.1", Ground Clearance Blade Full Spread 53.9", Ripper Type Single Shank Or Multi Shank, Max Ripper Penetration Depth 59.2", Max Ripper Clearance Raised 36", Ripper Penetration Force 49,233 Lbf
