NEW SUMMIT 14X40D

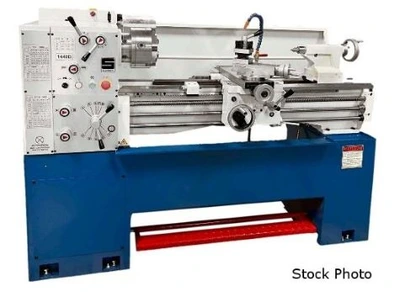

SUMMIT (NEW) MODEL 14 X 40D VARIABLE SPEED ENGINE LATHE

14" SWING OVER BED
8.75" SWING OVER CROSS SLIDE
20.75" SWING OVER GAP

HEADSTOCK
- INF VAR SPINDLE SPEEDS
RANGE (RPM)
- 36-300 LOW
- 300-2200 HIGH
- 2"/50MM HOLE THROUGH SPINDLE
- #3 MT HEADSTOCK CENTER
- D1-5 CAMLOCK

FEEDS AND THREADS (NUMBER)/RANGE
- THREADS PER INCH (32) 4 - 56
- METRIC THREADS (30) 0.4 - 7
- LONGITUDINAL FEEDS (16) .0026 - .0368 IPR
- CROSS FEEDS (16) .0008 - .0122 IPR

CARRIAGE AND APRON
- 7.5" CROSS SLIDE TRAVEL
- 3.94" COMPOUND TRAVEL

STEADY REST
- 1/2" - 4" BRASS TIPS

BED
- 9" WIDTH OF BED
- 42 - 48 BED WAY HARDNESS (ROCKWELL C)

TAILSTOCK
- 3.94" TRAVEL OF SPINDLE BARREL
- 1.562" DIAMETER OF SPINDLE BARREL
- #3MT TAPER OF CENTER

MOTORS
- 5 HP MAIN DRIVE
- 1/8 HP COOLANT PUMP

INCLUDED ACCESSORIES
- STEADY REST
- FOLLOW REST
- THREAD DIAL
- 4-WAY TOOL POST
- 8" 3 JAW CHUCK
- 8" 4 JAW CHUCK
- CHUCK GUARD
- COOLANT SYSTEM
- SINGLE CARRIAGE STOP
- WORK LIGHT
- FULL LENGTH SPLASH GUARD
- FOOT BRAKE
- SERVICE WRENCHES AND SPANNERS

STANDARD FEATURES
- BIG 2" THRU HOLE
- INCH AND METRIC THREADS
- HARDENED AND PRECISION GROUND BEDWAYS
- FORCED LUBRICATION TO THE HEADSTOCK, CARRIAGE
BEDWAYS
- REMOVABLE GAP
- PRECISION (3) BEARING SPINDLE
- T-SLOTTED COMPOUND
- DUAL DIALS- INCH/METRIC
- CROSSFEED AND THREADING SAFETY INTERLOCK

OPTIONS INCLUDED
- TAPER ATTACHMENT INSTALLED
- NEWALL 2-AXIS DIGITAL READOUT INSTALLED
Power: 220 (3-Phase)
