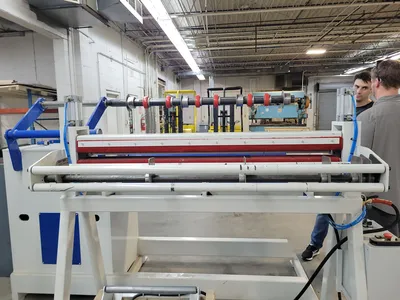

USED 2025 ROPER WHITNEY AUTOKUT

Autokut 160
Maximum Material Width 49.25” / 1250 mm
Minimum Material Width 8” / 200 mm
Maximum Slitting Capacity Mild Steel 16 gauge / 1.6 mm
Slitting Capacity Stainless Steel 20 gauge / 1 mm
Slitting Capacity Aluminum 0.080” / 2 mm
Maximum Blanking Capacity Mild Steel 14 gauge / 2.0 mm
Blanking Capacity Stainless Steel 18 gauge / 1.25mm
Blanking Capacity Aluminum 0.125” / 3 mm
Number of Straightening Rolls 5 (3 over 2)
Minimum Slit Width 2 3/8” / 60 mm
Minimum Edge Trim ¼” / 6.4 mm
Number of Slitting Knives 5
Slitting Speed Variable 115 FPM / 35 MPM
Drive Motor 4 hp / 3 kw
Guillotine Motor 3 hp / 2.2 kw
Machine Weight 4,410 lbs / 2,000 kg
Machine Dimensions L x W x H 74.5 x 65.5 x 46”

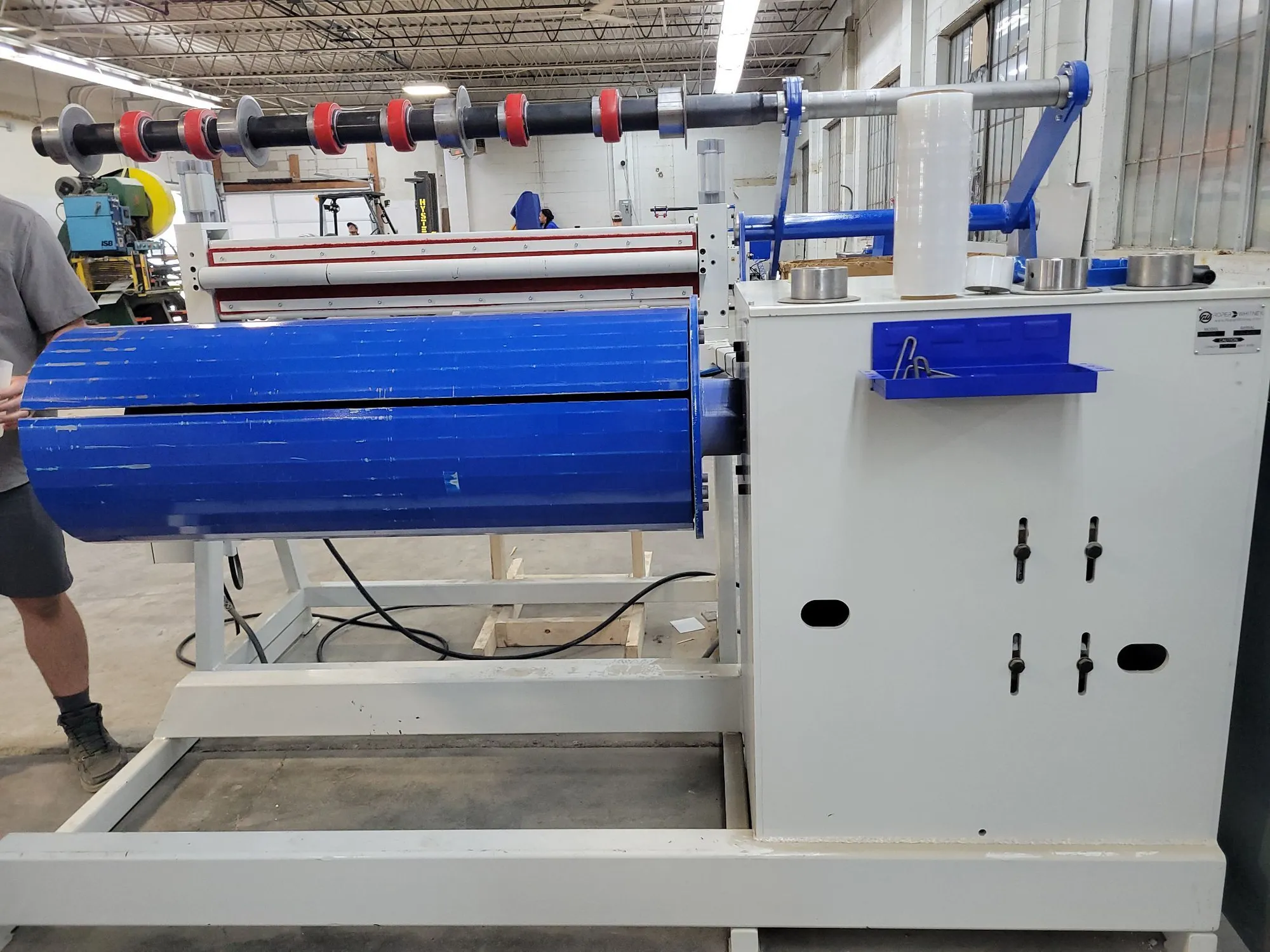

5 ton powered decoiler
Max Coil Weight 11,000 lbs
Max Coil Width 49.25”
Max Coil Outside Diameter 55”
Mandrel Expansion 18” to 21.25”
Extra Expansion No
Mandrel Plates 3
Mandrel Power Hydraulic 2HP
Rotational Power Electric 5.5HP
Feeding Speed 85 fpm
Speed Control Dancing arm
Voltage 230VAC 3 phase – 25 Amps
Dimensions 58” x 104” x 68”
Weight 3,750 lbs
