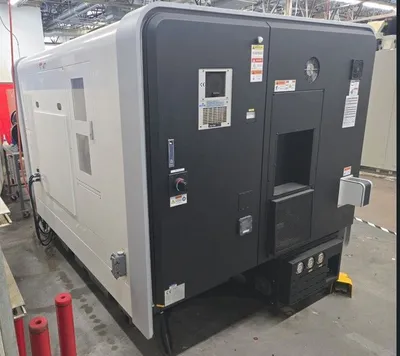

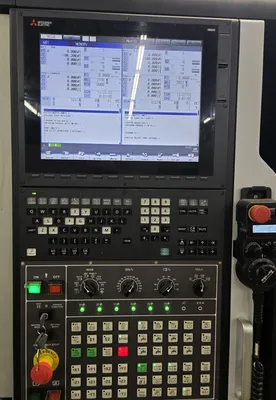

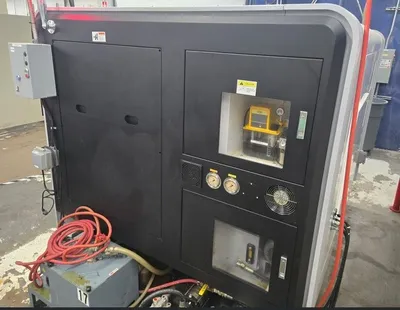

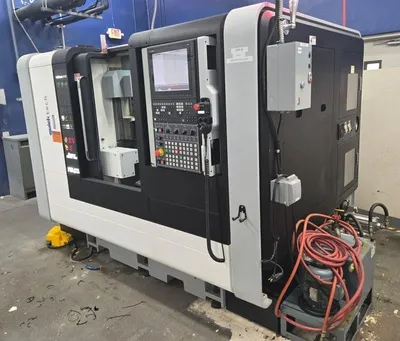

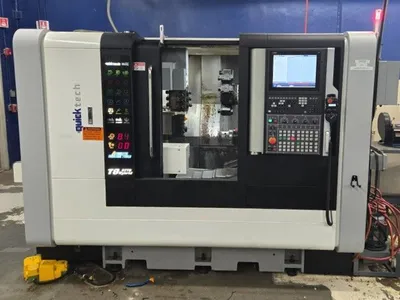

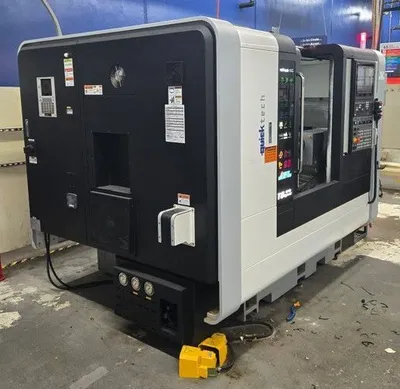

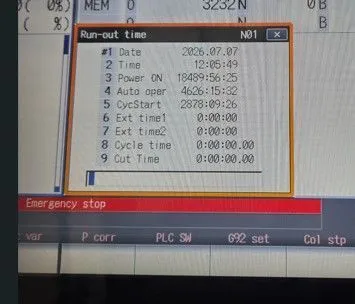

USED 2022 QUICK-TECH T-8-HYBRID

Main Spindle Capacity
Swing over bed 19.7”
Swing over cross slide 11.8”
Maximum bar working capacity 2.56” (65mm)
Maximum turning length 13.8”
Collet Chuck Type DIN KK6-185E60B (60mm)
Spindle nose A2-6
Hole through draw tube 2.6” (66mm)
Spindle speed range (std.) 4000 RPM
Spindle motor 15HP
C axis increment .001 degrees

Sub Spindle Capacity
Maximum bar working capacity 1.65” (42mm)
Maximum turning length 13.2”
Collet Chuck Type DIN KK5-173E/42B (42mm)
Spindle nose A2-5
Hole through draw tube 1.26” (32mm)
Spindle speed range 4000 RPM
Spindle motor 7.5HP Integral motor
C axis increment .001 degrees

Travel and Feed
Maximum cross travel (turret X1 axis) 6.3”
Maximum off center travel (turret Y1 axis) 3.15” (+/- 1.57”)
Maximum longitudinal travel (turret Z1 axis 14.76"
Maximum cross travel (X2 axis) 18.5”
Maximum vertical travel (Y2 axis) 14.76”
Maximum longitudinal travel (Z2 axis) 13.2"
Maximum B axis travel (B1, B2 axes) 360 degrees / .001 degree resolution
X1, X2, Y1, Y2, Z1, Z2, B1, B2 servo motors 2 HP
Ball screw diameter x pitch 1.25” (32mm) x 10mm pitch
Rapid traverse rate 1181”/ min.

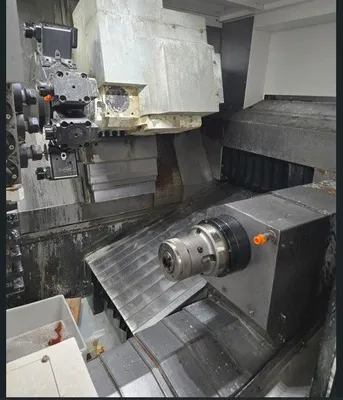

Tooling System (Main)
Tooling type BMT-55 servo turret
Number of tools 12
Number of live tool stations 12
Square shank size 1” (25mm)
Boring bar capacity 1.25” (25mm)
Turret index time .3 secs / station, .5 secs 180 degrees
Live tool spindle motor 5HP
Live tool spindle speed 4000

Tooling System (Sub)
Tooling type Gang Tool / Servo Y axis
Number of turning tools 5 O.D., 9 I.D.
Square shank size .75” (20mm)
Boring bar capacity .75” (ER-20)
B axis 360 degrees
B axis index time .3 secs / 90 degrees, .6 secs 360 degrees
Number of live tools 12
Live tool spindle motor 2HP.
Live tool spindle speed 4000
Live tool shank ER-20 collet

General
Positioning accuracy +/- .0002" full stroke
Repeatability +/- .00015"
Coolant tank capacity 65 gallons
Coolant pump motor 1 HP flood / 3HP high pressure
Machine Weight 13,420 LBS
Floor Space with chip conveyor 135" X 80" x 77"
Machine Power Source 208/220 Volts, 3 Phase 100 Amps**
Hydraulic pump motor 1HP
