Used

USED 2013 DOOSAN VTS 1620

Illinois, United States
166Listings|112Followers
Overview
Vertical Boring Mills (incld VTL)

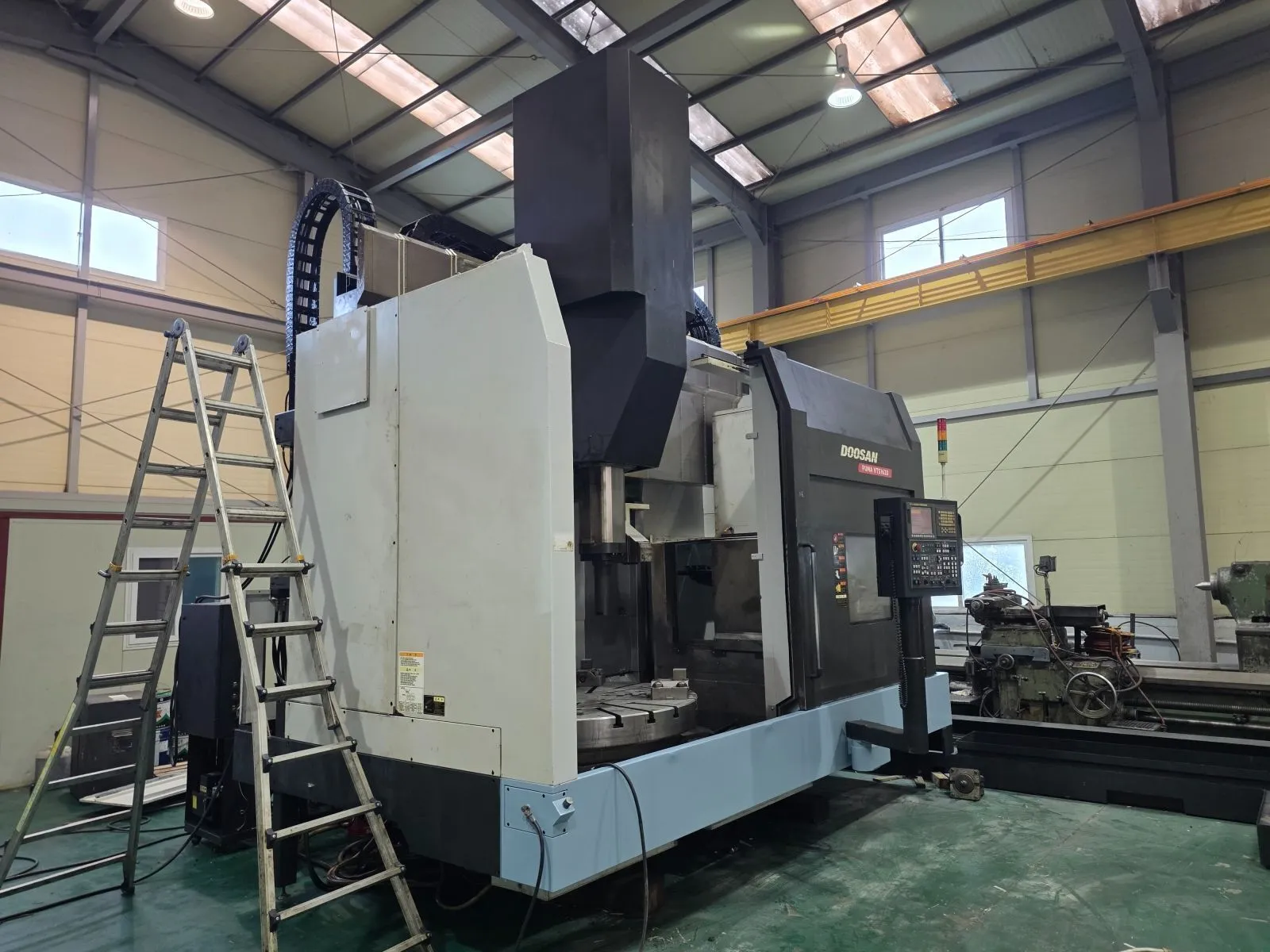

DOOSAN VTS 1620 CNC Vertical Boring Machine, 2013 model. Ideal for precision tasks, this used equipment offers reliable performance from a trusted manufacturer.

Specs
Table Diameter
63"
1,600.2 mm
Table Load Capacity
22,000 lb
9,979 kg
Swing Diameter
78.7"
1,999 mm
Turning Height
62"
1,574.8 mm
Table Speed
250 RPM
250 RPM
Main Motor
60 hp
44.7 kW
Number Of Ranges
2
2
X - Axis Travel
67.9"
1,724.7 mm
Z - Axis Travel
37.4"
949.96 mm
Rapid Traverse Rate - X
472 ipm
Rapid Traverse Rate - Z
472 in/min.
12 m/min.
W - Axis Cross Rail Travel
23.62"
599.95 mm
W - Axis Cross Rail Positions
4
4
Ram Size
9.84" x 12.13"
9.84" x 12.13"
Automatic Tool Changer
18
18
Control
CNC (FANUC SERIES I CNC COLOR CONTROL)
CNC (FANUC SERIES I CNC COLOR CONTROL)
Weight
77000.00
77000.00
Equipped With

FANUC SERIES L CNC COLOR CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
10 TOOL HOLDERS
EMBEDDED ETHERNET FUNCTION
7 PAIRS WORK COORDINATES
TOOL PRESETTER
CHIP CONVEYOR
