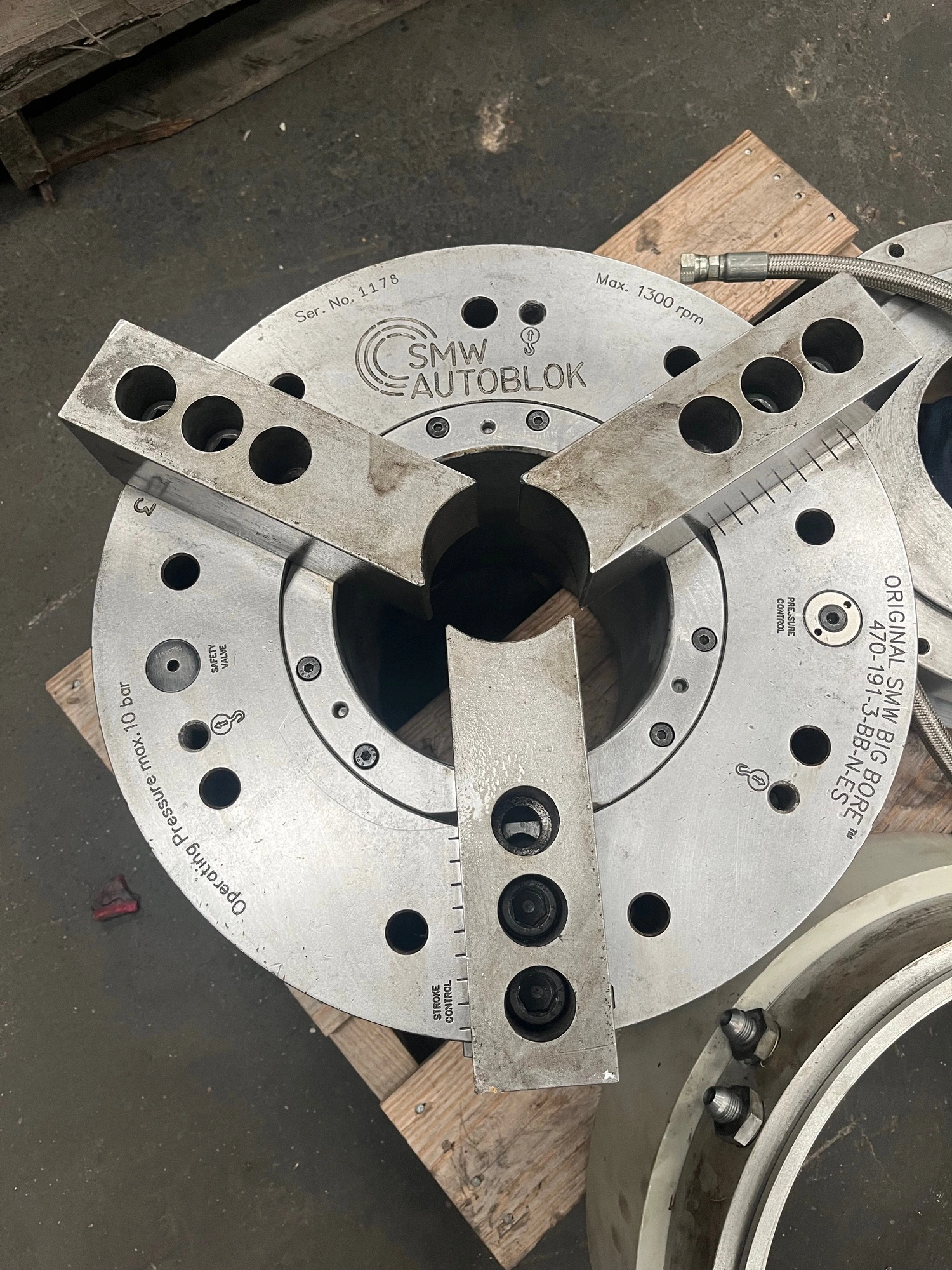

SMW AUTOBLOK AIR CHUCK

Model

BB 470-191-3 BB-N-ES

Chuck diameter

18.5”

Thru hole

7.5”

Spindle nose

flat back

Stroke per jaw

0.66” rapid, 0.33” clamping

Total stroke per jaw

1”

Maximum rpm

1,100 rpm

Included with the chuck: Air
distributor ring.


Price each:

$15,500. FOB Houston, TX.


Condition:

Very good


Delivery:

Stock, our warehouse.


Mounting package:

--We can also supply a full wrap
around distributor ring mounting bracket (DRMB) for a front mounted
chuck or stand-off brackets for a rear mounted chuck.

We also supply adapter plates and can do the complete
installation if required.

SMW Autoblok Extended stroke Oilfield air chuck

BB 470-191-3 BB-N-ES
