USED Chucks

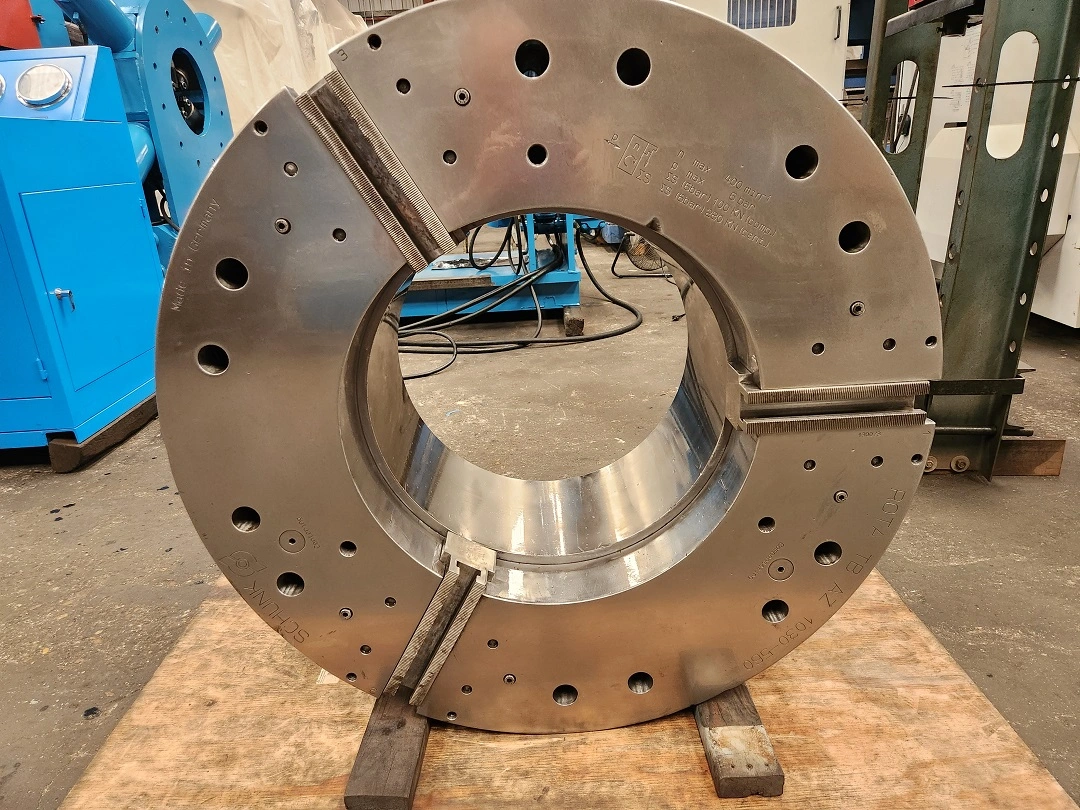

SCHUNK ROTA TB2
1030-560 LH
Air Chuck

Model
TB2 1030-560 LH (ES) Front mount

 Model
TB2 1000-560 LH (ES) Rear mount

Diameter, O.D.
39.4” (1000 mm.)

Diameter, I.D.
22” (560 mm.)

Spindle back
Z700 (flat back)

Jaw serrations
3/32 x 90

Jaw stroke, total
1” (25.4 mm)

Jaw stroke, rapid
3/5” (15 mm)

Jaw stroke, clamping
1/5” (10 mm)

Maximum clamping force
90 psi (6 bar) = 54,000 lbs. (240 kN)

Maximum rotational speed  500
rpm

Weight
2,200 lbs.

Price
:
$ 110,000. PAIR.

Delivery: Stock, Houston, TX.

** PAIR
:
The compensating/self-centering chuck Rota 1030-560

is front mounted.  The
self-centering chuck Rota 1000-560 is rear

mounted.

Condition: Good. Air tested in both
the open and closed position.

Upon disassembly and reassembly,
0-rings replaced as required,

cleaned and regreased.

SCHUNK ROTA TB2
1030-560 LH
Air Chuck

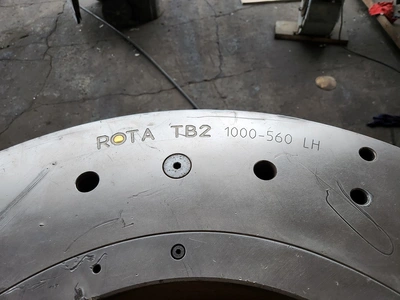

Schunk TB2 1000-560 LH
